Bosch PSR 12 VE-2

Bosch PSR 12 VE-2 screwdriver: exploded parts diagram, 1 sheet, 23 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSR 12 VE-2: 23 positions on 1 sheet

Bosch PSR 12 VE-2 parts list (1 sheet)

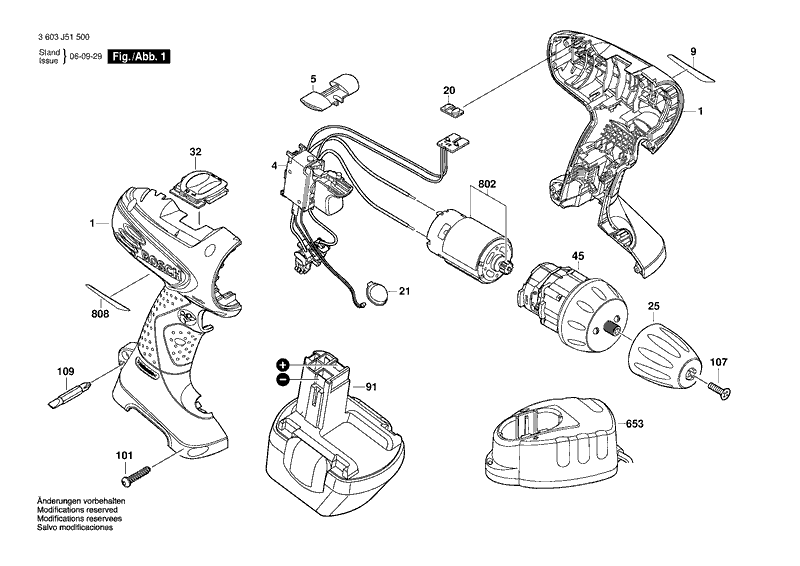

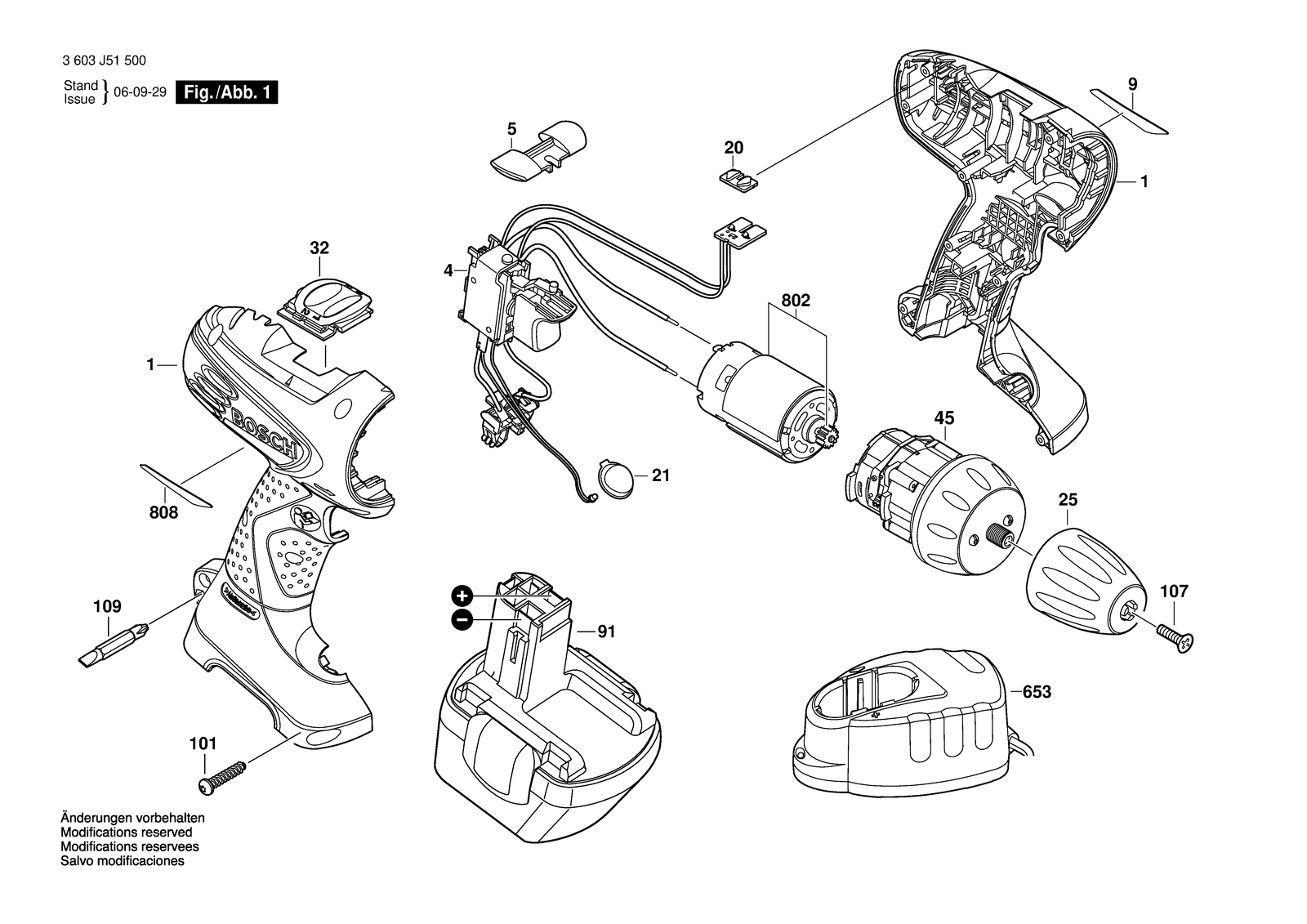

Bosch PSR 12 VE-2 parts diagram, sheet 1
No.Part numberPart name
12609100508Housing
1012609110201Torx Flat-Head Screw 3X16
1072609110721Countersunk-Head Screw M5X20
1092609160063Screwdriver Bit
202609100257Lens Plexiglass 8N
212609100513Lens
252609110668Keyless Chuck
322609199124Change-Over Switch
42609120270On-Off Switch
452606200166Gear Box
52601099096Adjusting Slide Red
6532607224391Fast Charger EU 230/7,2-14,4V, 1H
6532607224393Fast Charger GB 230/7,2-14,4V, 1H
6532607224705Fast Charger AUS 240/7,2-14,4V, 30 Min.
6532607224711Fast Charger J 100/7,2-14,4V, 30 Min.
6532607225011Fast Charger EU 230/14,4V, 3-5H
8022609199137DC motor 12V
8082609131341Nameplate
8082609131343Type Label
8082609131345Type Label
92609131356Manufacturer's nameplate PSR 12-2
92609131466Manufacturer's nameplate PSR 12 Ve
911617S00N7FSlide-In Accu Package 12V, 1,5AH, Nicd
