Bosch PSR 12

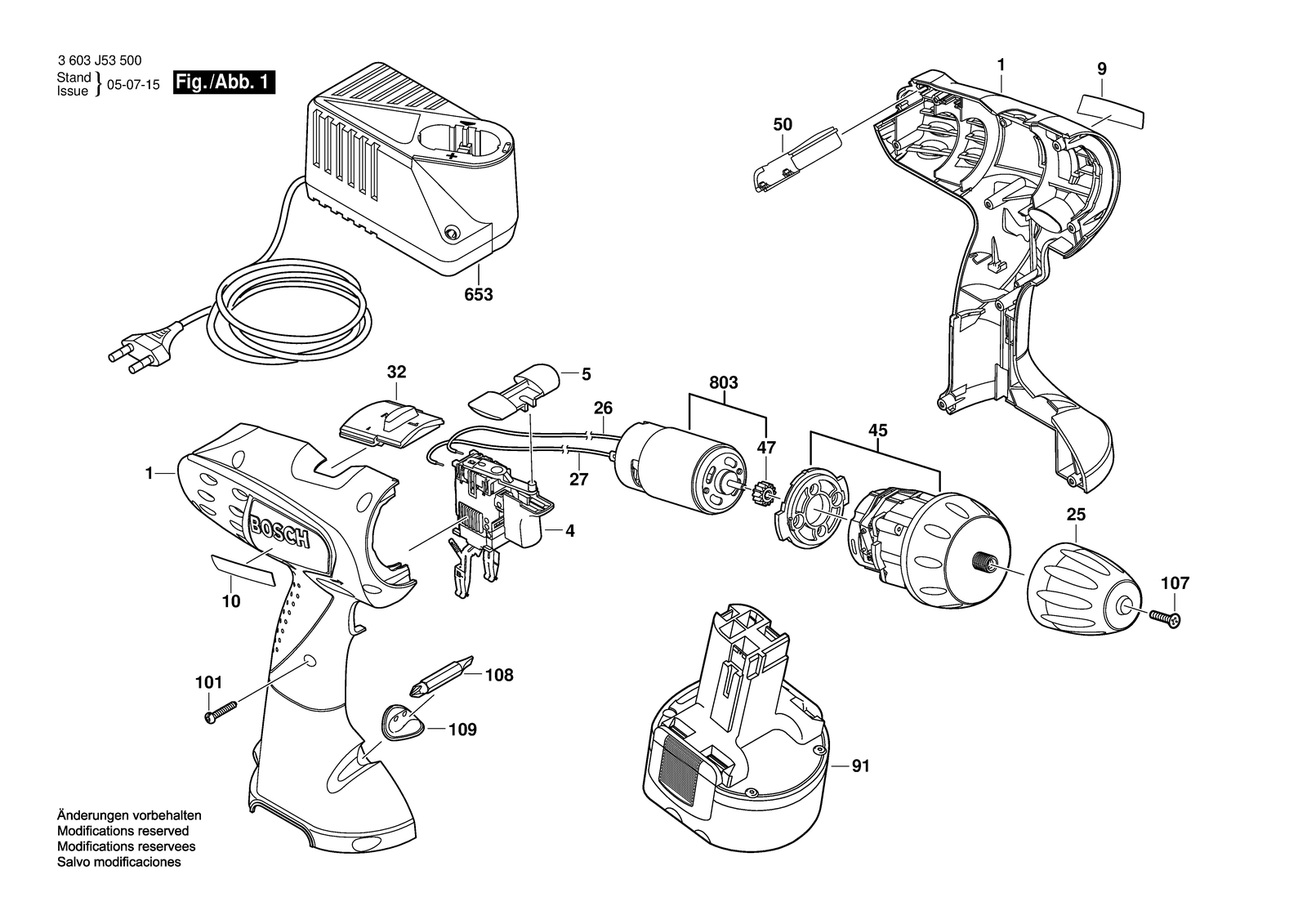

Bosch PSR 12 screwdriver: exploded parts diagram, 1 sheet, 20 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSR 12: 20 positions on 1 sheet
Bosch PSR 12 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609100205 | Housing Red |
| 10 | 2609131048 | Nameplate |
| 101 | 2609110201 | Torx Flat-Head Screw 3X16 |
| 107 | 2609110721 | Countersunk-Head Screw M5X20 |
| 108 | 2607001443 | Toolholder |
| 109 | 2609160063 | Screwdriver Bit |
| 25 | 2608572197 | Keyless Chuck |
| 26 | 2609120086 | Connecting Cable |
| 27 | 2609120108 | Connecting Cable |
| 32 | 2608040212 | Servo Unit |
| 4 | 2607200474 | On-Off Switch |
| 45 | 2606200166 | Gear Box |
| 47 | 2606316161 | Pinion Z=12 |
| 5 | 2601099096 | Adjusting Slide Red |
| 50 | 2608005095 | Covering hood |
| 653 | 2607224391 | Fast Charger EU 230/7,2-14,4V, 1H |
| 653 | 2607224701 | Fast Charger EU 230/7,2-14,4V, 30 Min. |
| 803 | 2609120106 | DC motor 12V |
| 9 | 2609130829 | Reference Plate |
| 91 | 1617S00N7F | Slide-In Accu Package 12V, 1,5AH, Nicd |
