Bosch PSR 12

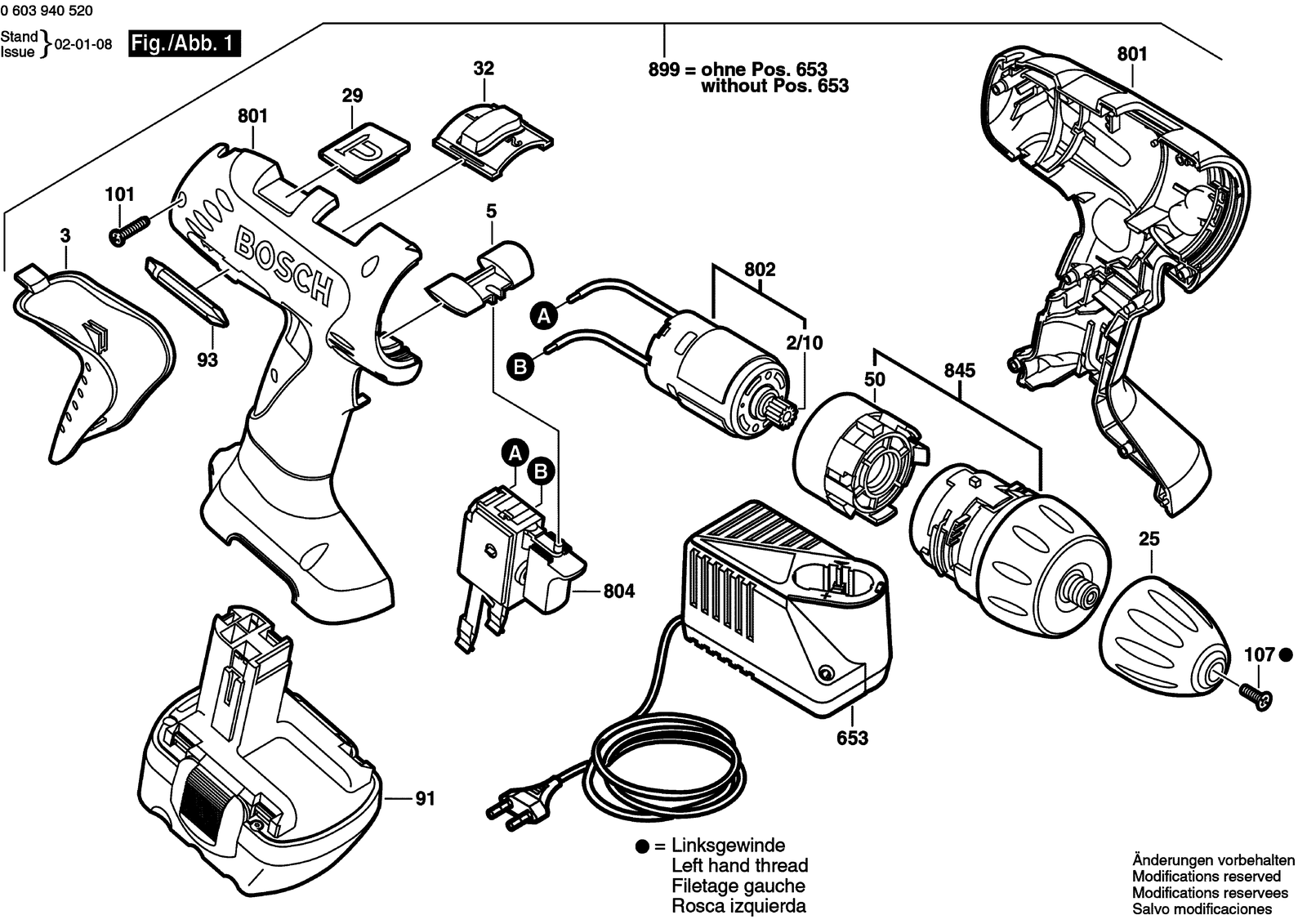

Bosch PSR 12 cordless screw driver: exploded parts diagram, 1 sheet, 48 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSR 12: 48 positions on 1 sheet
Bosch PSR 12 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 107 | 2603421229 | Countersunk-Head Screw Lefthand Threads M6X23 |
| 2/10 | 2606316190 | Pinion |
| 2/10 | 2606316190 | Pinion |
| 25 | 2608572225 | Keyless Chuck |
| 25 | 2608572225 | Keyless Chuck |
| 29 | 2600290043 | Magnet Disk |
| 29 | 2600290043 | Magnet Disk |
| 3 | 2608040154 | Handle Cover |
| 3 | 2608040154 | Handle Cover |
| 32 | 2601099098 | Adjusting Slide |
| 32 | 2601099098 | Adjusting Slide |
| 5 | 2601099096 | Adjusting Slide Red |
| 5 | 2601099096 | Adjusting Slide Red |
| 50 | 2605719031 | Intermediate Flange |
| 50 | 2605719031 | Intermediate Flange |
| 653 | 2607224393 | Fast Charger GB 230/7,2-14,4V, 1H |
| 653 | 2607224395 | Fast Charger AUS 240/7,2-14,4V, 1H |
| 653 | 2607224397 | Fast Charger USA 120/7,2-14,4V, 1H |
| 653 | 2607224401 | Fast Charger ROK 220/7,2-14,4V, 1H |
| 653 | 2607224425 | Fast Charger EU 230/7,2-24V, 1H |
| 653 | 2607224435 | Fast Charger J 100/7,2-24V, 1H |
| 653 | 2607224687 | Fast Charger AR 230/7,2-14,4V, 1H |
| 653 | 2607224393 | Fast Charger GB 230/7,2-14,4V, 1H |
| 653 | 2607224395 | Fast Charger AUS 240/7,2-14,4V, 1H |
| 653 | 2607224397 | Fast Charger USA 120/7,2-14,4V, 1H |
| 653 | 2607224401 | Fast Charger ROK 220/7,2-14,4V, 1H |
| 653 | 2607224425 | Fast Charger EU 230/7,2-24V, 1H |
| 653 | 2607224435 | Fast Charger J 100/7,2-24V, 1H |
| 653 | 2607224687 | Fast Charger AR 230/7,2-14,4V, 1H |
| 801 | 2605104815 | Housing Section Green |
| 801 | 2605104815 | Housing Section Green |
| 802 | 2607022986 | DC motor 12V |
| 802 | 2607022856 | DC motor 12V |
| 804 | 2607200353 | On-Off Switch |
| 804 | 2607200353 | On-Off Switch |
| 845 | 2606200919 | Planetary Gear Train |
| 845 | 2606200919 | Planetary Gear Train |
| 899 | 2607020350 | Cordless Screw Driver 12V |
| 899 | 2607020350 | Cordless Screw Driver 12V |
| 91 | 2607335273 | Slide-In Accu Package 12V, 1,2AH, Nicd |
| 91 | 2607335697 | Slide-In Accu Package 12V,2,0AH,NIMH |
| 91 | 2607335273 | Slide-In Accu Package 12V, 1,2AH, Nicd |
| 91 | 2607335697 | Slide-In Accu Package 12V,2,0AH,NIMH |
| 93 | 1609200147 | Screwdriver Blade 6 MM |
| 93 | 1609200147 | Screwdriver Blade 6 MM |
