Bosch PSP 260

Bosch PSP 260 spray gun: exploded parts diagram, 2 sheets, 49 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSP 260: 49 positions on 2 sheets

Bosch PSP 260 parts list (2 sheets)

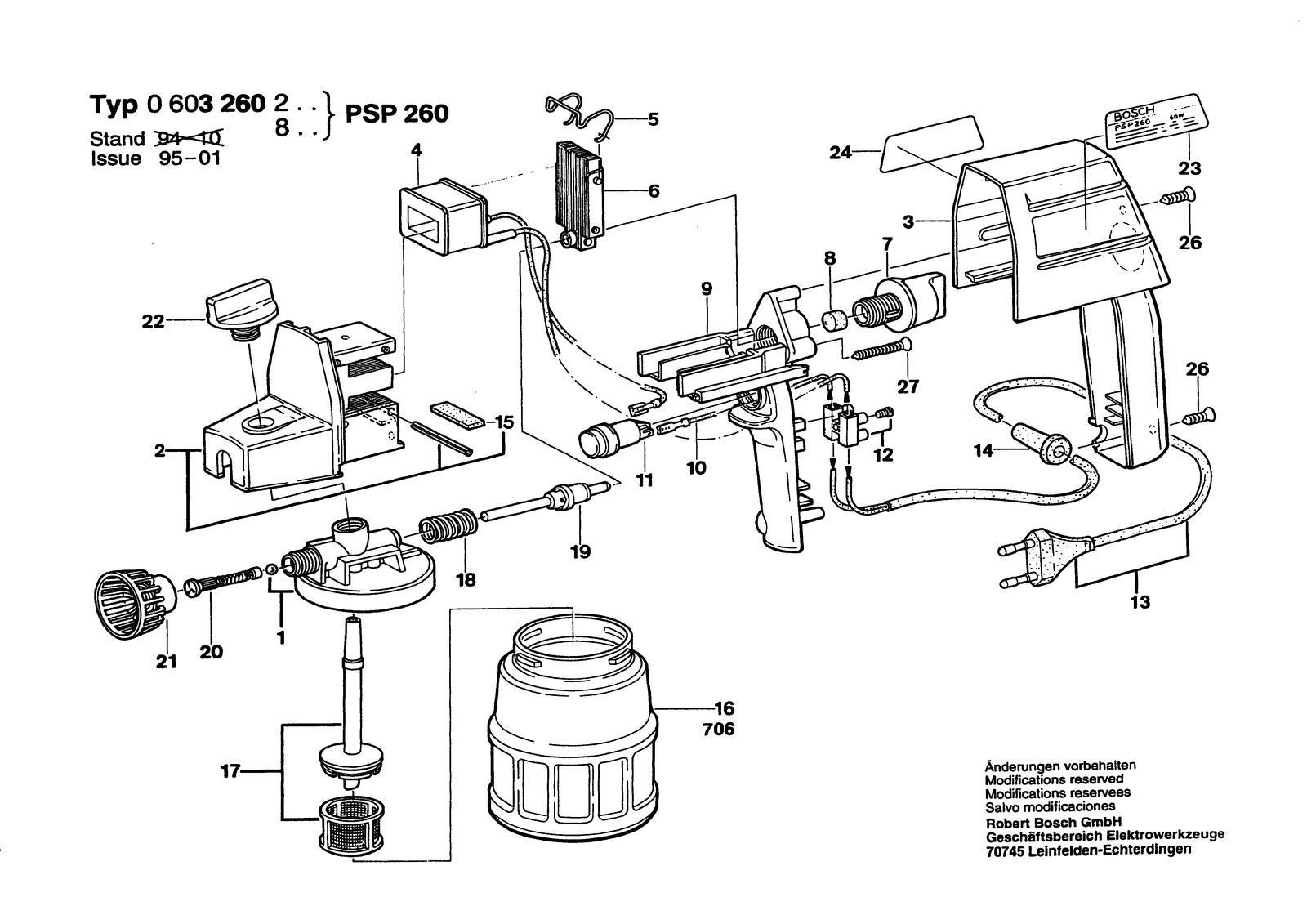

Bosch PSP 260 parts diagram, sheet 1Bosch PSP 260 parts diagram, sheet 2
No.Part numberPart name
11609390348Compression Spring
11609390543Pump Housing
101609390360Cable
111609390544On-Off Switch
121609390042Connecting terminal 2-POLE
131609390043Power supply cord
131609390227Elec. Cable W/Connection
131609390562Power supply cord
141609390048Grommet
151609390353Rubber Buffer
161609390040Paint Beaker
161609390460Paint Beaker
171609390209Suction Pipe
181609390348Compression Spring
191609390464Pump piston
21609390462Motor Cradle
201609390035Vacuum/Pressure Valve
201609390465Vacuum/Pressure Valve
211609390541Cylindrical-Spray Nozzle Ø 0,6 MM
221609390350Wing Screw
231601110233Sticker
241601110232Nameplate
241601110234Nameplate
241601110235Nameplate
241601110236Nameplate
262910601119Tapping Screw DIN 7972-BZ3,9X16
271609390351Socket head cap screw
31609390354Housing Cover Blue
31609390551Housing Cover Green
41609390463Current Coil 230V
41609390466Current Coil 115V
41609390467Current Coil 240V
51609390032Holding Spring
61609390344Oscillating Armature
6501609200248Paint Container
71609390345Adjusting Screw
7001609390540Cylindrical-Spray Nozzle Ø 0,4 MM
7011609390542Cylindrical-Spray Nozzle Ø 0,8 MM
7021609390021Nozzle Extension
7031609390022Pencil-Spray Nozzle
7031609390357Pencil-Spray Nozzle
7041609390358Flat-Spray Nozzle FD 5
7051609390359Flat-Spray Nozzle FD 7
7061609390458Paint Beaker
7071609390459RSV Cap
7081607000167Mounting piece
7091609390045Strainer
81609390346Rubber Buffer
91609390347Handle
