Bosch PSP 250 spray gun: exploded parts diagram, 1 sheet, 42 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSP 250: 42 positions on 1 sheet

Bosch PSP 250 parts list (1 sheet)

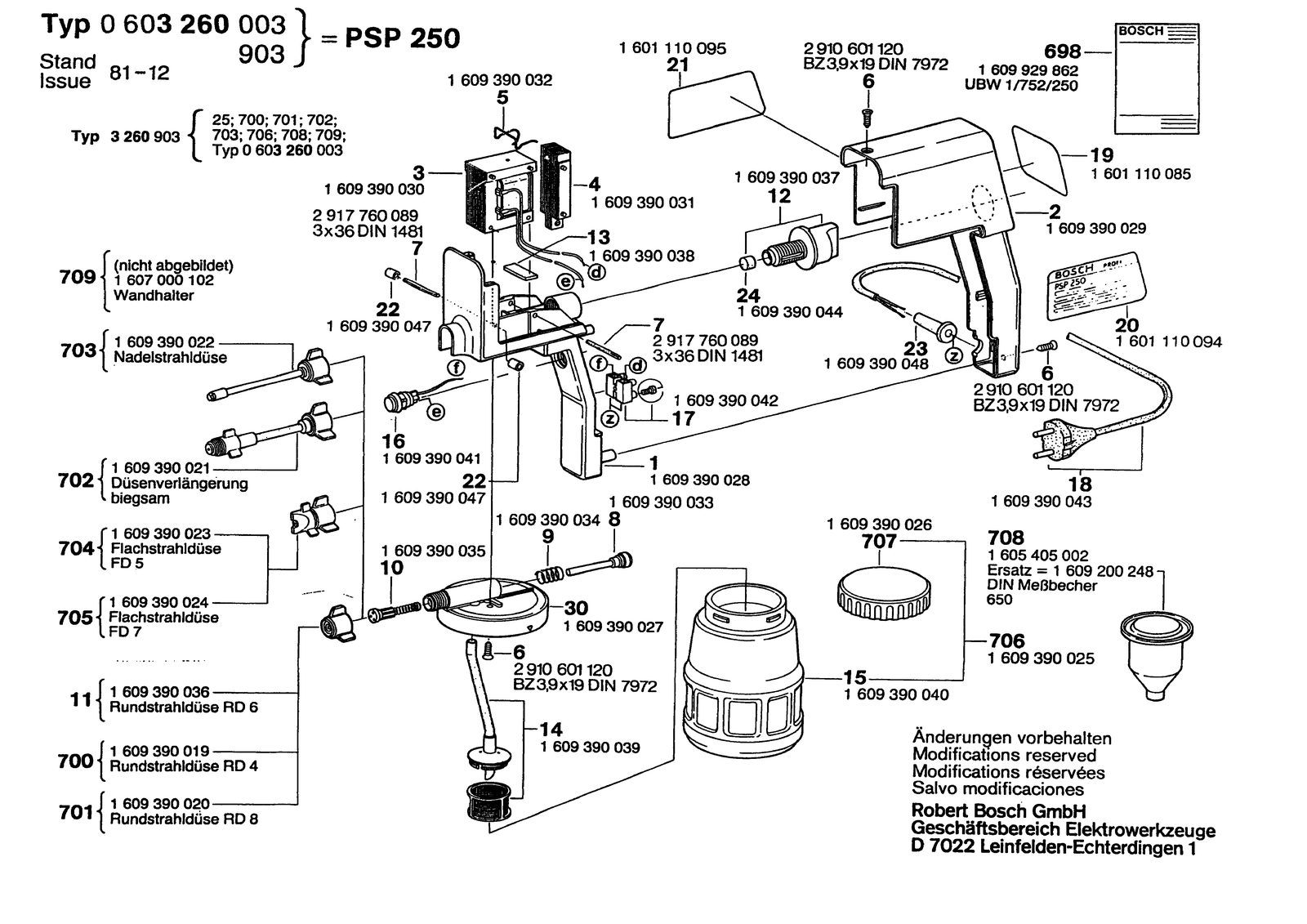

Bosch PSP 250 parts diagram, sheet 1
No.Part numberPart name
11609390028Handle
11609390210Handle
101609390035Vacuum/Pressure Valve
111609390541Cylindrical-Spray Nozzle Ø 0,6 MM
121609390037Adjusting Screw
131609390038Rubber Buffer
141609390039Suction Pipe
141609390209Suction Pipe
151609390040Paint Beaker
161609390041On-Off Switch
161609390205On-Off Switch
171609390042Connecting terminal 2-POLE
181609390043Power supply cord
181609390562Power supply cord
21609390029Housing Cover Green
21609390204Housing Cover Blue
201601110094Sticker
211601110095Sticker
221609390047Protective Cap
231609390048Grommet
241609390044Rubber Buffer
31609390030Oscill. Armature Magnet
31609390212Oscill. Armature Magnet
301609390027Pump Housing
301609390211Pump Housing
41609390031Oscillating Armature
51609390032Holding Spring
62910601120Tapping Screw BZ 3,9X19 DIN 7972
72917760089Slotted Spring Pin 3X36 DIN 1481
7001609390206Cylindrical-Spray Nozzle Ø 0,4 MM
7001609390540Cylindrical-Spray Nozzle Ø 0,4 MM
7011609390542Cylindrical-Spray Nozzle Ø 0,8 MM
7021609390021Nozzle Extension
7031609390022Pencil-Spray Nozzle
7041609390358Flat-Spray Nozzle FD 5
7051609390359Flat-Spray Nozzle FD 7
7061609390025Paint Beaker
7071609390026RSV Cap
7081609390045Strainer
7091607000167Mounting piece
81609390033Pump piston
91609390034Compression Spring
