Bosch PSM 160 A

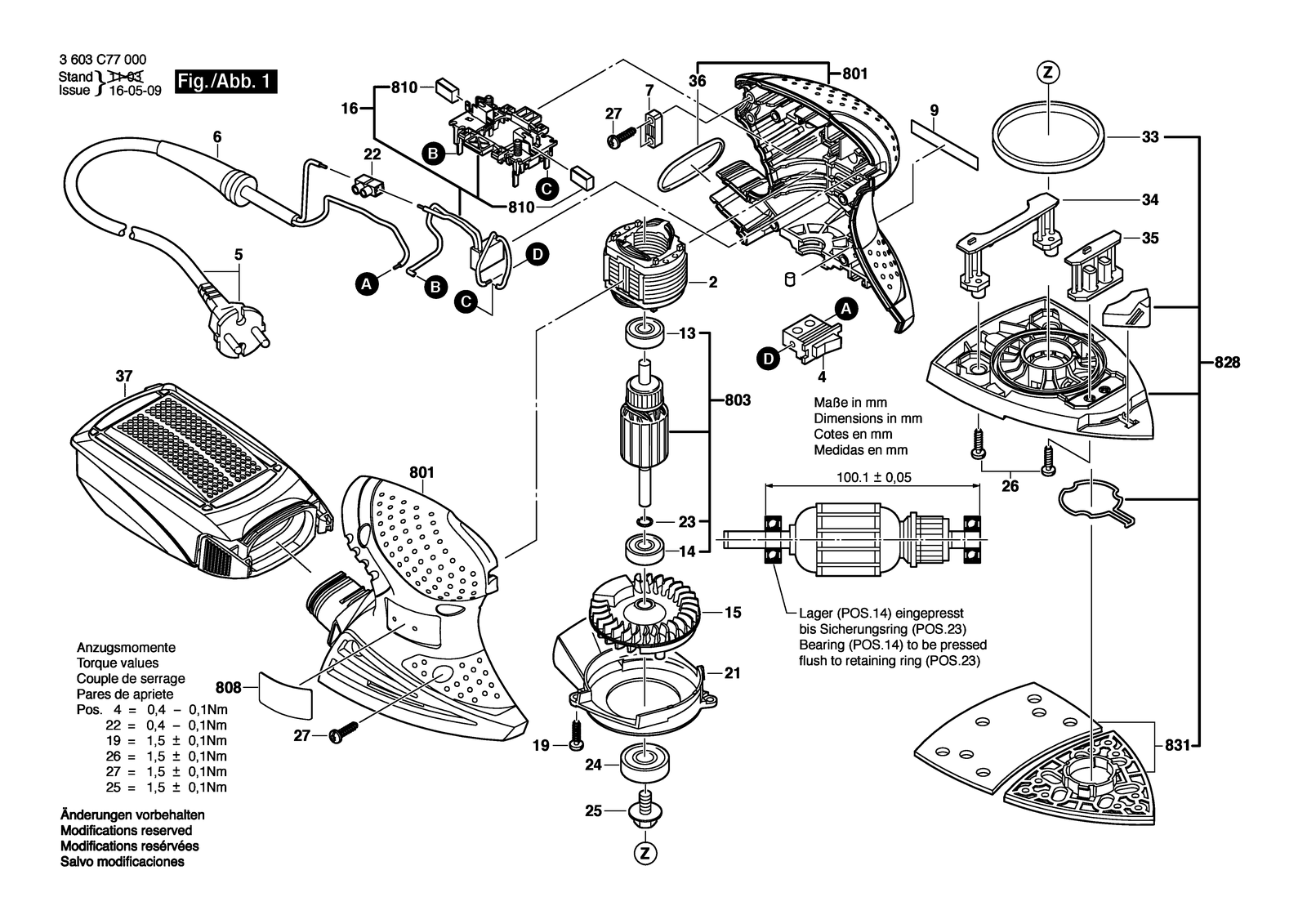

Bosch PSM 160 A orbital sander: exploded parts diagram, 1 sheet, 79 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSM 160 A: 79 positions on 1 sheet
Bosch PSM 160 A parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | 2600905078 | Groove ball bearing |
| 13 | 2600905078 | Groove ball bearing |
| 14 | 2600905078 | Groove ball bearing |
| 14 | 2600905078 | Groove ball bearing |
| 15 | 2609000013 | Fan |
| 15 | 2609000013 | Fan |
| 16 | 2609000032 | Brush Holder |
| 16 | 2609000032 | Brush Holder |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220696 | Field 230-240V |
| 2 | 2604220712 | Field 100V |
| 2 | 2604220712 | Field 100V |
| 2 | 2609001806 | Field "japan" 230-240V |
| 21 | 2609001815 | Housing Black |
| 21 | 2609001815 | Housing Black |
| 22 | 2609000082 | Socket-Terminal Strip |
| 22 | 2609000082 | Socket-Terminal Strip |
| 23 | 2916540005 | Retaining ring DIN 7993-A8 |
| 23 | 2916540005 | Retaining ring DIN 7993-A8 |
| 24 | 2600905045 | Groove ball bearing 12X28X8 |
| 24 | 2600905045 | Groove ball bearing 12X28X8 |
| 25 | 2610918116 | Torx Oval-Head Screw |
| 25 | 2610918116 | Torx Oval-Head Screw |
| 26 | 2603490022 | Screw 4X16 |
| 26 | 2603490022 | Screw 4X16 |
| 27 | 2603490022 | Screw 4X16 |
| 27 | 2603490022 | Screw 4X16 |
| 33 | 2609000015 | Felt Strip |
| 33 | 2609000015 | Felt Strip |
| 34 | 2609000017 | Oscillation Insert |
| 34 | 2609000017 | Oscillation Insert |
| 35 | 2609000018 | Oscillation Insert |
| 35 | 2609000018 | Oscillation Insert |
| 36 | 2609001761 | O-Ring 37,0X2,0 MM |
| 36 | 2609001761 | O-Ring 37,0X2,0 MM |
| 37 | 2609001542 | Dust container |
| 37 | 2609001542 | Dust container |
| 4 | 1607200202 | Switch |
| 4 | 1607200202 | Switch |
| 5 | 1604460295 | Power supply cord |
| 5 | 1604460296 | Power supply cord GB 220V 2,65M 2 X 0,75MM H05 W-f |
| 5 | 1604460304 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 1604460305 | Power supply cord AUS 2,70M 2 X 0,75MM H05 Vv-F |
| 5 | 1604460295 | Power supply cord |
| 5 | 1604460296 | Power supply cord GB 220V 2,65M 2 X 0,75MM H05 W-f |
| 5 | 1604460304 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 1604460305 | Power supply cord AUS 2,70M 2 X 0,75MM H05 Vv-F |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 6 | 2609002019 | Grommet |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 6 | 2609002019 | Grommet |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 801 | 2609000128 | Housing Section |
| 801 | 2609000128 | Housing Section |
| 803 | 2609000129 | Armature 230-240V |
| 803 | 2609000427 | Armature 100V |
| 803 | 2609000427 | Armature 100V |
| 803 | 2609001826 | Armature 230-240V |
| 808 | 2609000111 | Nameplate |
| 808 | 2609000126 | Nameplate |
| 808 | 2609000252 | Nameplate |
| 808 | 2609000422 | Nameplate |
| 808 | 160111A2WM | Nameplate |
| 808 | 2609001829 | Nameplate |
| 808 | 2609001830 | Nameplate |
| 808 | 2609002081 | Nameplate |
| 810 | 2610391290 | Carbon-Brush Set |
| 810 | 2610391290 | Carbon-Brush Set |
| 828 | 2609001000 | Sander Plate |
| 828 | 2609001000 | Sander Plate |
| 831 | 2609000120 | Swivel Plate |
| 831 | 2609000120 | Swivel Plate |
| 9 | 2609000110 | Manufacturer's nameplate PSM 160 A |
| 9 | 2609000110 | Manufacturer's nameplate PSM 160 A |
| 9 | 2609002082 | Manufacturer's nameplate PSM 160A |
