Bosch PSM 100 A

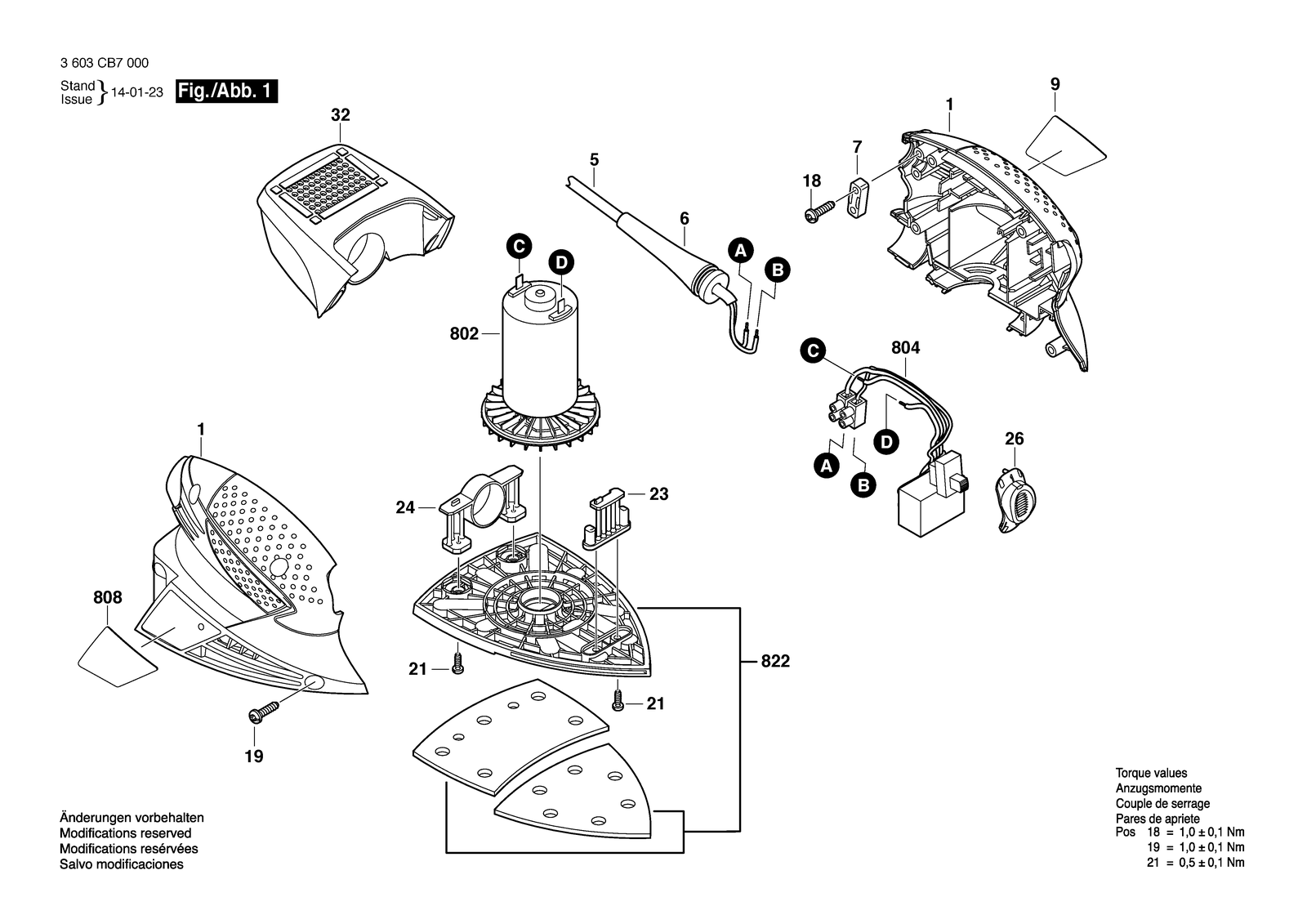

Bosch PSM 100 A orbital sander: exploded parts diagram, 1 sheet, 18 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSM 100 A: 18 positions on 1 sheet
Bosch PSM 100 A parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609001234 | Housing |
| 18 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 21 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 23 | 2609001421 | Oscillation Insert |
| 24 | 2609001650 | Vibration Foot |
| 26 | 2609001237 | Slide Button |
| 32 | 2609001238 | Dust container |
| 5 | 1604460260 | Power supply cord GB 230V 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460260 | Power supply cord EU 2,7M 2 X 0,75MM H05 Vv-F |
| 6 | 2609002019 | Grommet |
| 7 | 2601035004 | Cable Clip |
| 802 | 2609001935 | DC motor |
| 804 | 2609001936 | Switch |
| 808 | 160111A2WH | Nameplate |
| 808 | 160111A2WK | Nameplate |
| 822 | 2609001937 | Sander Plate |
| 9 | 160111C03E | Manufacturer's nameplate PSM 100 A |
