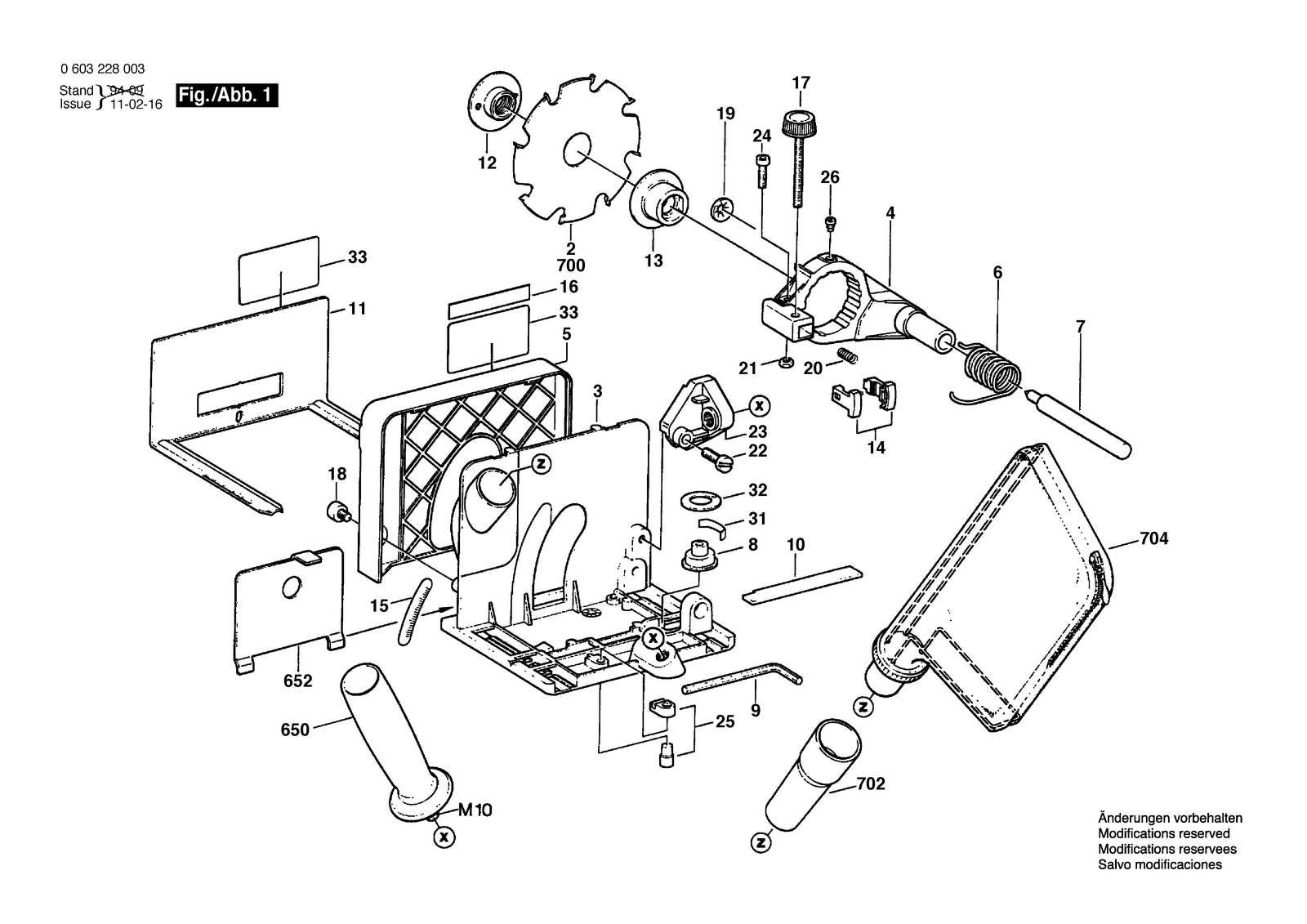

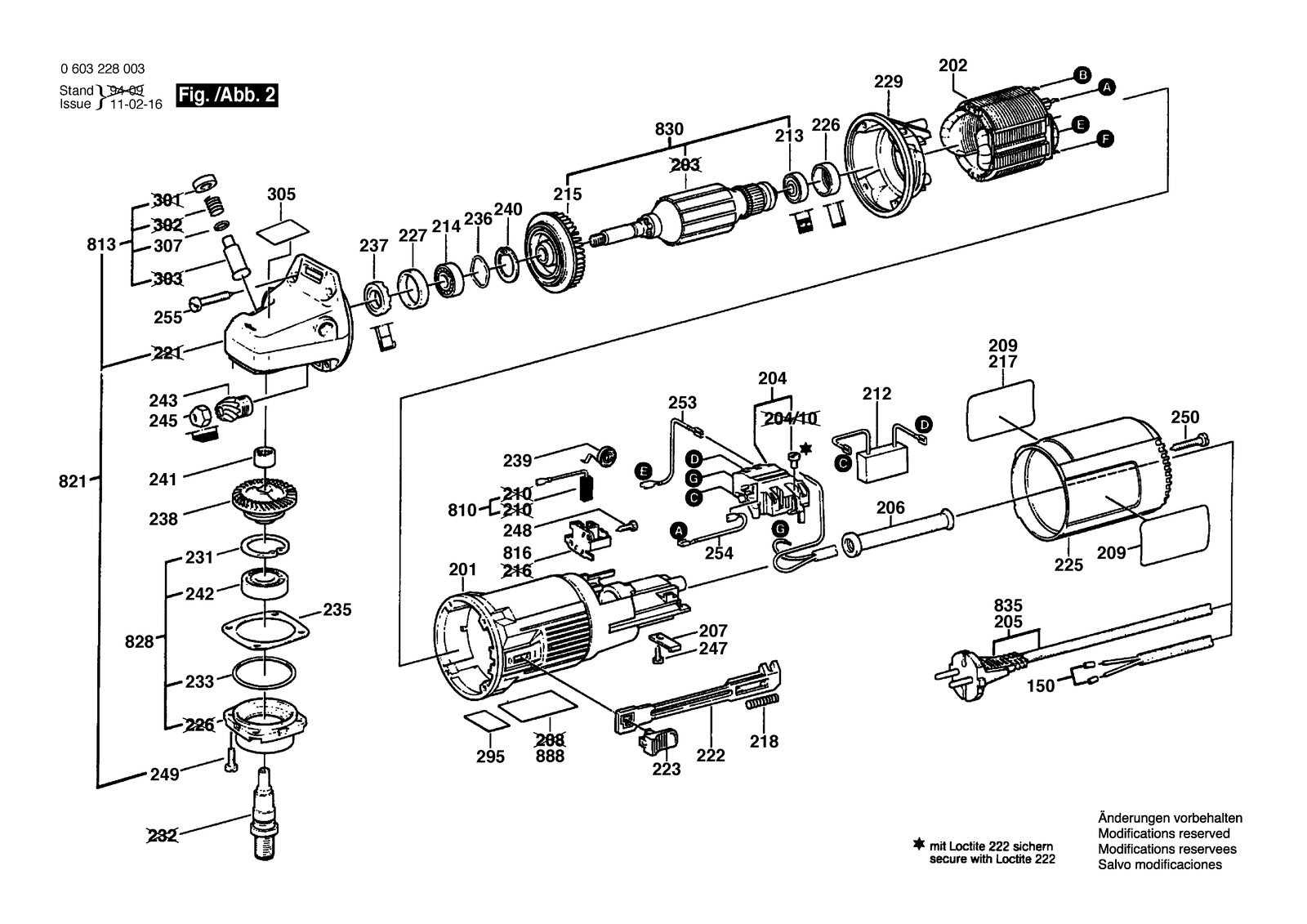

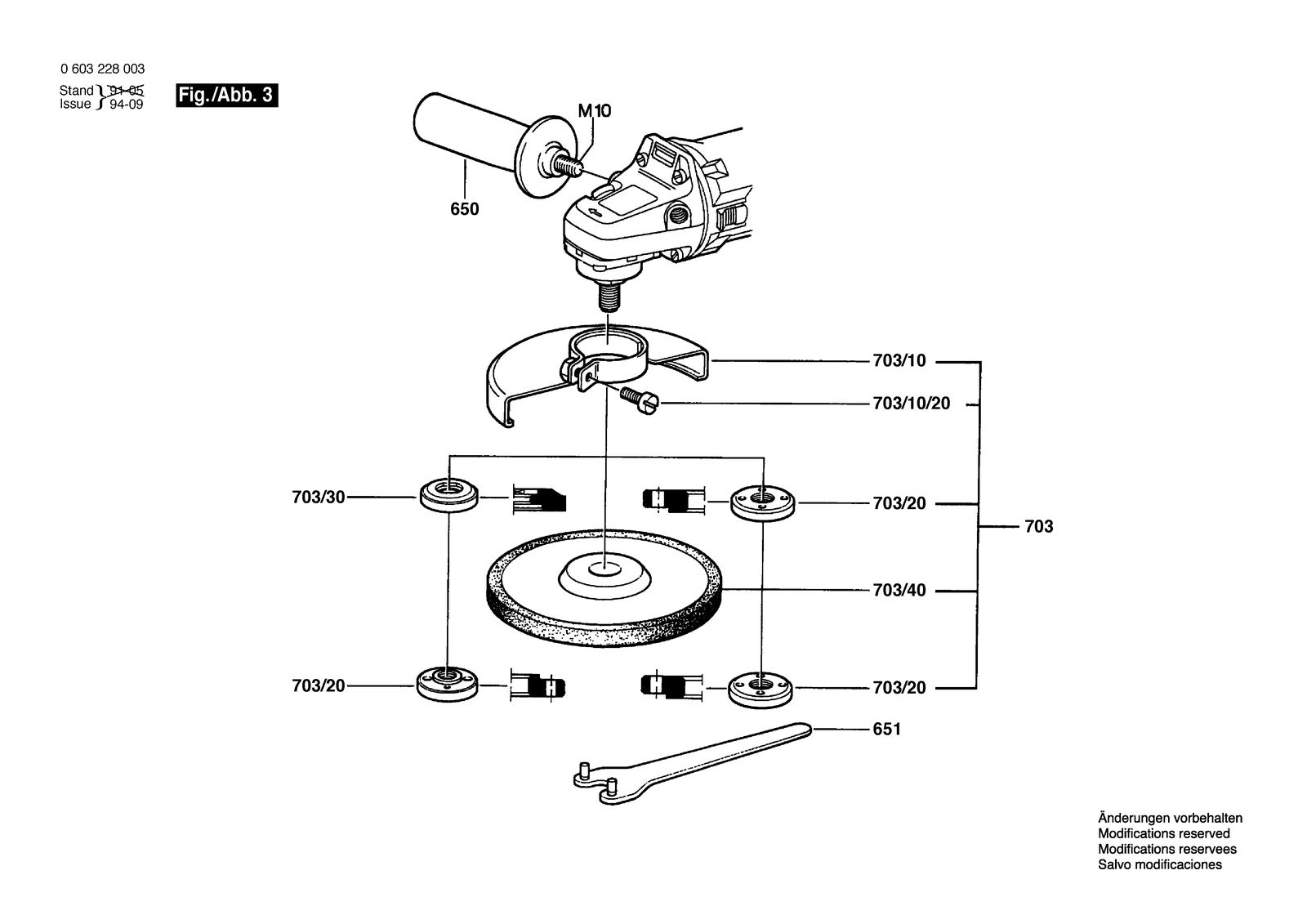

Bosch PSF 22 false joint cutter: exploded parts diagram, 3 sheets, 107 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSF 22: 107 positions on 3 sheets
Bosch PSF 22 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 3601000002 | Thrust Member |
| 11 | 3601329004 | Parallel-Guide |
| 12 | 3603340009 | Round Nut M14 |
| 13 | 3600328032 | Clamping-Flange |
| 14 | 2602305045 | Detent Pin |
| 15 | 3601119024 | Sticker |
| 150 | 3604477008 | End Splice |
| 16 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 17 | 3603490008 | Knurled Thumbscrew |
| 18 | 2914455059 | Thread-forming tap. Screw DIN 7500-M5X14MM |
| 19 | 2916080007 | Locking washer DIN 6799-4-FST |
| 20 | 3604611018 | Compression Spring |
| 201 | 1605108127 | Motor Housing Green |
| 202 | 1604220224 | Field 230-240V |
| 202 | 1604220225 | Field 100V |
| 202 | 1604220227 | Field 240V |
| 204 | 1607200086 | On-Off Switch |
| 205 | 1604460034 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 205 | 1604460147 | Power supply cord |
| 205 | 1604460148 | Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F |
| 205 | 1604460149 | Power supply cord J 2,5M 2 X 1,25MM Pvc |
| 205 | 1604460150 | Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F |
| 205 | 1604460152 | Power supply cord I 2,65M 2 X 1,0MM H05VV-F |
| 206 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 206 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 206 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 207 | 1601302017 | Fastening Clamp |
| 209 | 1601110480 | Manufacturer's nameplate |
| 21 | 2915011006 | Hex Nut DIN 934-M 5-M-8 |
| 212 | 2607329124 | Suppression Filter |
| 213 | 2600905032 | Ball Bearing 7X19X6 |
| 214 | 1600905011 | Groove ball bearing 8X22X7 |
| 215 | 1606610121 | Fan |
| 217 | 1601110479 | Manufacturer's nameplate |
| 218 | 1604611026 | Compression Spring |
| 22 | 2910095201 | Pan head screw DIN 85-M6X20-4.8 |
| 222 | 1602319002 | Adjusting Slide |
| 223 | 1602026057 | Switch Handle Black |
| 225 | 1600508005 | Housing Cover Green |
| 226 | 1600502020 | Rubber Bushing |
| 227 | 1600206025 | Rubber Ring |
| 229 | 1601328005 | Air-Deflector Ring |
| 23 | 3602380000 | Carrier Bracket |
| 231 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 233 | 3600210124 | O-Ring Red 46,0X1,1 MM |
| 235 | 1600136010 | Shim Thick 0,2 MM |
| 235 | 1600136011 | Shim Thick 0,3 MM |
| 235 | 1600136012 | Shim Thick 0,1 MM |
| 236 | 1600150011 | Spring Washer |
| 237 | 1600290016 | Rotary shaft lip seal |
| 238 | 1606333601 | Crown Gear Z=36 |
| 239 | 1604652013 | Spiral Spring |
| 24 | 2910141154 | Hex Socket Head Cap Screw DIN 912-M5X12-8.8 |
| 240 | 2916660009 | Spring retaining ring DIN 472-25X1,2MM |
| 241 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 242 | 1600905006 | Groove ball bearing 12X32X10 |
| 243 | 1606333242 | Bevel Gear Z=11 |
| 245 | 1603300016 | Hex Nut M7, SW10 |
| 247 | 2910211018 | Tapping Screw DIN 7971-ST3,9X13-F |
| 248 | 1613435034 | Lens Head Screw 3X10 St |
| 249 | 1603435026 | Thread-forming tap. Screw |
| 25 | 3602012000 | Support clamp |
| 250 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 253 | 1604448005 | Connecting Cable White L=95 MM |
| 254 | 1604448006 | Connecting Cable White L=40 MM |
| 255 | 2912401021 | Tapping Screw DIN7981-ST3,9X22-C-Z |
| 26 | 2910271900 | Pan head screw DIN 922-M4X3X3-5.8 |
| 295 | 1601110265 | Reference Plate |
| 3 | 3601329005 | Base Plate |
| 305 | 1601110470 | Reference Plate |
| 307 | 1600210044 | O-Ring Blue 4,5X1,0 MM |
| 31 | 3601251001 | Vertebras |
| 32 | 2916015886 | Plain Washer DIN 9021-A10,5-ST |
| 33 | 3601119063 | Reference Plate |
| 4 | 3602013000 | Swivelling Lever |
| 5 | 3605500101 | Covering hood |
| 6 | 3604651003 | Torsion Spring |
| 650 | 160202509T | Auxiliary Handle |
| 651 | 1607950052 | Pin-Type Face-Wrench |
| 652 | 3601012001 | Mounting Plate |
| 7 | 3603120004 | Swivelling Axis |
| 700 | 3608641001 | Side-Milling Cutter Ø 105X20X2,2 Mm, Z=12 |
| 700 | 3608641002 | Side-Milling Cutter Ø 105X20X2,8 Mm, Z=22 |
| 700 | 3608641008 | Side-Milling Cutter Z=8 |
| 702 | 1600499005 | Fitting Ø 25X35 MM |
| 703 | 3607030020 | Parts Set |
| 703/10 | 1600A0136P | Protective Cover |
| 703/10/20 | 2910022197 | Socket head cap screw DIN 84-M 6X16-8.8 |
| 703/20 | 1603340015 | Round Nut M14 |
| 703/30 | 2605703023 | Fastening Flange |
| 703/40 | 2608600003 | Grinding Wheel Ø 115XØ 22,2X6 MM |
| 704 | 1605411028 | Dust Bag |
| 704 | 2605411011 | Dust Bag |
| 8 | 3602200000 | Eccentric Disc |
| 810 | 1607014116 | Carbon-Brush Set |
| 810 | 1607014128 | Carbon Brush |
| 813 | 1607000253 | Push-Button Black |
| 816 | 1600A003G4 | Brush Holder |
| 816 | 2601323022 | Brush Holder |
| 821 | 1605806480 | Gear Housing |
| 828 | 1607000937 | Assembly Of Service Parts |
| 830 | 1604010259 | Armature With Fan 230-240V |
| 830 | 1604010260 | Armature With Fan 100V |
| 830 | 1604010262 | Armature With Fan 240V |
| 835 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 888 | 160111A3H3 | Nameplate |
| 9 | 2607950004 | Offset Screwdriver DIN 911-4 |
