Bosch PSE 180 E electric scraper: exploded parts diagram, 1 sheet, 48 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSE 180 E: 48 positions on 1 sheet

Bosch PSE 180 E parts list (1 sheet)

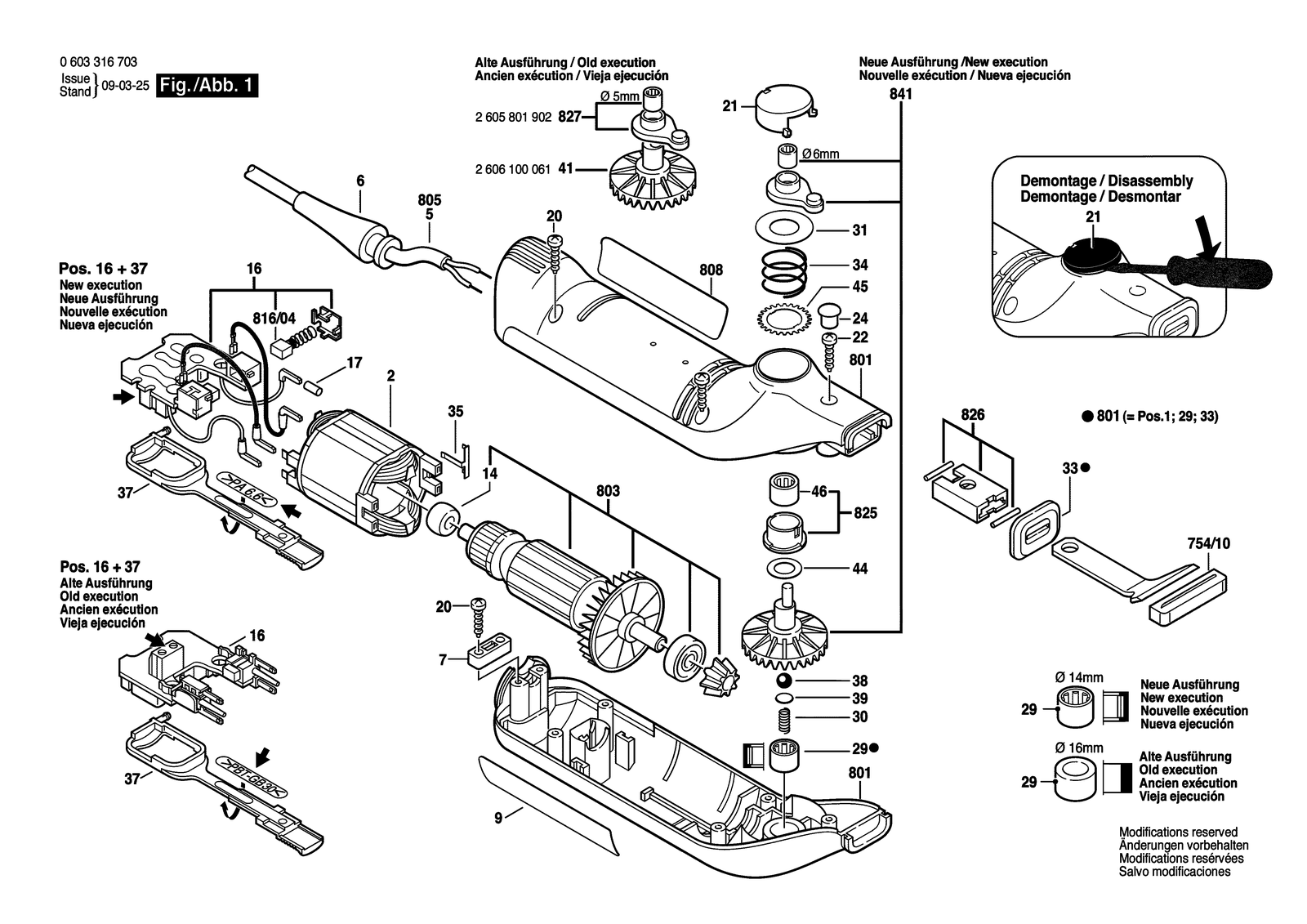

Bosch PSE 180 E parts diagram, sheet 1
No.Part numberPart name
142600302027Sintered-Metal Bushing
162607230124Rpm Actuator
162607230125Rpm Actuator
172600409021Shrinkable Tube
22604220563Field 100V
22604220705Field 230-240V
202603490022Screw 4X16
212600522013Push-Button
222603490023Torx Oval-Head Screw 4X20
242603126014Plug
292600917006Needle bearing
302604612005Compression Spring
312600101085Pressure Disk
332600712005Protective Cap
342604616005Compression Spring
352601329037Contact Spring
372602319009Switch Slide Red
381903230007Ball DIN 5401-4 Mm-Iii-St
392600000028Shim 0,5 MM
441610101615Supporting Disc Thick 0,5 MM
452600190067Adjusting Disc
462600910001Needle-Roller Bearing Ø14 MM
52604460124Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F
52604460125Power supply cord CH 2,65M 2 X 1,0MM H05VV-F
52604460126Power supply cord AUS 2,6M 2 X 0,75MM Pvc
52604460127Power supply cord J 2,50M 2 X 0,75MM Pvc
61600703030Grommet Ø6,4-Ø7,2X67 MM
61600703032Grommet Ø8,7-Ø9,5X67 MM
71611035005Cable Clip
72601035001Cable Clip
754/102601329059Knife Guard 40X23 MM
754/102601329060Knife Guard 60X23 MM
8012605190923Housing Section Green
8032604011924Armature 230-240V
8032604011925Armature 100V
8082601116712Marking Plate
8082601118812Marking Plate
8082601118813Marking Plate
8082601118814Marking Plate
8082601118815Marking Plate
8082601118816Marking Plate
8082601119473Marking Plate
816/042604321923Carbon-Brush Set
8252605801900Sintered-Metal Bushing
8262605801901Guide Bearing
8412606100922Crown Gear
92601116978Manufacturer's nameplate PSE 180 E
92601116990Manufacturer's nameplate PSE 180 E
