Bosch PSE 150 electric scraper: exploded parts diagram, 1 sheet, 47 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSE 150: 47 positions on 1 sheet

Bosch PSE 150 parts list (1 sheet)

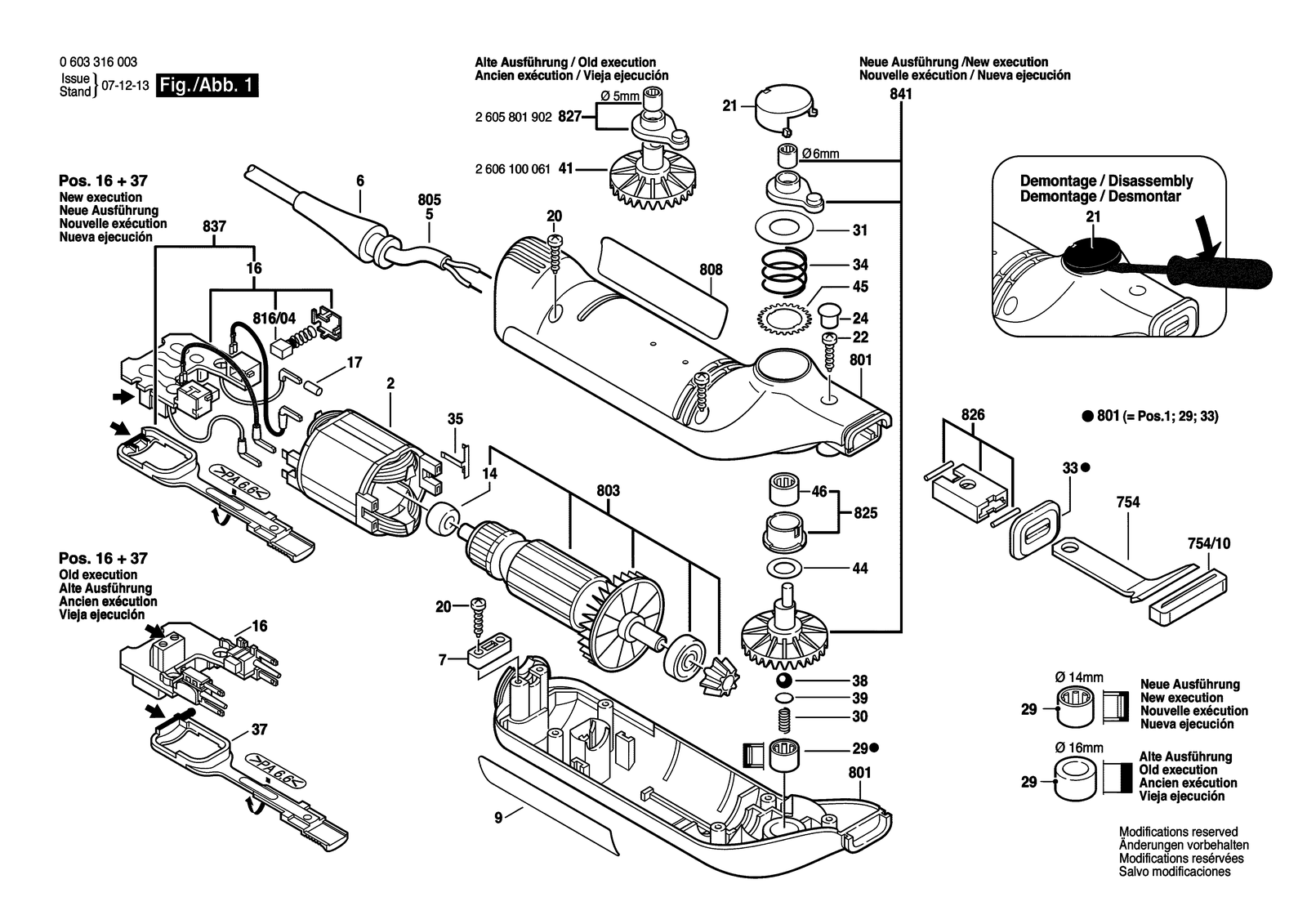

Bosch PSE 150 parts diagram, sheet 1
No.Part numberPart name
142600302027Sintered-Metal Bushing
162607230055El Connection Plate
172600409021Shrinkable Tube
22604220564Field 115V
22604220705Field 230-240V
202603490022Screw 4X16
212600522013Push-Button
222603490023Torx Oval-Head Screw 4X20
242603126014Plug
292600917006Needle bearing
302604612005Compression Spring
312600101085Pressure Disk
332600712005Protective Cap
342604616005Compression Spring
352601329037Contact Spring
372602319019Switch Slide Red
381903230007Ball DIN 5401-4 Mm-Iii-St
392600000028Shim 0,5 MM
441610101615Supporting Disc Thick 0,5 MM
452600190067Adjusting Disc
462600910001Needle-Roller Bearing Ø14 MM
52604460124Power supply cord GB 240V 2,65M 2 X 1,0MM H05 Vv-F
52604460125Power supply cord CH 2,65M 2 X 1,0MM H05VV-F
52604460126Power supply cord AUS 2,6M 2 X 0,75MM Pvc
52604460129Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2
52604460280Power supply cord I / BR 2,65M 2 X 1,0MM H05VV-F
61600703030Grommet Ø6,4-Ø7,2X67 MM
61600703031Grommet Ø7,3-Ø8,6X67 MM
61600703032Grommet Ø8,7-Ø9,5X67 MM
72601035001Cable Clip
754/102601329060Knife Guard 60X23 MM
8012605190905Housing Section Green
8032604010937Armature 115-120V
8032604011924Armature 230-240V
8051607000388Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F
8082601118806Marking Plate
8082601118807Marking Plate
8082601118808Nameplate
8082601118809Marking Plate
8082601118810Nameplate
8082601119474Nameplate
816/042604321923Carbon-Brush Set
8252605801900Sintered-Metal Bushing
8262605801901Guide Bearing
8372607230904Switch Slide
8412606100922Crown Gear
92601116991Manufacturer's nameplate
