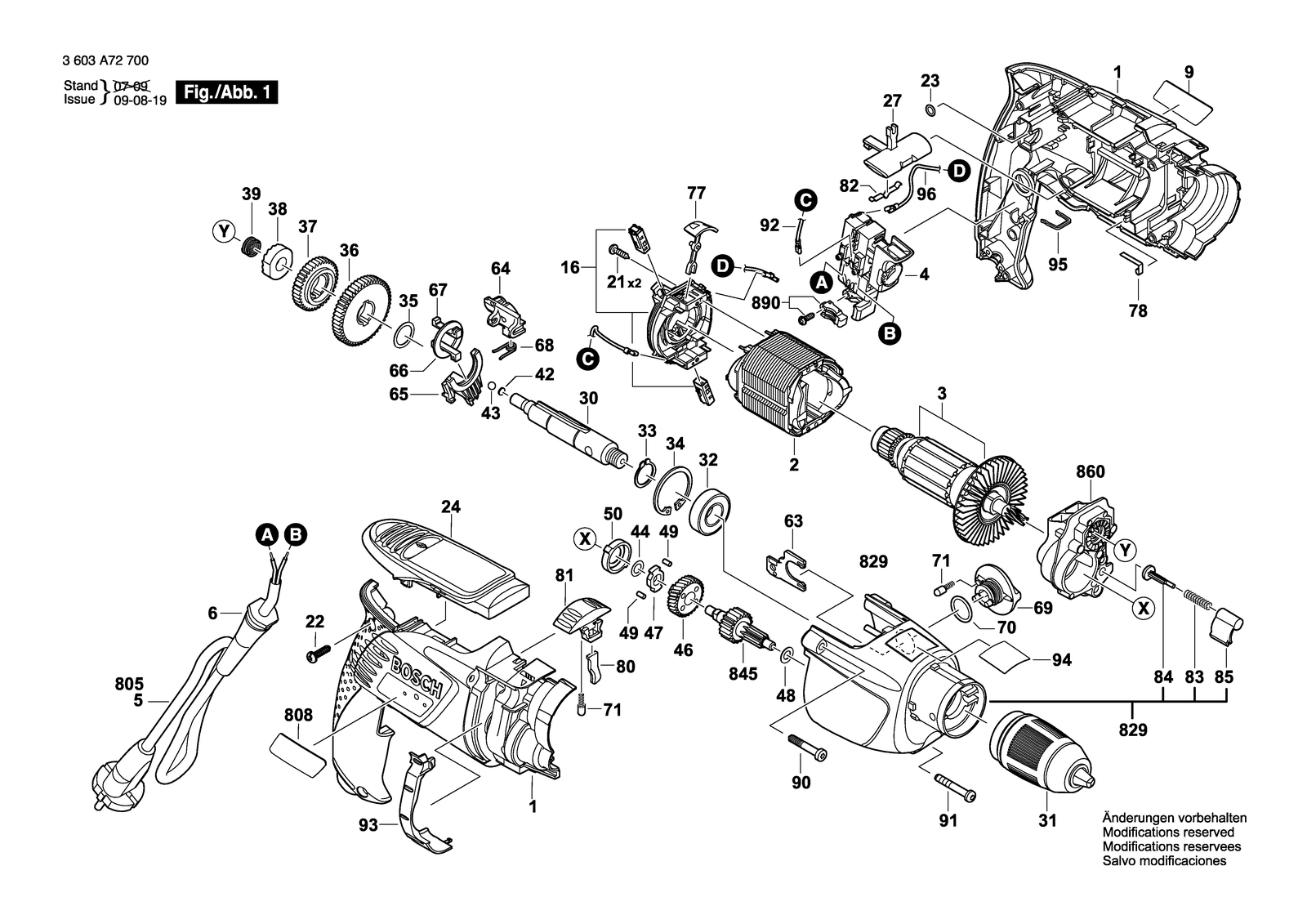

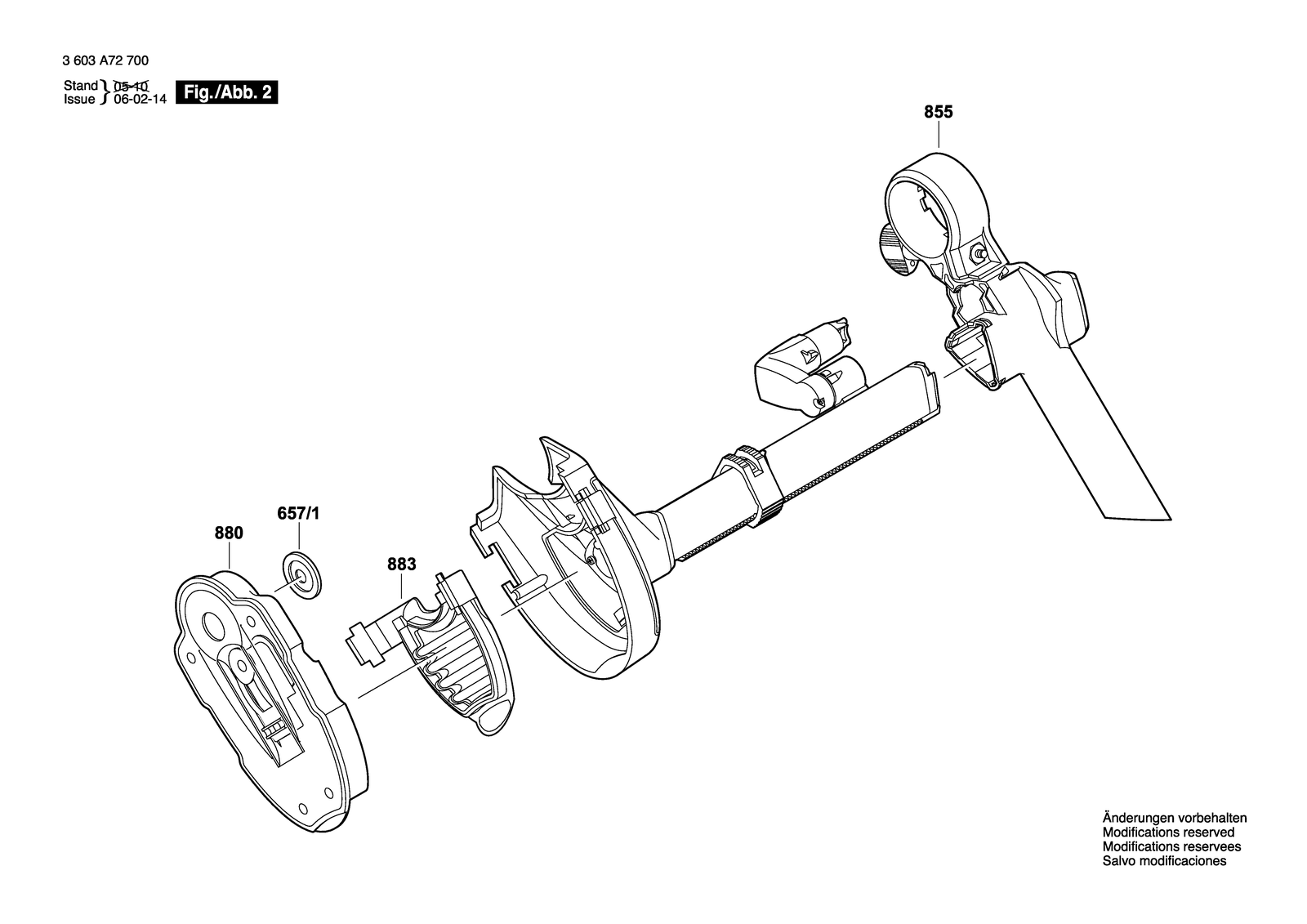

Bosch PSB 800-2 RA percussion drill: exploded parts diagram, 2 sheets, 79 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 800-2 RA: 79 positions on 2 sheets
Bosch PSB 800-2 RA parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105081 | Housing Section |
| 16 | 2604337059 | Brush Plate |
| 2 | 2604220478 | Field 100V |
| 2 | 2604220669 | Field 230V |
| 21 | 2910611002 | Tapping Screw DIN 7981-ST2,2X9,5-C-H |
| 22 | 2603490022 | Screw 4X16 |
| 23 | 1900210000 | O-Ring 5,0X1,5 MM |
| 24 | 2601099146 | Protection cover |
| 27 | 2609001247 | Reversing Switch |
| 3 | 2604011329 | Armature 230V |
| 3 | 2604011385 | Armature 100V |
| 30 | 2606135130 | Drilling Spindle |
| 31 | 2608572242 | Keyless Chuck |
| 32 | 1900905163 | Groove ball bearing 17X35X10 |
| 33 | 2916650008 | Spring retaining ring DIN 471 17X1 MM |
| 34 | 2916660014 | Spring retaining ring DIN 472 35X1,5 MM |
| 35 | 2600100695 | Shim 0,5 MM |
| 36 | 2606317084 | Cylindrical Gear |
| 37 | 2606317098 | Cylindrical Gear |
| 38 | 2600190105 | Catch Disk |
| 39 | 2604616013 | Compression Spring |
| 4 | 2607200555 | Switch |
| 4 | 2607200601 | Switch |
| 42 | 2600000021 | Shim washer 1,0 MM |
| 42 | 2600000030 | Shim washer 1,35 MM |
| 42 | 2600000031 | Shim washer 1,7 MM |
| 43 | 1903230009 | Ball DIN 5401-5 G28 |
| 43 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 43 | 2603230007 | Ball 5,25 MM |
| 44 | 1600100632 | Shim Thick 0,2 MM |
| 46 | 160312304U | Carrier |
| 47 | 2602210043 | Eccentric |
| 48 | 2600100607 | Shim 0,3 MM |
| 49 | 2609007376 | Roller Body |
| 5 | 1604460433 | Power supply cord CH 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 5 | 2604460241 | Power supply cord J 2,5M 2 X 1,25MM Pvc |
| 5 | 2604460243 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 50 | 2600202008 | Retaining snap ring |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 6 | 2609002019 | Grommet |
| 63 | 2601328003 | Holding Plate |
| 64 | 2602033017 | Link Guide |
| 65 | 2601990045 | Fork Lever |
| 657/1 | 2600206003 | Friction Ring |
| 66 | 2600101671 | Retaining Washer |
| 67 | 2602300032 | Flat Key |
| 68 | 2604616014 | Compression Spring |
| 69 | 2602026137 | Rotary Knob |
| 70 | 3600210003 | O-Ring 15,6X1,8 MM |
| 71 | 2600590006 | Ratchet Cap |
| 77 | 2602123007 | Rocker |
| 78 | 2601329043 | Contact Strap |
| 80 | 2601990044 | Guiding Plate |
| 808 | 2601115034 | Nameplate |
| 808 | 2601115035 | Nameplate |
| 808 | 2601115036 | Nameplate |
| 808 | 2609001656 | Nameplate |
| 81 | 2602098021 | Changeover Lever |
| 82 | 2601290030 | Leaf Spring |
| 829 | 2605806886 | Gear Housing |
| 83 | 2604610056 | Compression Spring |
| 84 | 2603105115 | Bolt |
| 845 | 2606309940 | Transmission |
| 85 | 2605510222 | Sealing cap |
| 855 | 2602025904 | Handle |
| 860 | 2605807940 | Bearing Bracket |
| 880 | 2605190921 | Box |
| 883 | 2607030901 | Filter |
| 890 | 2607001305 | Fastening parts kit |
| 9 | 2601116998 | Manufacturer's nameplate PSB 800-2 Ra |
| 9 | 2609002038 | Manufacturer's nameplate PSB 780-2 Re |
| 90 | 2603435087 | Headless Screw |
| 91 | 2603435088 | Thread-forming tap. Screw |
| 92 | 1614431025 | Pvc-Insulated Cable L=95 MM |
| 93 | 2601328077 | Housing part |
| 94 | 2601116906 | Reference Plate |
| 95 | 2601250010 | Pickup Clip |
| 96 | 2604448228 | Pvc-Insulated Cable Blue L=120 MM |
