Bosch PSB 750 RCA

Bosch PSB 750 RCA percussion drill: exploded parts diagram, 2 sheets, 46 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 750 RCA: 46 positions on 2 sheets

Bosch PSB 750 RCA parts list (2 sheets)

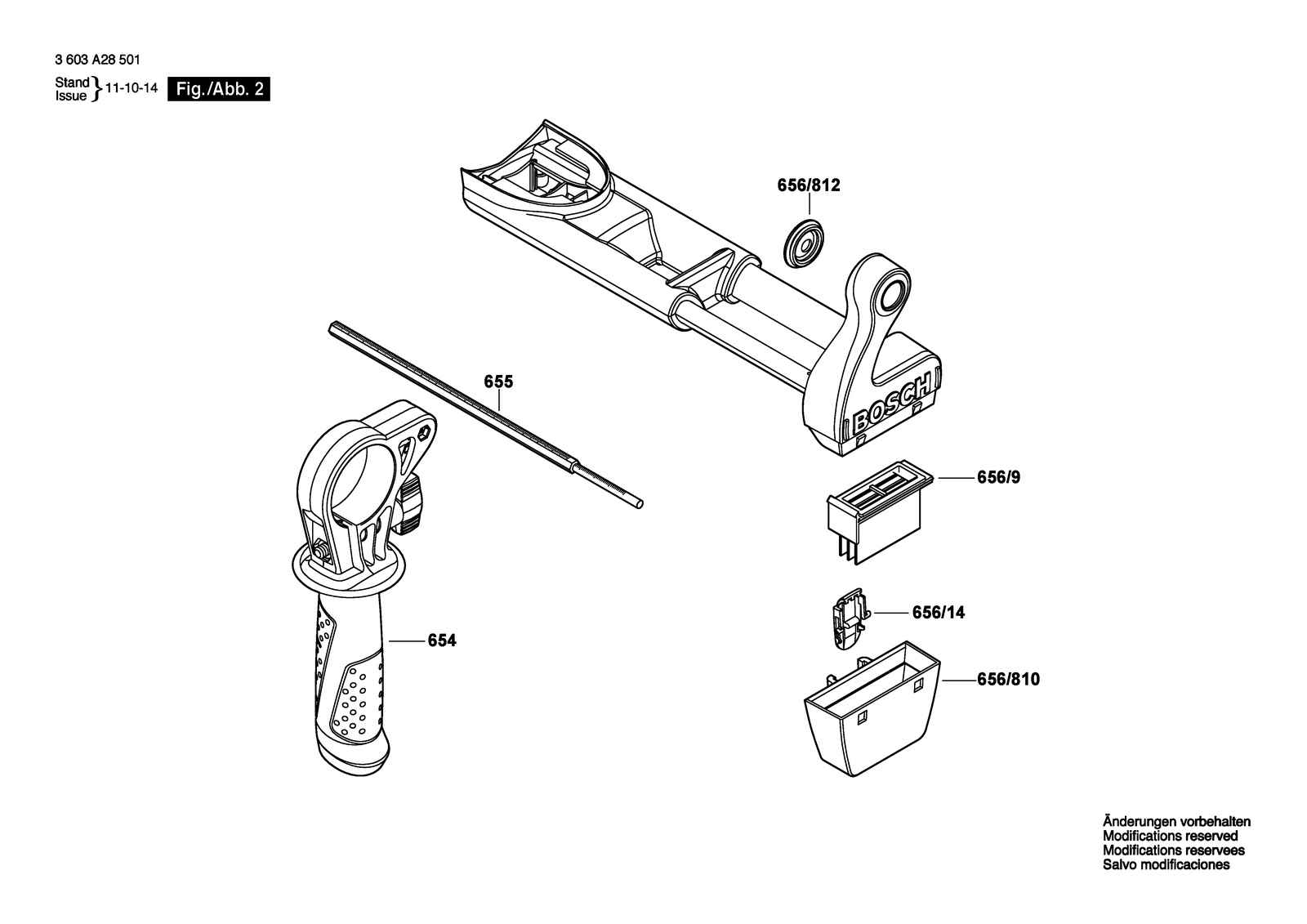

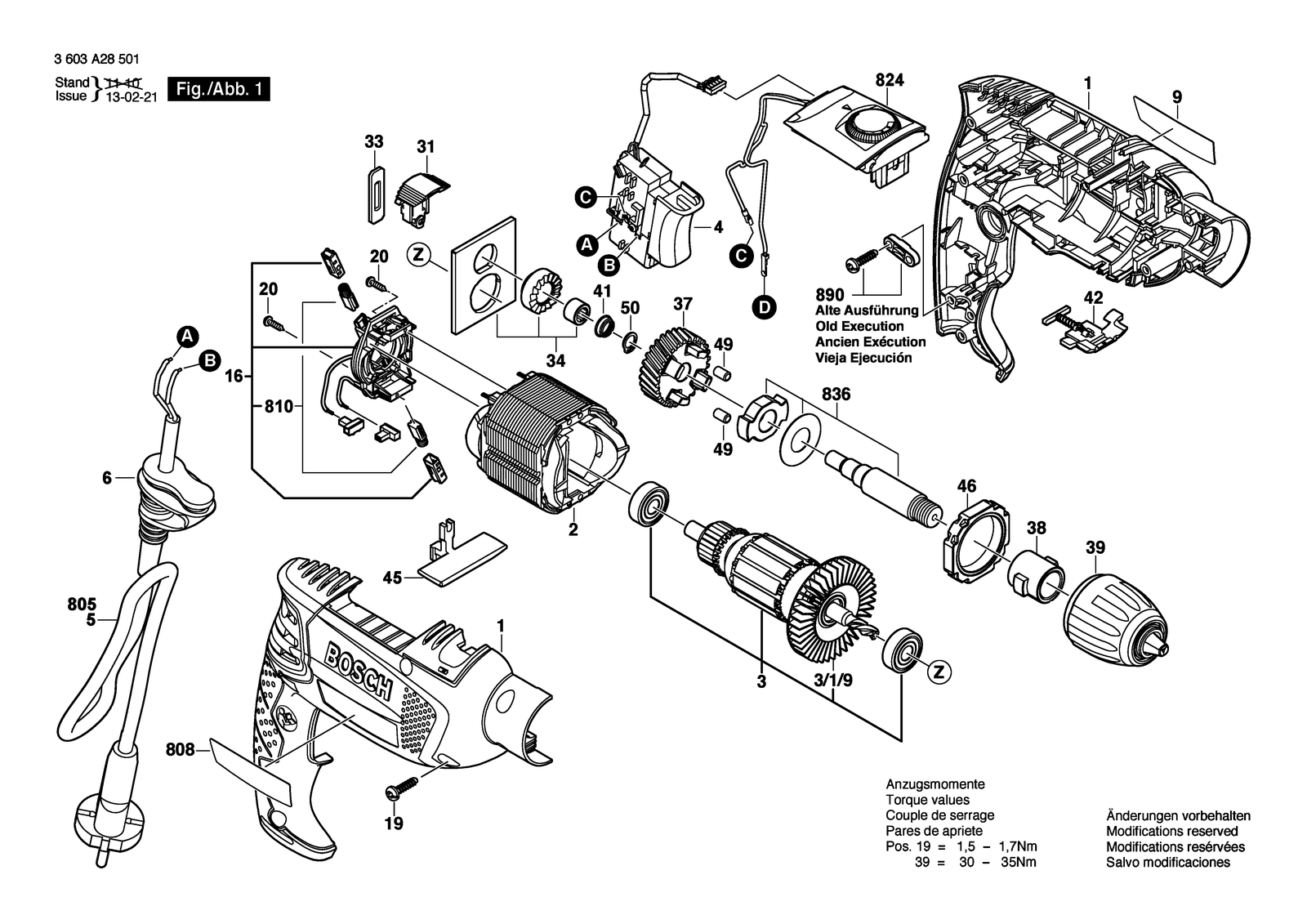

Bosch PSB 750 RCA parts diagram, sheet 1Bosch PSB 750 RCA parts diagram, sheet 2
No.Part numberPart name
12609005554Housing Section
162609007424Brush Holder
192603490022Screw 4X16
22609003196Field 220-240V
202910611002Tapping Screw DIN 7981-ST2,2X9,5-C-H
32609003195Armature 220-240V
3/1/92609003275Fan
312609003170Change-Over Switch
332609003579Guiding Plate
342609003168Bearing Bracket
372609003187Toothed Gear
382609003165Porous Bearing
392609003164Keyless Chuck
42609005693Switch
412609002581Compression Spring
422609003177Shut-off Valve
452609003180Change-Over Switch
462609003189Retaining snap ring
492609007046Cylindrical Roller
51604460433Power supply cord CH 2,65M 2 X 0,75MM H05 Vv-F
52604460243Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
52604460283Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F
52604460297Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F
502916640005Spring retaining ring DIN 471-8X0,8 Fst
62609003080Grommet Ø6,4-Ø7,2X76 MM
6542602025125Auxiliary Handle Black
6552609005615Depth-Gauge
656/142609003805Lock
656/8102609004108Dust container
656/8122600206003Friction Ring
656/92609002929Filter
8051607000387Power supply cord CN 2,65M 2 X 0,75MM H05 W-f
808160111A2HUNameplate
808160111A2HWNameplate
808160111A2J0Nameplate
808160111A2J2Nameplate
8082609005806Nameplate
8082609005808Nameplate
8101607000CJ1Brush Holder
8241607233360Electronic Module
8362609003646Spindle
8902607001305Fastening parts kit
9161111C049Manufacturer's nameplate Psb Universal+
92609003260Manufacturer's nameplate PSB 750 Rce
92609006267Manufacturer's nameplate PSB 7500 Rce
92609006677Manufacturer's nameplate PSB 8000 Rce
