Bosch PSB 730-2 RPE

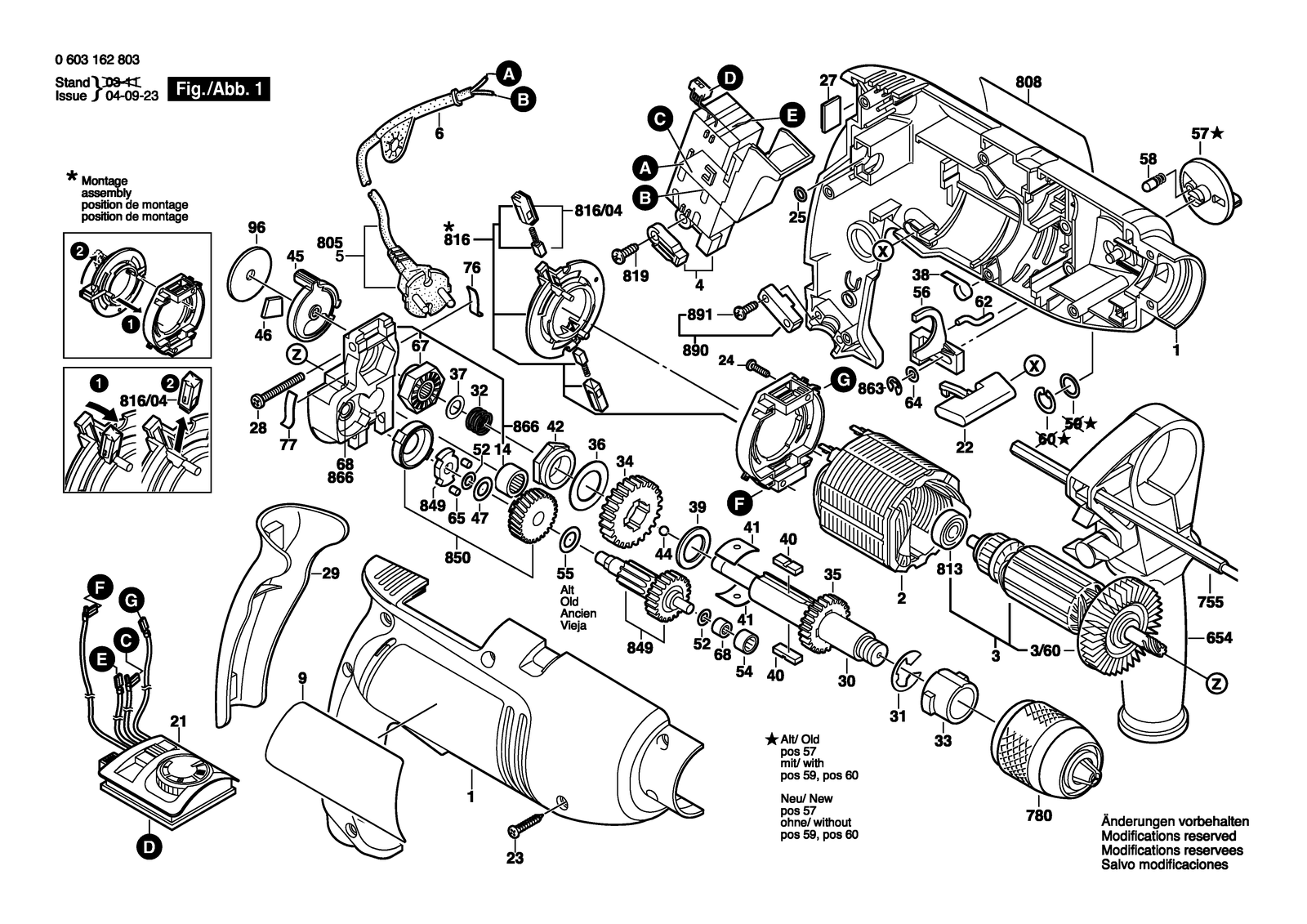

Bosch PSB 730-2 RPE percussion drill: exploded parts diagram, 1 sheet, 136 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 730-2 RPE: 136 positions on 1 sheet
Bosch PSB 730-2 RPE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104601 | Housing Section Green |
| 1 | 2605104601 | Housing Section Green |
| 14 | 2600914019 | Needle bearing |
| 14 | 2600914019 | Needle bearing |
| 2 | 2604220606 | Field 240V |
| 2 | 2604220647 | Field 230V |
| 2 | 2604220647 | Field 230V |
| 21 | 2607230050 | Speed governor |
| 21 | 2607230050 | Speed governor |
| 22 | 2602098008 | Change-Over Switch Red |
| 22 | 2602098009 | Changeover Lever Red 230V |
| 23 | 2603490022 | Screw 4X16 |
| 23 | 2603490022 | Screw 4X16 |
| 24 | 2910611002 | Tapping Screw DIN 7981-ST2,2X9,5-C-H |
| 24 | 2910611002 | Tapping Screw DIN 7981-ST2,2X9,5-C-H |
| 25 | 1900210000 | O-Ring 5,0X1,5 MM |
| 25 | 2600210036 | O-Ring 5,0X1,75 MM |
| 27 | 2603239024 | Damping Element |
| 27 | 2603239024 | Damping Element |
| 28 | 2603429006 | Oval-Head Screw |
| 28 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 29 | 2608040109 | Handle Cover Black |
| 29 | 2608040109 | Handle Cover Black |
| 3 | 2604011166 | Armature 230-240V |
| 3 | 2604011166 | Armature 230-240V |
| 3/60 | 2606610029 | Fan |
| 3/60 | 2606610029 | Fan |
| 30 | 2606135093 | Drilling Spindle 1/2" |
| 30 | 2606135093 | Drilling Spindle 1/2" |
| 31 | 2600118001 | Locking washer 0,6 MM |
| 31 | 2600118002 | Locking washer 0,8 MM |
| 31 | 2600118006 | Locking washer 0,3 MM |
| 31 | 2600118001 | Locking washer 0,6 MM |
| 31 | 2600118002 | Locking washer 0,8 MM |
| 31 | 2600118006 | Locking washer 0,3 MM |
| 32 | 2604616006 | Compression Spring |
| 32 | 2604616006 | Compression Spring |
| 33 | 2600301054 | Sintered-Metal Bushing |
| 33 | 2600301054 | Sintered-Metal Bushing |
| 34 | 2606317082 | Cylindrical Gear |
| 34 | 2606317082 | Cylindrical Gear |
| 35 | 2606317083 | Cylindrical Gear |
| 35 | 2606317083 | Cylindrical Gear |
| 36 | 2600100695 | Shim 0,5 MM |
| 36 | 2600100695 | Shim 0,5 MM |
| 37 | 2600101047 | Shim 0,3 MM |
| 37 | 2600101047 | Shim 0,3 MM |
| 38 | 2601329072 | Contact Strap |
| 38 | 2601329072 | Contact Strap |
| 39 | 2600101084 | Retaining Washer |
| 39 | 2600101084 | Retaining Washer |
| 4 | 2607200501 | Switch |
| 4 | 2607200501 | Switch |
| 40 | 2602300034 | Flat Key |
| 40 | 2602300034 | Flat Key |
| 41 | 2601098031 | Guiding Plate |
| 41 | 2601098031 | Guiding Plate |
| 42 | 2600190070 | Catch Disk |
| 42 | 2600190070 | Catch Disk |
| 44 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 44 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 45 | 2601990001 | Indexing Disk Black |
| 45 | 2601990001 | Indexing Disk Black |
| 46 | 2601074003 | Pressure Plate |
| 46 | 2601074003 | Pressure Plate |
| 47 | 1600100632 | Shim Thick 0,2 MM |
| 47 | 1600100632 | Shim Thick 0,2 MM |
| 5 | 1604460432 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460147 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460157 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 52 | 2600100607 | Shim 0,3 MM |
| 52 | 2600100607 | Shim 0,3 MM |
| 54 | 2600400027 | Bearing Sleeve |
| 54 | 2600400027 | Bearing Sleeve |
| 55 | 2600100637 | Shim 0,5 MM |
| 55 | 2600100637 | Shim 0,5 MM |
| 56 | 2601990009 | Fork Lever |
| 56 | 2601990009 | Fork Lever |
| 57 | 2602026091 | Rotary Head |
| 57 | 2602026091 | Rotary Head |
| 58 | 2600590006 | Ratchet Cap |
| 58 | 2600590006 | Ratchet Cap |
| 6 | 2600707066 | Grommet Ø6,2-Ø6,9X90 MM |
| 6 | 2600707068 | Grommet Ø8,2-Ø9,2X90MM |
| 6 | 2600707066 | Grommet Ø6,2-Ø6,9X90 MM |
| 62 | 2601335001 | Driver Pin |
| 62 | 2601335001 | Driver Pin |
| 64 | 2600100618 | Shim washer |
| 64 | 2600100618 | Shim washer |
| 65 | 2609007376 | Roller Body |
| 65 | 2609007376 | Roller Body |
| 654 | 2602025125 | Auxiliary Handle Black |
| 654 | 2602025102 | Auxiliary Handle 1/2" |
| 67 | 2600190071 | Catch Disk |
| 67 | 2600190071 | Catch Disk |
| 68 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 68 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 755 | 2603001019 | Depth-Gauge |
| 755 | 2603001019 | Depth-Gauge |
| 76 | 2601005011 | Felt Strip |
| 76 | 2601005011 | Felt Strip |
| 77 | 2601005021 | Felt Strip |
| 77 | 2601005021 | Felt Strip |
| 780 | 2608572122 | Keyless Chuck 1/2" |
| 780 | 2608572122 | Keyless Chuck 1/2" |
| 805 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 2601119810 | Marking Plate |
| 808 | 2601119811 | Marking Plate |
| 808 | 2601119812 | Nameplate |
| 808 | 2601119813 | Marking Plate |
| 808 | 2601117266 | Marking Plate |
| 813 | 2600905103 | Groove ball bearing 7X19X6 |
| 813 | 2600905032 | Ball Bearing 7X19X6 |
| 816 | 2604337061 | Brush Plate |
| 816 | 2604337061 | Brush Plate |
| 816/04 | 2609160125 | Carbon-Brush Set |
| 816/04 | 2609160125 | Carbon-Brush Set |
| 819 | 2910611006 | Tapping Screw DIN 7981-ST2,9X13-C-H |
| 819 | 2910611006 | Tapping Screw DIN 7981-ST2,9X13-C-H |
| 849 | 2606309936 | Toothed Shaft |
| 849 | 2606309936 | Toothed Shaft |
| 850 | 2606440900 | Carrier |
| 850 | 2606440900 | Carrier |
| 863 | 2916080007 | Locking washer DIN 6799-4-FST |
| 863 | 2916080007 | Locking washer DIN 6799-4-FST |
| 866 | 2605807934 | Bearing Bracket |
| 866 | 2605807934 | Bearing Bracket |
| 890 | 2607001305 | Fastening parts kit |
| 890 | 2607001305 | Fastening parts kit |
| 891 | 2603410046 | Cross Recessed-Head Screw M3X5 |
| 891 | 2603410046 | Cross Recessed-Head Screw M3X5 |
| 9 | 2601119553 | Manufacturer's nameplate |
| 9 | 2601119553 | Manufacturer's nameplate |
| 96 | 2600100066 | Plain Washer |
| 96 | 2600100066 | Plain Washer |
