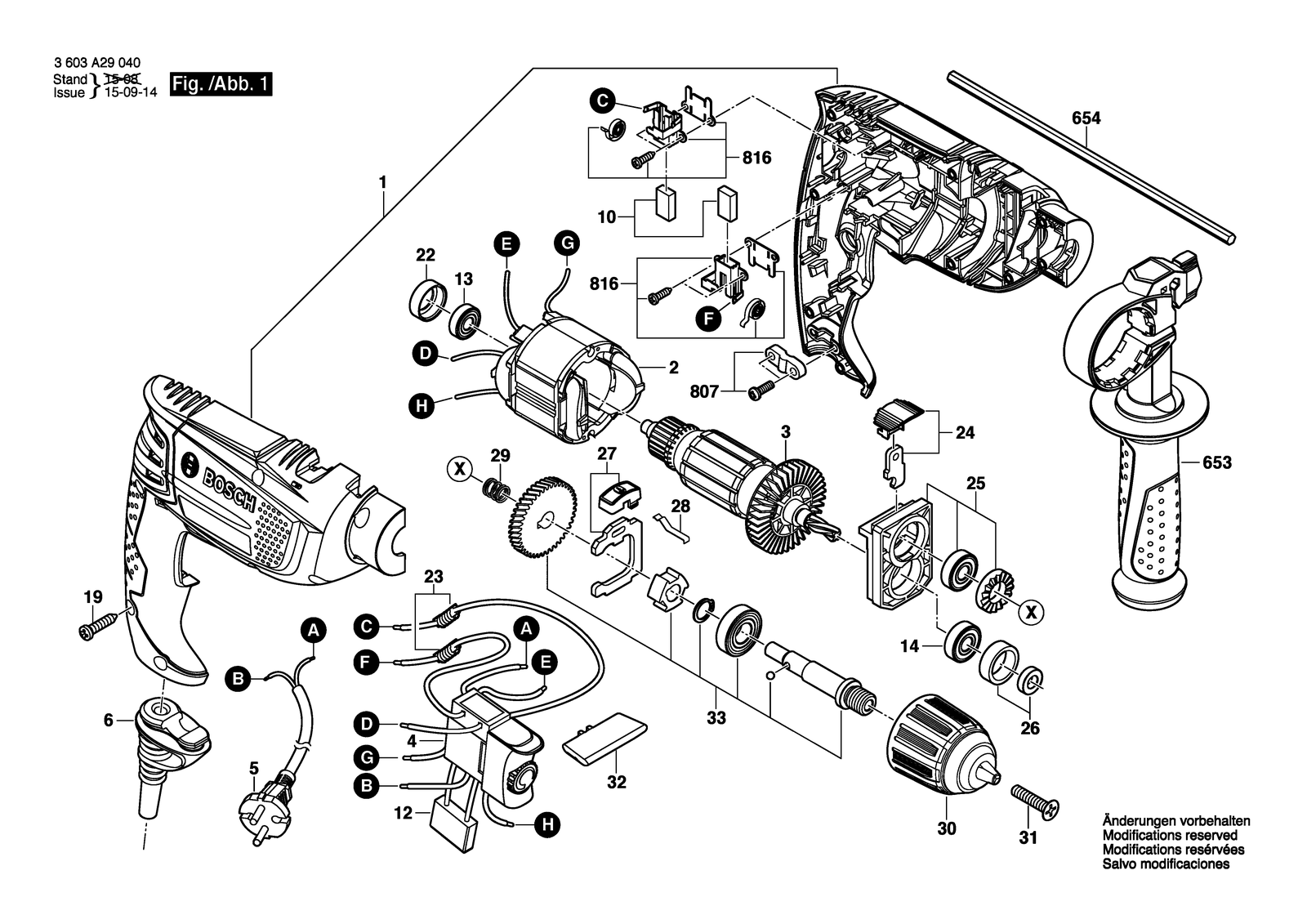

Bosch PSB 680 RE univ. 2speed impact drill: exploded parts diagram, 1 sheet, 27 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 680 RE: 27 positions on 1 sheet
Bosch PSB 680 RE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PA7526 | Housing Set |
| 10 | 1619PA6045 | Carbon-Brush Set |
| 12 | 1619PA7531 | Suppression Capacitor |
| 13 | 1619PA6056 | Bearing |
| 14 | 1619PA6057 | Bearing |
| 19 | 1619PA6059 | Screw |
| 2 | 1619PA6050 | Field assembly 220V-240V |
| 22 | 1619PA6069 | Bearing Sleeve |
| 23 | 1619PA7532 | Suppression Filter |
| 24 | 1619PA7533 | Change-Over Switch |
| 25 | 1619PA6066 | Bearing Bracket |
| 26 | 1619PA6065 | Seal |
| 27 | 1619PA7534 | Knob |
| 28 | 1619PA7535 | Diaphragm |
| 29 | 1619PA7536 | Spiral Spring |
| 3 | 1619PA7527 | Armature 240V |
| 30 | 1619PA7537 | Keyless Chuck |
| 31 | 1619PA6060 | Screw |
| 32 | 1619PA7538 | Lever |
| 33 | 1619PA7539 | Spindle assembly |
| 4 | 1619PA7528 | Switch |
| 5 | 1619PA7529 | Power supply cord |
| 6 | 1619PA7530 | Grommet |
| 653 | 1619PA7540 | Auxiliary Handle |
| 654 | 1619PA7541 | Depth-Gauge |
| 807 | 1619PA6053 | Clip |
| 816 | 1619PA6058 | Brush Holder |
