Bosch PSB 680-2

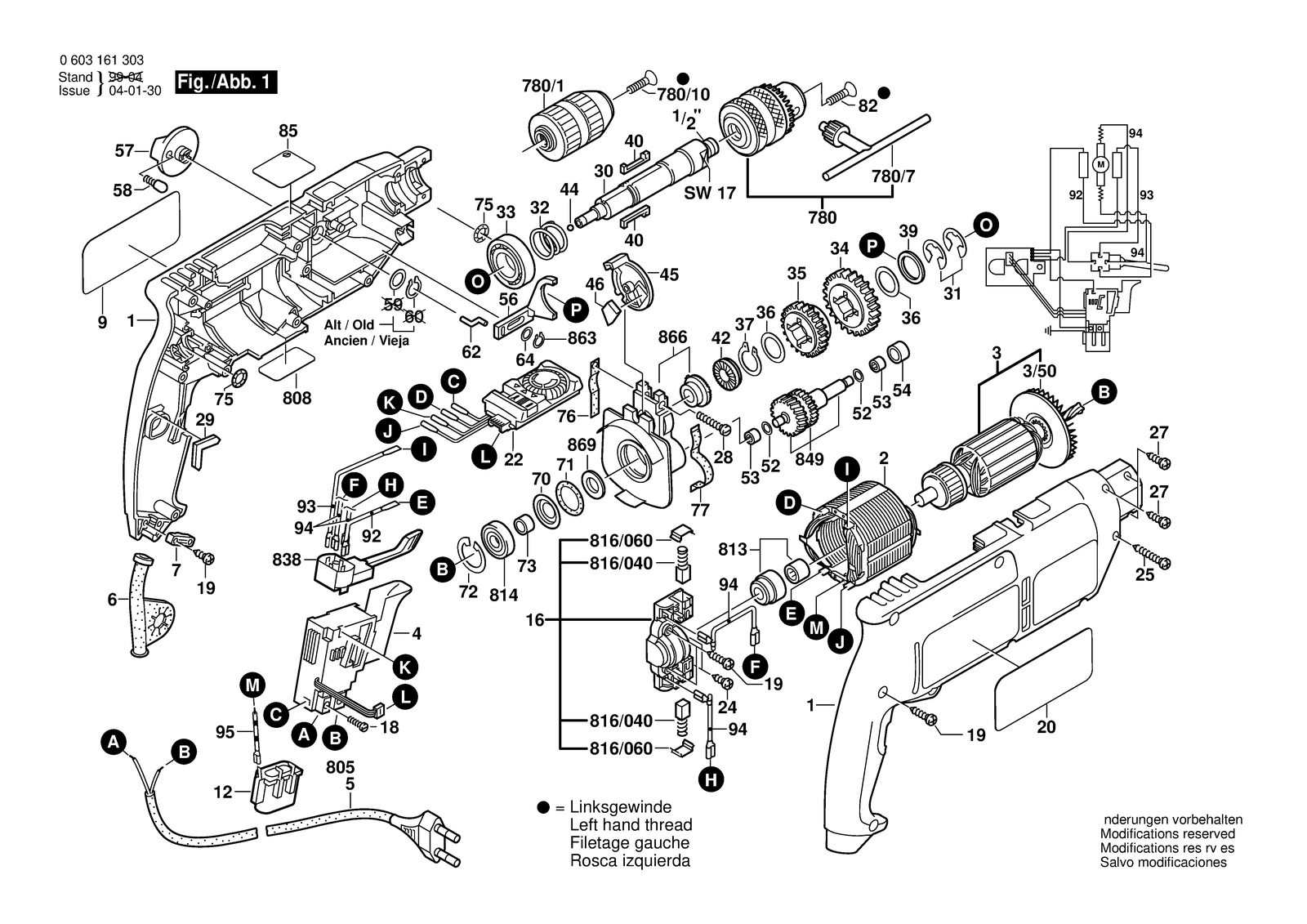

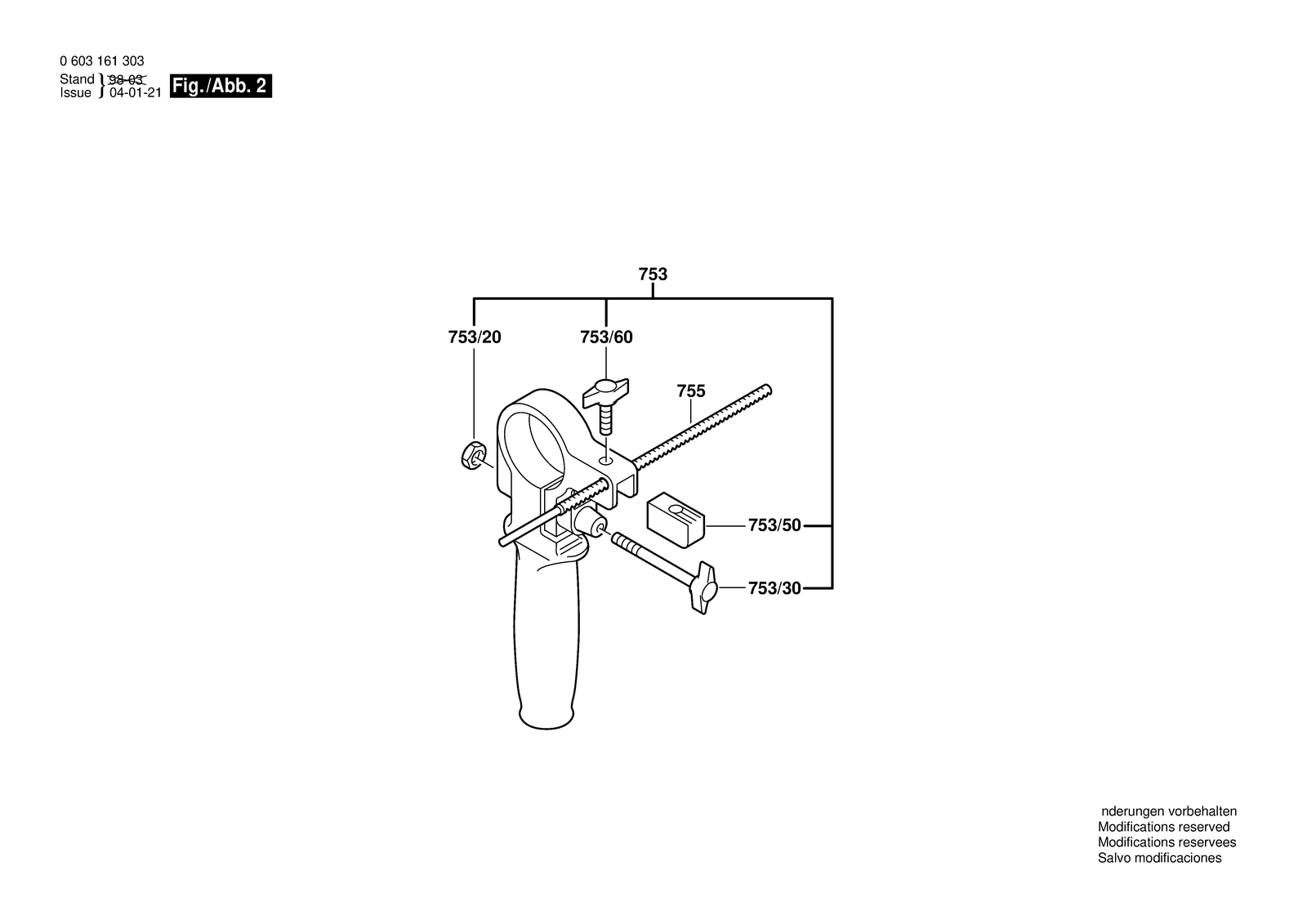

Bosch PSB 680-2 percussion drill: exploded parts diagram, 2 sheets, 87 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 680-2: 87 positions on 2 sheets
Bosch PSB 680-2 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104559 | Housing Section Green |
| 12 | 2607329114 | Suppression Filter |
| 16 | 2605807060 | Brush Plate |
| 16 | 2609992627 | Brush Plate |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220583 | Field 100-120V |
| 2 | 2604220647 | Field 230V |
| 20 | 2601118563 | Reference Plate Shadow Side |
| 22 | 2607230053 | Speed governor |
| 22 | 2607230054 | Speed governor |
| 24 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 25 | 2603490019 | Torx Oval-Head Screw 3X30 |
| 27 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 28 | 2603429005 | Socket head cap screw |
| 29 | 2601022000 | Damping Plate |
| 3 | 2604011161 | Armature 230V |
| 3 | 2604011162 | Armature 115V |
| 3/50 | 2606610029 | Fan |
| 30 | 2606135066 | Drilling Spindle 1/2"-24 UNF-2A |
| 31 | 2600118001 | Locking washer 0,6 MM |
| 31 | 2600118002 | Locking washer 0,8 MM |
| 31 | 2600118006 | Locking washer 0,3 MM |
| 32 | 2604616002 | Compression Spring |
| 33 | 1900905163 | Groove ball bearing 17X35X10 |
| 34 | 2606317045 | Cylindrical Gear Z=48 |
| 35 | 2606317037 | Cylindrical Gear Z=36 |
| 36 | 2600101515 | Shim 1,0 MM |
| 37 | 2916650006 | Retaining clip DIN 471-15X1-FST |
| 39 | 2600101671 | Retaining Washer |
| 4 | 2607200336 | On-Off Switch |
| 4 | 2607200340 | On-Off Switch |
| 40 | 2602300028 | Flat Key |
| 42 | 2600190052 | Catch Disk |
| 44 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 45 | 2601990001 | Indexing Disk Black |
| 46 | 2601074003 | Pressure Plate |
| 5 | 1604460432 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460147 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460249 | Power supply cord SAM 2,7M 2 X 0,82MM SJ 18/2 |
| 52 | 2600100607 | Shim 0,3 MM |
| 53 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 54 | 2600400027 | Bearing Sleeve |
| 56 | 2602033005 | Control Fork |
| 57 | 2602026091 | Rotary Head |
| 58 | 2600590006 | Ratchet Cap |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 62 | 2601335001 | Driver Pin |
| 64 | 2600100618 | Shim washer |
| 7 | 2601035001 | Cable Clip |
| 70 | 2600500014 | Cupped Washer |
| 71 | 1900210117 | O-Ring 18X3 MM |
| 72 | 2916660008 | Spring retaining ring DIN 472-24X1,2 MM |
| 73 | 2600400008 | Receptacle |
| 75 | 1900210000 | O-Ring 5,0X1,5 MM |
| 753 | 1619PB4323 | Auxiliary Handle |
| 753/20 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 753/30 | 1613480007 | Wing Screw M6X(15)55 |
| 753/50 | 2608040014 | Clamping Plate M6 |
| 753/60 | 1613480008 | Wing Screw M6X20 MM |
| 755 | 2603001019 | Depth-Gauge |
| 76 | 2601005011 | Felt Strip |
| 77 | 2601005016 | Felt Strip |
| 780 | 1608571062 | Key Chuck R/l Ø13 Mm, 1/2"-20 Unf |
| 780/1 | 2608572034 | Keyless Chuck Ø 2-13 MM,1/2" |
| 780/10 | 2603421209 | Countersunk-Head Screw Lefthand Threads M6X31 MM |
| 780/7 | 2607950007 | Chuck Wrench SG2 |
| 805 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 813 | 2600917902 | Needle-Roller Bearing |
| 814 | 2600905039 | Groove ball bearing 9X24X7 |
| 816/040 | 2604321916 | Carbon-Brush Set |
| 816/060 | 1619P12767 | Sliding Piece |
| 82 | 2603421226 | Countersunk-Head Screw Lefthand Threads M6X27 |
| 838 | 2607200231 | Change-Over Switch |
| 849 | 2606309913 | Toothed Shaft Z= 10/29/22 |
| 85 | 2601118670 | Sticker |
| 863 | 2916080007 | Locking washer DIN 6799-4-FST |
| 866 | 2605807928 | Bearing Bracket |
| 869 | 2600108000 | Felt Washer |
| 9 | 2601118998 | Manufacturer's nameplate Sunny Side |
| 92 | 2604448034 | Connecting Cable White L=88 MM |
| 93 | 2604448132 | Connecting Cable Blue L=103 MM |
| 94 | 2604448115 | Connecting Cable White L=73 MM |
| 95 | 2604448170 | Earth Conductor |
