Bosch PSB 680-2

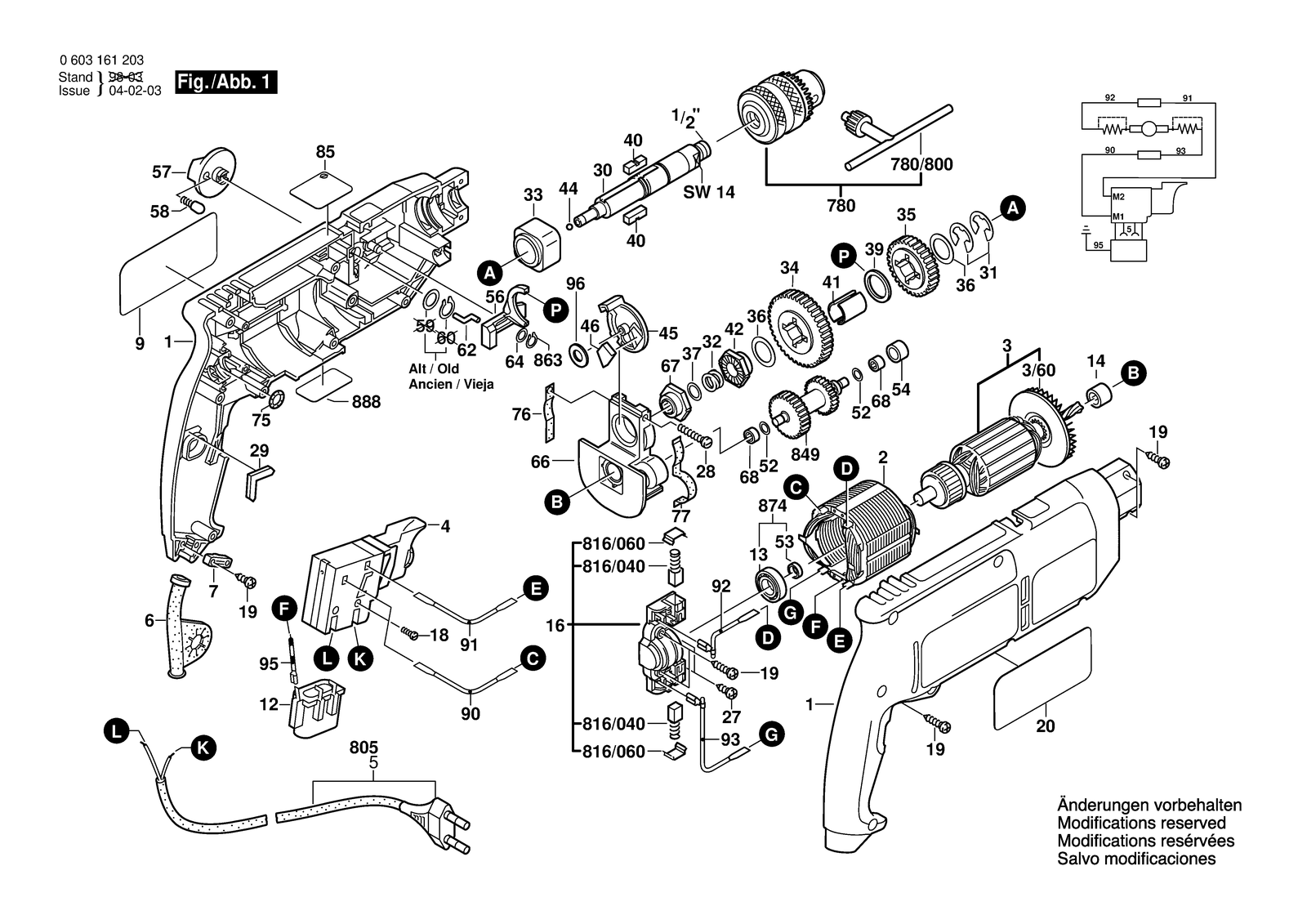

Bosch PSB 680-2 percussion drill: exploded parts diagram, 2 sheets, 76 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 680-2: 76 positions on 2 sheets
Bosch PSB 680-2 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104506 | Housing Section Green |
| 12 | 2607329114 | Suppression Filter |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 2600914019 | Needle bearing |
| 16 | 2605807060 | Brush Plate |
| 16 | 2609992617 | Brush Plate |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220583 | Field 100-120V |
| 2 | 2604220647 | Field 230V |
| 20 | 2601118565 | Reference Plate Shadow Side |
| 27 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 28 | 2603429006 | Oval-Head Screw |
| 29 | 2601022000 | Damping Plate |
| 3 | 2604011092 | Armature 230V |
| 3 | 2604011107 | Armature 115V |
| 3/60 | 2606610029 | Fan |
| 30 | 2606135072 | Drilling Spindle 1/2" |
| 31 | 2600118001 | Locking washer 0,6 MM |
| 31 | 2600118002 | Locking washer 0,8 MM |
| 31 | 2600118006 | Locking washer 0,3 MM |
| 32 | 2604616006 | Compression Spring |
| 33 | 2600301031 | Sintered-Metal Bushing 14,7-0,15 |
| 34 | 2606317082 | Cylindrical Gear |
| 35 | 2606317083 | Cylindrical Gear |
| 36 | 2600101515 | Shim 1,0 MM |
| 37 | 2600101047 | Shim 0,3 MM |
| 39 | 2600101084 | Retaining Washer |
| 4 | 2607200260 | Switch |
| 40 | 2602300034 | Flat Key |
| 41 | 2601098031 | Guiding Plate |
| 42 | 2600190070 | Catch Disk |
| 44 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 45 | 2601990001 | Indexing Disk Black |
| 46 | 2601074003 | Pressure Plate |
| 5 | 2604460249 | Power supply cord SAM 2,7M 2 X 0,82MM SJ 18/2 |
| 5 | 2604460283 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 52 | 2600100607 | Shim 0,3 MM |
| 53 | 2600209012 | Spacer Ring |
| 54 | 2600400027 | Bearing Sleeve |
| 56 | 2601990009 | Fork Lever |
| 57 | 2602026091 | Rotary Head |
| 58 | 2600590006 | Ratchet Cap |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 62 | 2601335001 | Driver Pin |
| 64 | 2600100618 | Shim washer |
| 66 | 2605807073 | Bearing Bracket |
| 67 | 2600190071 | Catch Disk |
| 68 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 7 | 2601035001 | Cable Clip |
| 75 | 1900210000 | O-Ring 5,0X1,5 MM |
| 753 | 1619PB4323 | Auxiliary Handle |
| 753/20 | 2915011007 | Hex Nut DIN 934-M6-8-A |
| 753/30 | 1613480007 | Wing Screw M6X(15)55 |
| 753/50 | 2608040014 | Clamping Plate M6 |
| 753/60 | 1613480008 | Wing Screw M6X20 MM |
| 755 | 2603001019 | Depth-Gauge |
| 76 | 2601005011 | Felt Strip |
| 77 | 2601005016 | Felt Strip |
| 780 | 1608571080 | Key Chuck Ø1,5-13 MM |
| 780/800 | 2607950007 | Chuck Wrench SG2 |
| 805 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 816/040 | 2604321916 | Carbon-Brush Set |
| 816/060 | 2601322017 | Ratchet Cap |
| 849 | 2606309931 | Toothed Shaft Z= 10/29/22 |
| 85 | 2601118303 | Sticker |
| 863 | 2916080007 | Locking washer DIN 6799-4-FST |
| 888 | 160111A3H3 | Nameplate |
| 9 | 2601118843 | Manufacturer's nameplate Sunny Side |
| 90 | 2604448136 | Connecting Cable White L=133 MM |
| 91 | 2604448129 | Connecting Cable Black L=83 MM |
| 92 | 2604448123 | Connecting Cable White L=73 MM |
| 93 | 2604448130 | Connecting Cable White L=88 MM |
| 95 | 2604448170 | Earth Conductor |
| 96 | 2600100066 | Plain Washer |
