Bosch PSB 650 RE
Bosch PSB 650 RE percussion drill: exploded parts diagram, 2 sheets, 73 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

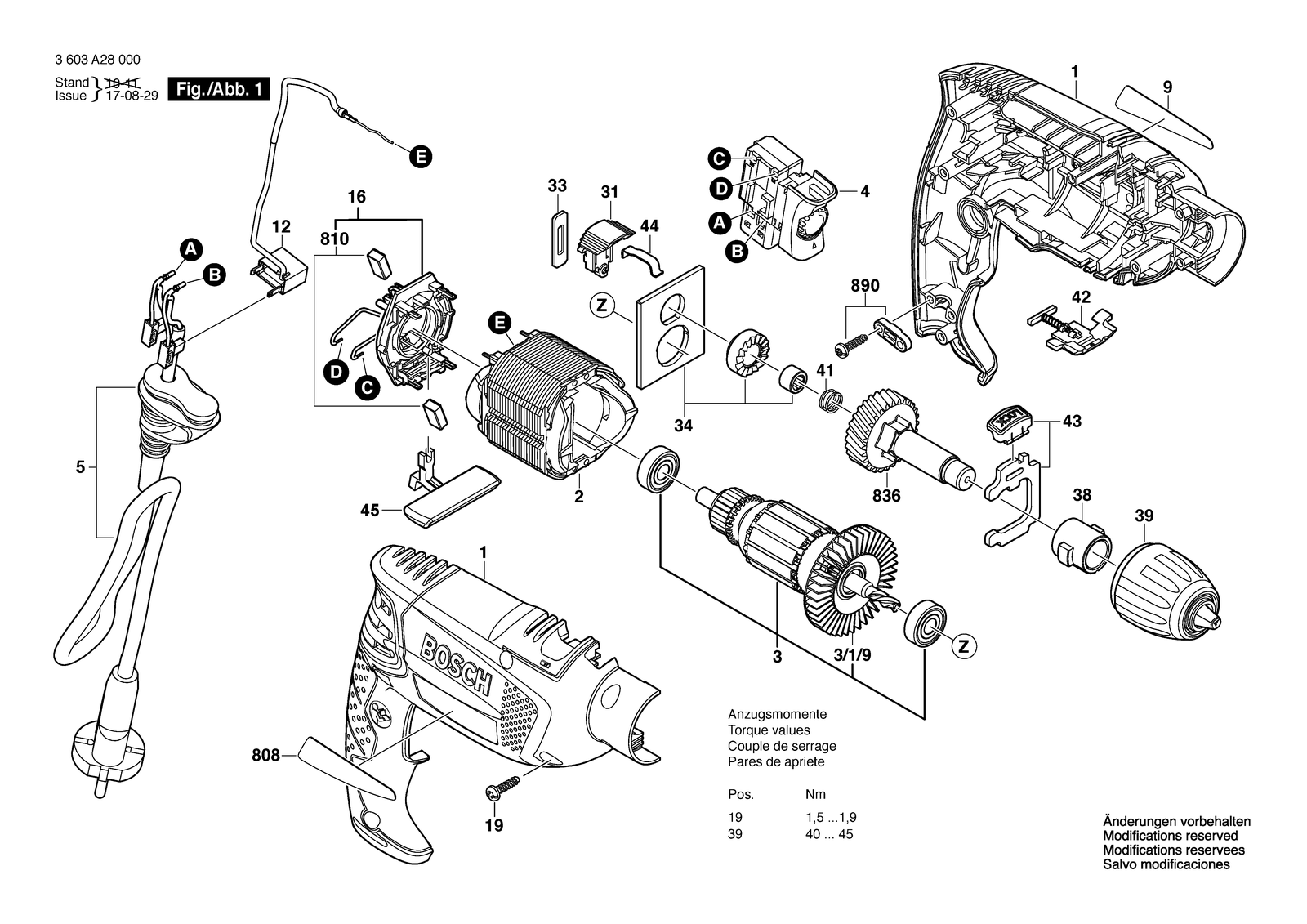

All parts of Bosch PSB 650 RE: 73 positions on 2 sheets
Bosch PSB 650 RE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609003128 | Housing Section |
| 1 | 2609003128 | Housing Section |
| 12 | 1600A0093Z | Suppression Filter |
| 12 | 1600A0093Z | Suppression Filter |
| 16 | 2609003181 | Brush Holder |
| 16 | 2609003181 | Brush Holder |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2609003024 | Field 220-240V |
| 2 | 2609003024 | Field 220-240V |
| 3 | 2609003185 | Armature 220-240V |
| 3 | 2609003185 | Armature 220-240V |
| 3/1/9 | 2609003274 | Fan |
| 3/1/9 | 2609003274 | Fan |
| 31 | 2609003170 | Change-Over Switch |
| 31 | 2609003170 | Change-Over Switch |
| 33 | 2609003579 | Guiding Plate |
| 33 | 2609003579 | Guiding Plate |
| 34 | 2609003168 | Bearing Bracket |
| 34 | 2609003168 | Bearing Bracket |
| 38 | 2609003165 | Porous Bearing |
| 38 | 2609003165 | Porous Bearing |
| 39 | 2609003164 | Keyless Chuck |
| 39 | 2609003164 | Keyless Chuck |
| 4 | 1607200503 | Switch |
| 4 | 1607200503 | Switch |
| 41 | 2604616006 | Compression Spring |
| 41 | 2604616006 | Compression Spring |
| 42 | 2609003177 | Shut-off Valve |
| 42 | 2609003177 | Shut-off Valve |
| 43 | 2609003173 | Knob |
| 43 | 2609003173 | Knob |
| 44 | 2609003176 | Leaf Spring |
| 44 | 2609003176 | Leaf Spring |
| 45 | 2609003180 | Change-Over Switch |
| 45 | 2609003180 | Change-Over Switch |
| 5 | 2609004003 | Power supply cord |
| 5 | 2609004004 | Power supply cord |
| 5 | 2609004005 | Power supply cord |
| 5 | 2609004007 | Power supply cord |
| 5 | 2609004005 | Power supply cord |
| 654 | 2602025125 | Auxiliary Handle Black |
| 654 | 2602025125 | Auxiliary Handle Black |
| 655 | 2609005615 | Depth-Gauge |
| 655 | 2609005615 | Depth-Gauge |
| 656/14 | 2609003805 | Lock |
| 656/14 | 2609003805 | Lock |
| 656/810 | 2609004108 | Dust container |
| 656/810 | 2609004108 | Dust container |
| 656/812 | 2600206003 | Friction Ring |
| 656/812 | 2600206003 | Friction Ring |
| 656/9 | 2609002929 | Filter |
| 656/9 | 2609002929 | Filter |
| 808 | 160111A2HB | Nameplate |
| 808 | 160111A2HD | Nameplate |
| 808 | 160111A2HH | Nameplate |
| 808 | 160111A2HM | Nameplate |
| 808 | 2609003583 | Nameplate |
| 808 | 160111A2HK | Nameplate |
| 810 | 2609004163 | Carbon-Brush Set |
| 810 | 2609004163 | Carbon-Brush Set |
| 836 | 2609003645 | Spindle |
| 836 | 2609003645 | Spindle |
| 890 | 2607001305 | Fastening parts kit |
| 890 | 2607001305 | Fastening parts kit |
| 9 | 161111C047 | Manufacturer's nameplate Psb Universal |
| 9 | 2609003259 | Manufacturer's nameplate PSB 650 Re |
| 9 | 2609003864 | Manufacturer's nameplate PSB 6500 Re |
| 9 | 2609004110 | Manufacturer's nameplate PSB 650 Ra |
| 9 | 2609004111 | Manufacturer's nameplate PSB 6200 Re |
| 9 | 2609004833 | Manufacturer's nameplate PSB 680 Re |
| 9 | 2609006678 | Manufacturer's nameplate PSB 7000 Re |
| 9 | 2609004833 | Manufacturer's nameplate PSB 680 Re |
