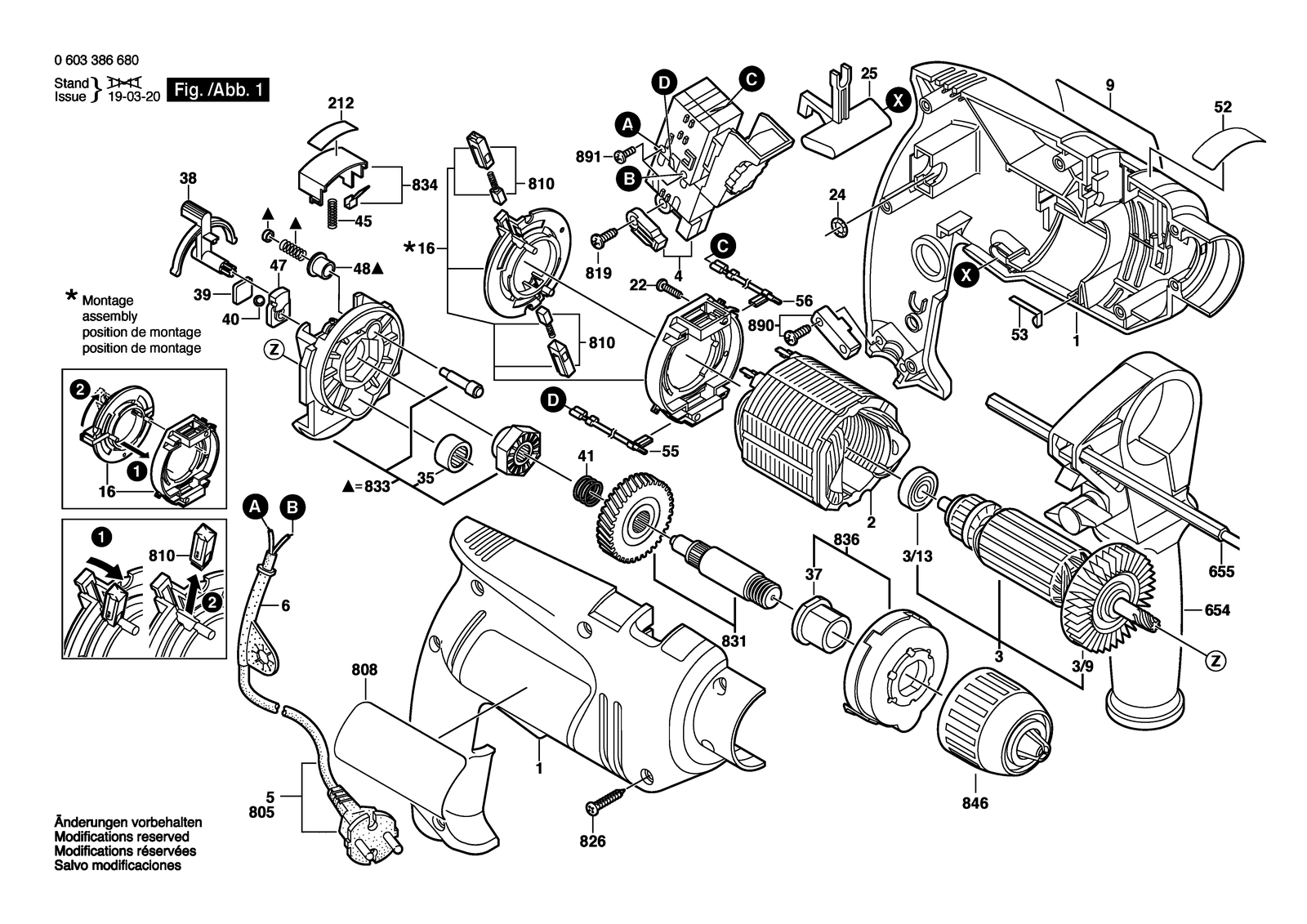

Bosch PSB 650 RE percussion drill: exploded parts diagram, 1 sheet, 53 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 650 RE: 53 positions on 1 sheet
Bosch PSB 650 RE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104560 | Housing Section Green |
| 16 | 2604337059 | Brush Plate |
| 2 | 2604220594 | Field 220-240V |
| 212 | 2601119602 | Reference Plate Red |
| 22 | 2910611002 | Tapping Screw DIN 7981-ST2,2X9,5-C-H |
| 24 | 1900210000 | O-Ring 5,0X1,5 MM |
| 25 | 2602098008 | Change-Over Switch Red |
| 3 | 2604011154 | Armature 220-240V |
| 3/13 | 2600905032 | Ball Bearing 7X19X6 |
| 3/9 | 2606610029 | Fan |
| 35 | 2600914019 | Needle bearing |
| 37 | 2600301052 | Porous Bearing |
| 38 | 2601990010 | Indexing Disk Black |
| 39 | 2601074004 | Pressure Plate |
| 4 | 2607200601 | Switch |
| 40 | 1903230009 | Ball DIN 5401-5 G28 |
| 41 | 2604616006 | Compression Spring |
| 45 | 2604610047 | Compression Spring |
| 47 | 2608040120 | Frame |
| 48 | 2600390031 | Sleeve |
| 5 | 1604460433 | Power supply cord CH 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 5 | 2604460243 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460283 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460297 | Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F |
| 52 | 2601119419 | Reference Plate |
| 53 | 2601329043 | Contact Strap |
| 55 | 1614431025 | Pvc-Insulated Cable L=95 MM |
| 56 | 2604448228 | Pvc-Insulated Cable Blue L=120 MM |
| 6 | 2600707066 | Grommet Ø6,2-Ø6,9X90 MM |
| 654 | 2602025125 | Auxiliary Handle Black |
| 655 | 2609005615 | Depth-Gauge |
| 808 | 2609000617 | Nameplate |
| 808 | 2609000618 | Nameplate |
| 808 | 2609000619 | Nameplate |
| 808 | 2609000620 | Nameplate |
| 808 | 2609000621 | Nameplate |
| 808 | 2609000723 | Nameplate |
| 808 | 2609000724 | Nameplate |
| 810 | 2607014017 | Carbon-Brush Set |
| 819 | 2910611006 | Tapping Screw DIN 7981-ST2,9X13-C-H |
| 826 | 2910611020 | Tapping Screw DIN 7981-ST3,9X19-C-H |
| 831 | 2606135929 | Drilling Spindle 1/2" |
| 833 | 2605807932 | Bearing Bracket |
| 834 | 2603231040 | Push-Button Black |
| 836 | 2605808922 | Gear Cover Green |
| 846 | 2608572173 | Keyless Chuck |
| 890 | 2607001305 | Fastening parts kit |
| 891 | 2603410046 | Cross Recessed-Head Screw M3X5 |
| 9 | 2601116010 | Manufacturer's nameplate PSB 650 Res |
| 9 | 2601117335 | Manufacturer's nameplate PSB 650 Re |
| 9 | 2601117971 | Manufacturer's nameplate PSB 6500 Re |
| 9 | 2601119310 | Manufacturer's nameplate PSB 600 Re |
