Bosch PSB 650 RA
Bosch PSB 650 RA percussion drill: exploded parts diagram, 2 sheets, 37 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

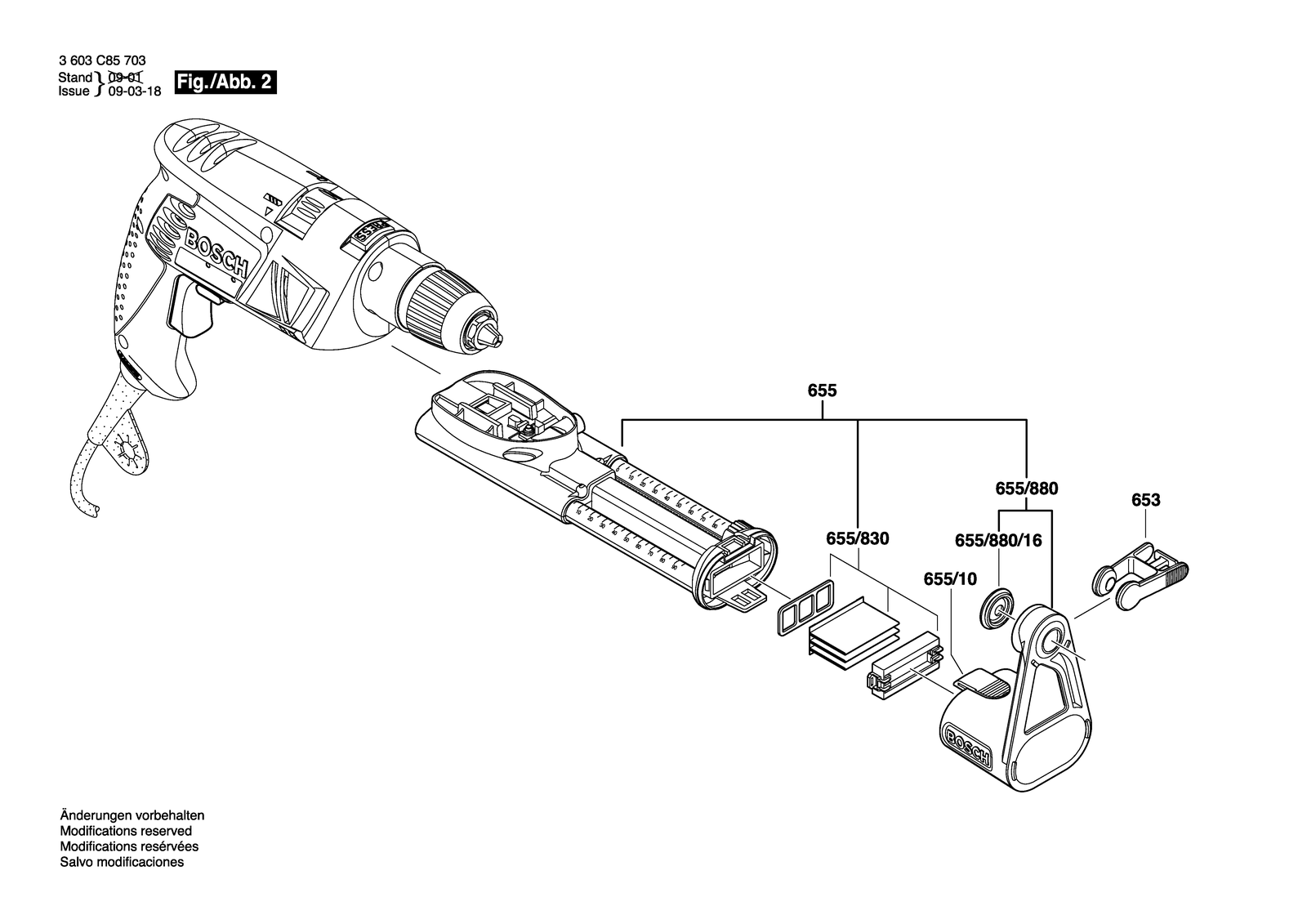

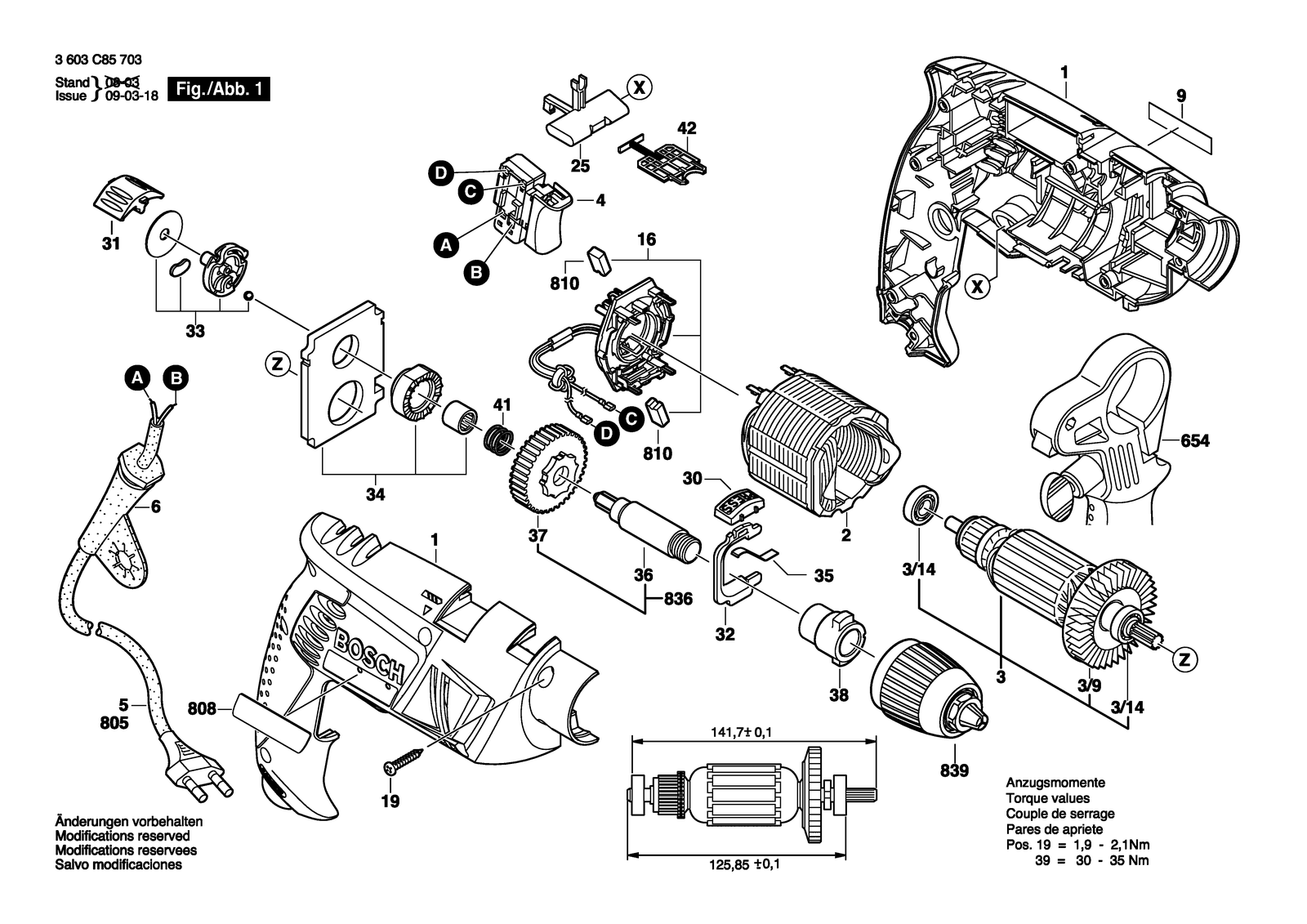

All parts of Bosch PSB 650 RA: 37 positions on 2 sheets
Bosch PSB 650 RA parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609000625 | Housing Section Green |
| 16 | 2609001577 | Brush Holder |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220683 | Field 220-230V |
| 25 | 2609000637 | Change-Over Switch |
| 3 | 2609001953 | Armature 220-230V |
| 3/14 | 3130900020 | Groove ball bearing 8X22X7 608-2Z/C3 |
| 3/9 | 2606610097 | Fan |
| 30 | 2609000630 | Push-Button |
| 31 | 2609000684 | Change-Over Switch |
| 32 | 2609000629 | Retaining Plate |
| 33 | 2601901012 | Indexing Disk |
| 34 | 2605807107 | Bearing Bracket |
| 35 | 2609000631 | Lock Spring |
| 36 | 2609000632 | Drilling Spindle |
| 37 | 2609000602 | Cylindrical Gear |
| 38 | 2609000603 | Sintered-Metal Bushing |
| 4 | 2607200645 | Switch |
| 41 | 2604616006 | Compression Spring |
| 42 | 2609001005 | Shut-off Valve |
| 5 | 1604460432 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460147 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 6 | 2600707066 | Grommet Ø6,2-Ø6,9X90 MM |
| 653 | 2607030115 | Lock Red |
| 654 | 2602025125 | Auxiliary Handle Black |
| 655 | 2609000636 | Exhauster Black |
| 655/10 | 2605510217 | Impulse Starting Device Red |
| 655/830 | 2605411902 | Dust Bag Black |
| 655/880 | 2605190920 | Intake manifold module Black |
| 655/880/16 | 2600206003 | Friction Ring |
| 808 | 2609002031 | Nameplate |
| 808 | 2609002032 | Nameplate |
| 808 | 2609002033 | Nameplate |
| 810 | 2610391290 | Carbon-Brush Set |
| 836 | 2609000771 | Spindle |
| 839 | 2608572173 | Keyless Chuck |
| 9 | 2609001361 | Manufacturer's nameplate PSB 650 Ra |
