Bosch PSB 650 RA

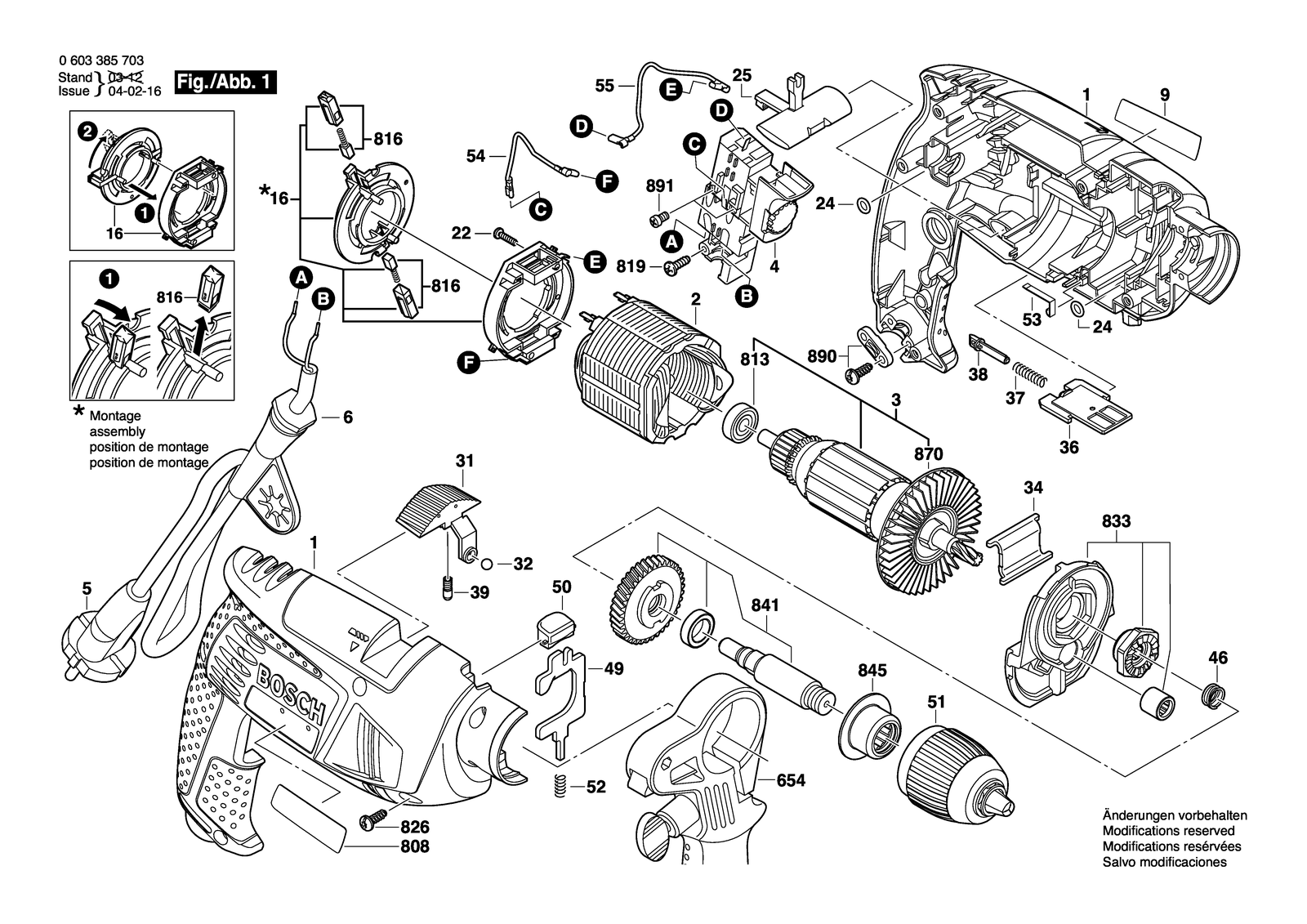

Bosch PSB 650 RA percussion drill: exploded parts diagram, 2 sheets, 58 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 650 RA: 58 positions on 2 sheets
Bosch PSB 650 RA parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105054 | Housing Section Green |
| 1 | 2605105056 | Housing Section Green |
| 16 | 2604337059 | Brush Plate |
| 16 | 2604337061 | Brush Plate |
| 2 | 2604220583 | Field 100-120V |
| 2 | 2604220717 | Field 220-240V |
| 22 | 2910611002 | Tapping Screw DIN 7981-ST2,2X9,5-C-H |
| 24 | 1900210000 | O-Ring 5,0X1,5 MM |
| 25 | 2602098020 | Change-Over Switch |
| 3 | 2604011337 | Armature 220-240V |
| 3 | 2604011369 | Armature 100-120V |
| 31 | 2602098019 | Change-Over Switch |
| 32 | 1903230009 | Ball DIN 5401-5 G28 |
| 34 | 2601334013 | Guiding Plate |
| 36 | 2605510215 | Locking Piece |
| 37 | 2604610100 | Compression Spring |
| 38 | 2603105109 | Bolt |
| 39 | 2600590006 | Ratchet Cap |
| 4 | 2607200555 | Switch |
| 4 | 2607200598 | Switch |
| 46 | 2604616006 | Compression Spring |
| 49 | 2601000051 | Plate |
| 5 | 1604460432 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460147 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460153 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460297 | Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F |
| 50 | 2605510218 | Push-Button |
| 51 | 2608572173 | Keyless Chuck |
| 52 | 2604610102 | Compression Spring |
| 53 | 2601329043 | Contact Strap |
| 54 | 1614431025 | Pvc-Insulated Cable L=95 MM |
| 55 | 2604448228 | Pvc-Insulated Cable Blue L=120 MM |
| 6 | 2600707066 | Grommet Ø6,2-Ø6,9X90 MM |
| 6 | 2600707068 | Grommet Ø8,2-Ø9,2X90MM |
| 654 | 2602025125 | Auxiliary Handle Black |
| 655 | 2607030109 | Filter Element |
| 655/10 | 2605510217 | Impulse Starting Device Red |
| 655/830 | 2605411902 | Dust Bag Black |
| 655/880 | 2605190920 | Intake manifold module Black |
| 655/880/16 | 2600206003 | Friction Ring |
| 808 | 2601116717 | Marking Plate |
| 808 | 2601116718 | Marking Plate |
| 808 | 2601116719 | Marking Plate |
| 808 | 2601116940 | Marking Plate |
| 808 | 2601116941 | Marking Plate |
| 813 | 2600905032 | Ball Bearing 7X19X6 |
| 816 | 2607014013 | Carbon-Brush Set |
| 816 | 2609160125 | Carbon-Brush Set |
| 819 | 2910611006 | Tapping Screw DIN 7981-ST2,9X13-C-H |
| 826 | 2910611020 | Tapping Screw DIN 7981-ST3,9X19-C-H |
| 833 | 2605807939 | Bearing Bracket |
| 841 | 2606135937 | Drilling Spindle |
| 845 | 2605805011 | Flanged Bearing |
| 870 | 2606610114 | Fan |
| 890 | 2607001305 | Fastening parts kit |
| 891 | 2603410046 | Cross Recessed-Head Screw M3X5 |
| 9 | 2601116599 | Manufacturer's nameplate PSB 650 Ra |
