Bosch PSB 600 RE/S percussion drill: exploded parts diagram, 1 sheet, 34 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 600 RE/S: 34 positions on 1 sheet

Bosch PSB 600 RE/S parts list (1 sheet)

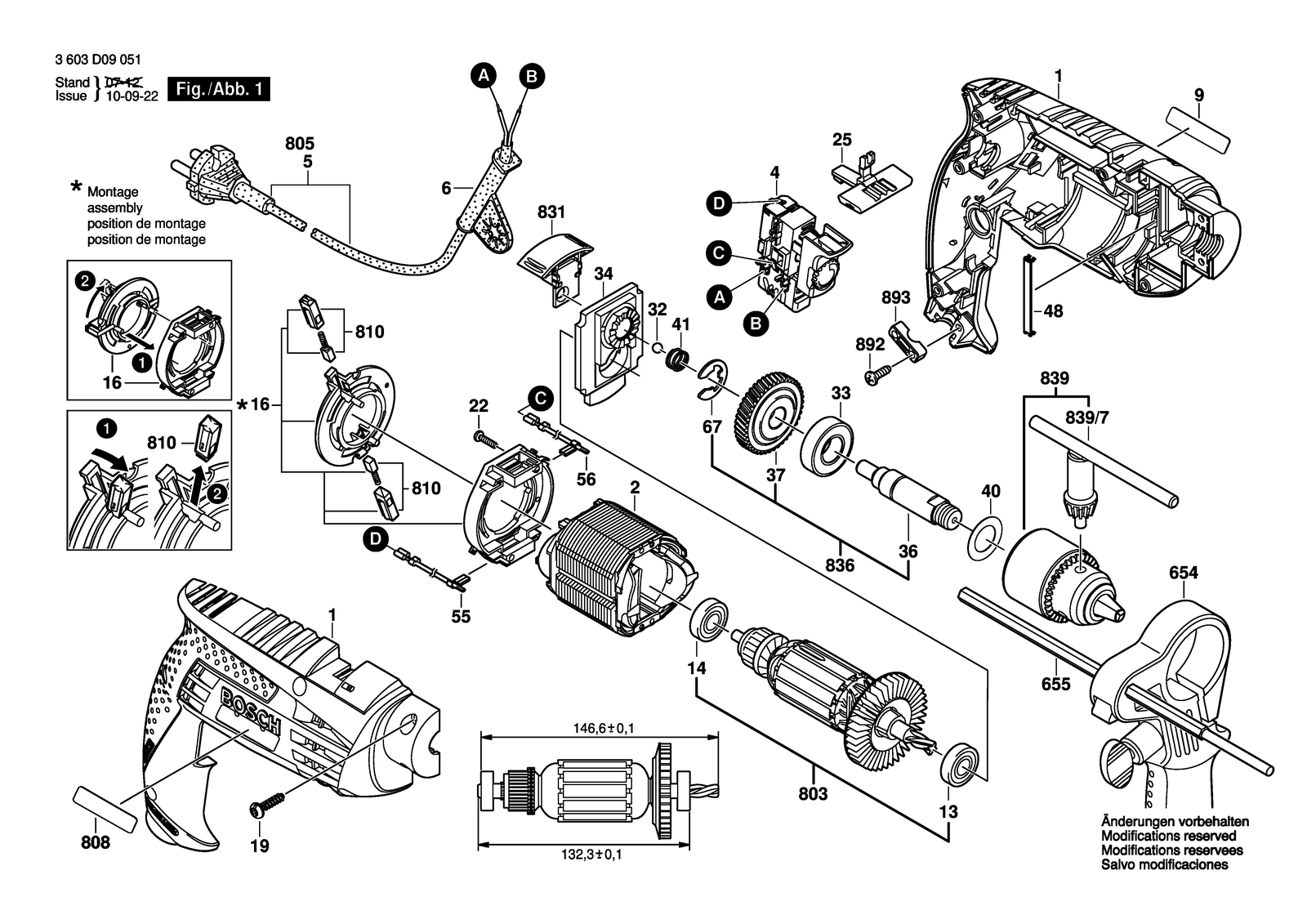

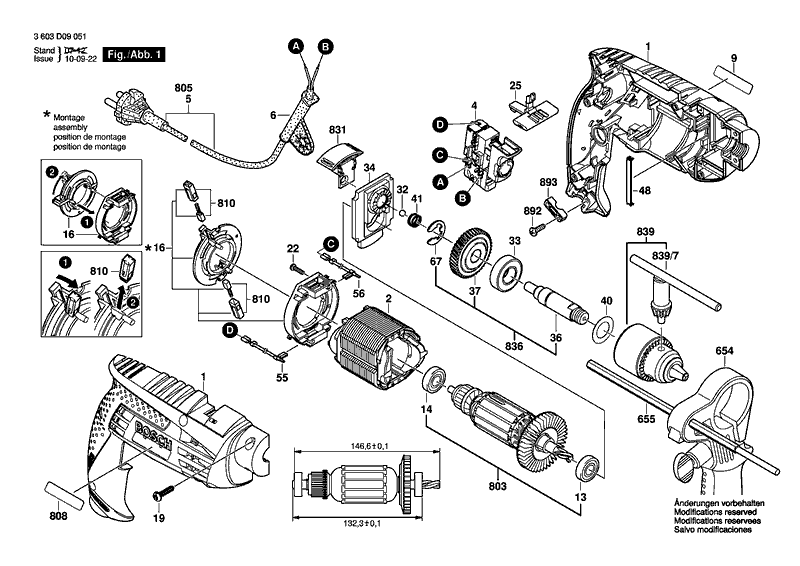

Bosch PSB 600 RE/S parts diagram, sheet 1
No.Part numberPart name
12609100679Housing Green
132609110153Ball Bearing 8X22X7
142609110491Ball Bearing
162604337061Brush Plate
192603490022Screw 4X16
22604220583Field 100-120V
222910611002Tapping Screw DIN 7981-ST2,2X9,5-C-H
252609100580Lever
321903230010Ball DIN 5401-5,5MM-III-ST
332600905068Groove ball bearing 15X32X9
342609199115Bearing Bracket
362609110449Drilling Spindle
372606320092Conversion Gear
41607200266Switch
402600100105Plain Washer
412604616006Compression Spring
482609110627Spring Clip
51604460275Power supply cord J 2,5M 2 X 1,25MM Pvc
552609120221Connecting Cable White
562609120222Connecting Cable Red
62600707061Grommet Ø8,8 MM
6542602025094Auxiliary Handle
6552609005615Depth-Gauge
672609110481Spring retaining ring
8032609120233Armature 100-120V
8082609131767Nameplate
8101607000CJ1Brush Holder
8312609160127Change-Over Switch
8362609160124Drilling Spindle
8391608571080Key Chuck Ø1,5-13 MM
839/72607950007Chuck Wrench SG2
8922603490022Screw 4X16
8931611035005Cable Clip
92609131650Manufacturer's nameplate PSB 600 Re/s
