Bosch PSB 600 RE

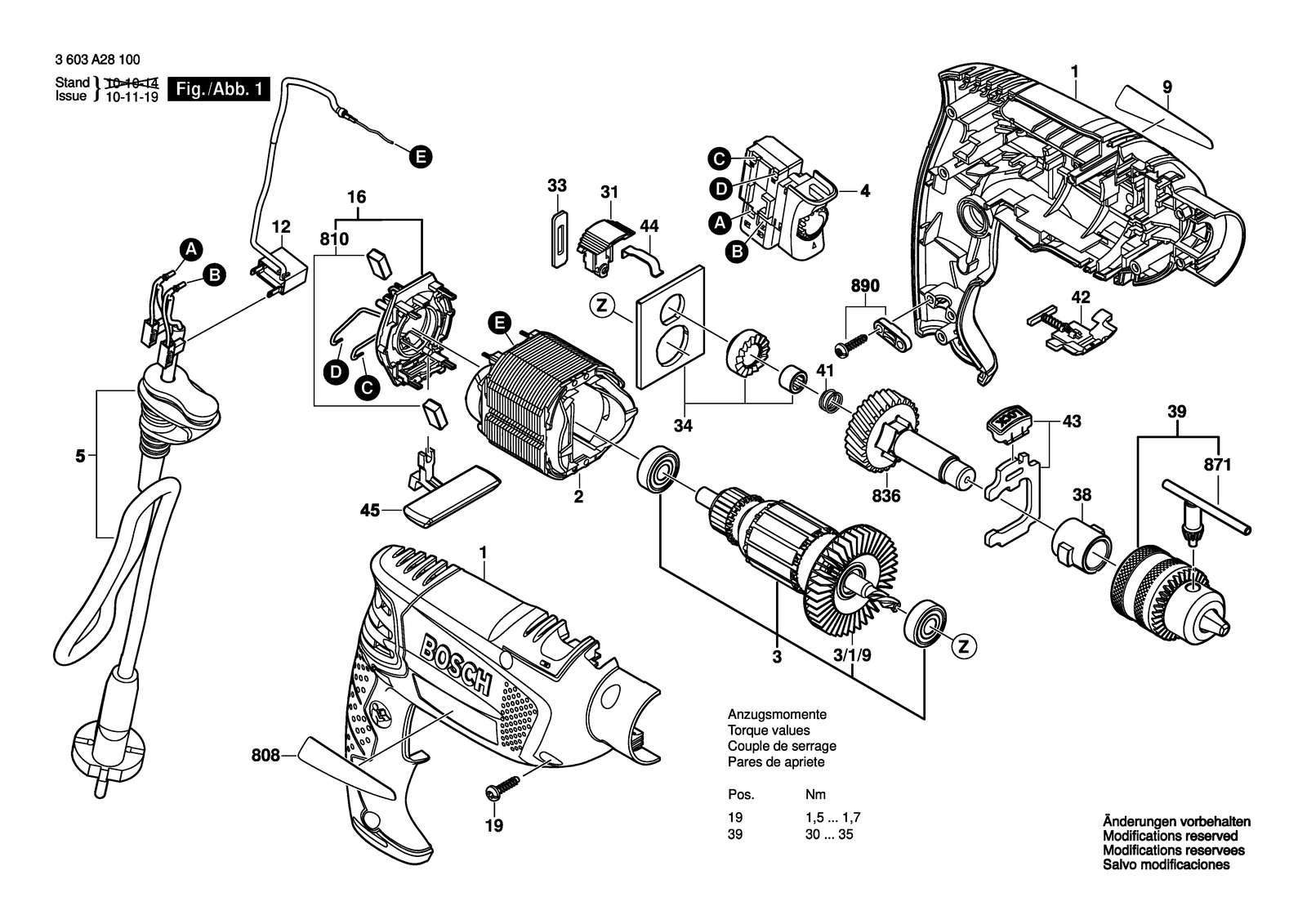

Bosch PSB 600 RE percussion drill: exploded parts diagram, 2 sheets, 27 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 600 RE: 27 positions on 2 sheets
Bosch PSB 600 RE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609003128 | Housing Section |
| 12 | 1600A0093Z | Suppression Filter |
| 16 | 2609003181 | Brush Holder |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2609003024 | Field 220-240V |
| 3 | 2609003185 | Armature 220-240V |
| 3/1/9 | 2609003274 | Fan |
| 31 | 2609003170 | Change-Over Switch |
| 33 | 2609003579 | Guiding Plate |
| 34 | 2609003168 | Bearing Bracket |
| 38 | 2609003165 | Porous Bearing |
| 39 | 2609000990 | Key Chuck |
| 4 | 1607200503 | Switch |
| 41 | 2604616006 | Compression Spring |
| 42 | 2609003177 | Shut-off Valve |
| 43 | 2609003173 | Knob |
| 44 | 2609003176 | Leaf Spring |
| 45 | 2609003180 | Change-Over Switch |
| 5 | 2609004003 | Power supply cord |
| 654 | 2602025125 | Auxiliary Handle Black |
| 655 | 2609005615 | Depth-Gauge |
| 808 | 160111A2HP | Nameplate |
| 810 | 2609004163 | Carbon-Brush Set |
| 836 | 2609003645 | Spindle |
| 871 | 2607950007 | Chuck Wrench SG2 |
| 890 | 2607001305 | Fastening parts kit |
| 9 | 2609004112 | Manufacturer's nameplate PSB 600 Re |
