Bosch PSB 570 RE

Bosch PSB 570 RE percussion drill: exploded parts diagram, 2 sheets, 26 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 570 RE: 26 positions on 2 sheets

Bosch PSB 570 RE parts list (2 sheets)

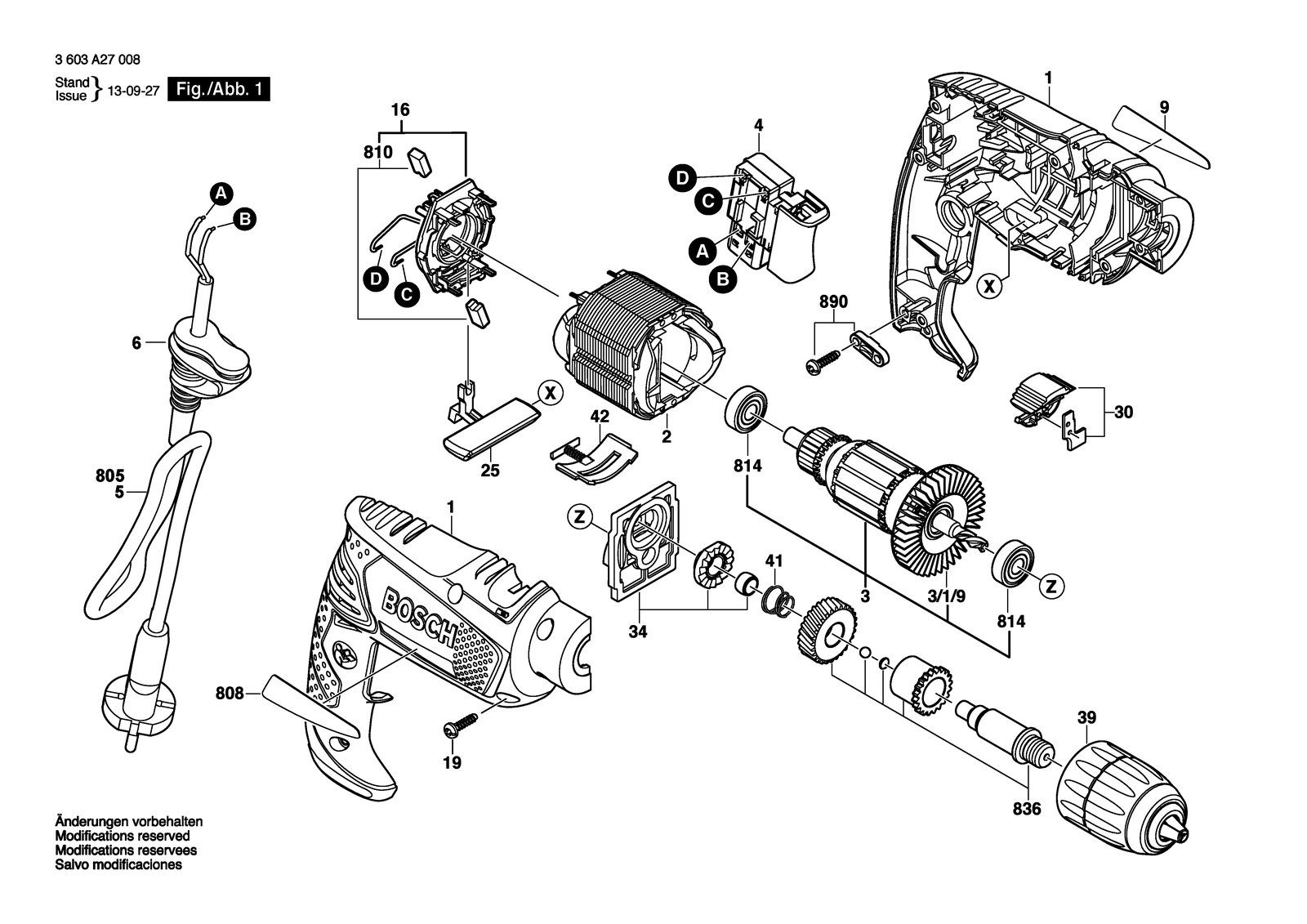

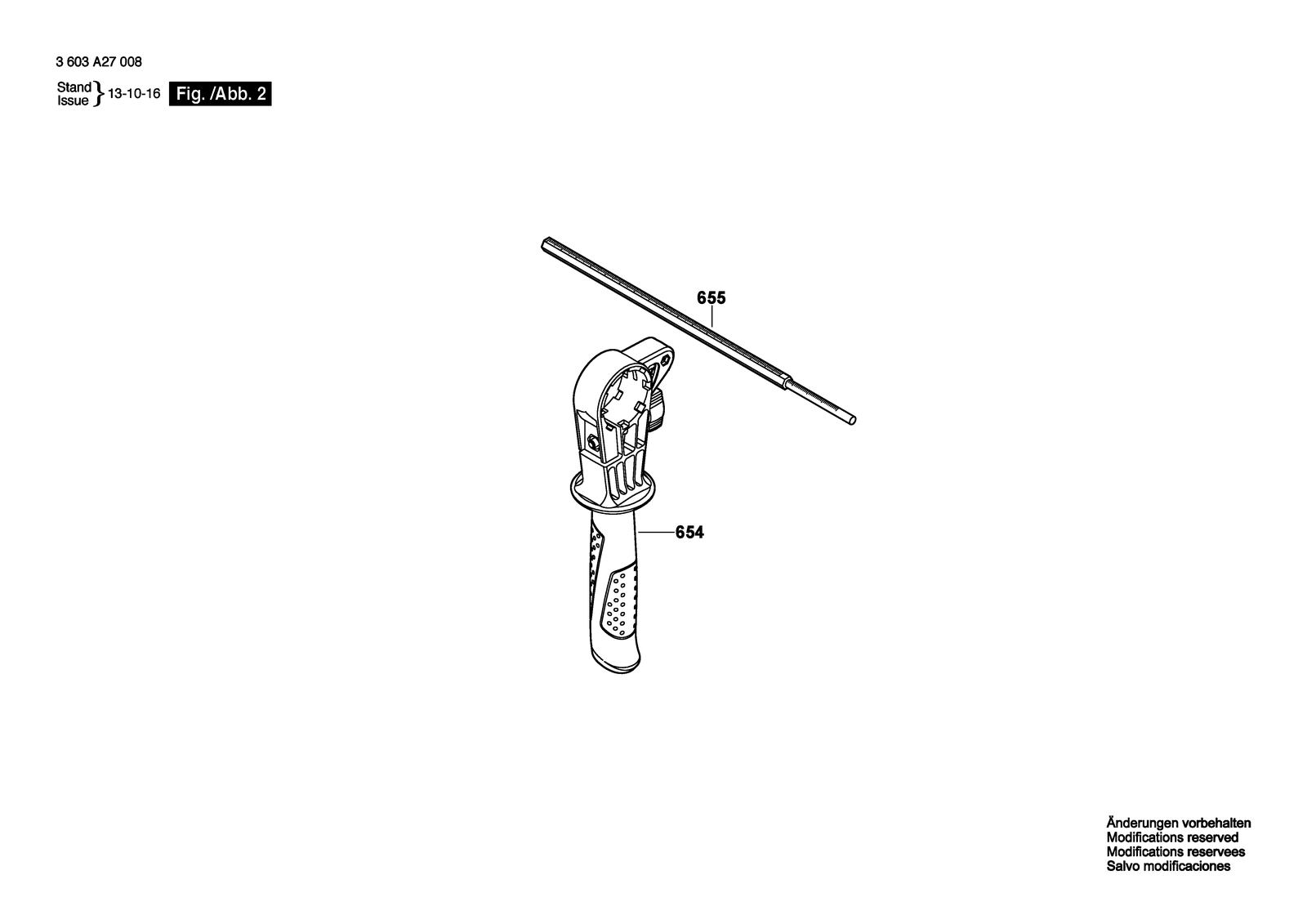

Bosch PSB 570 RE parts diagram, sheet 1Bosch PSB 570 RE parts diagram, sheet 2
No.Part numberPart name
12609003079Housing Section Green
162609003082Brush Holder
192603490022Screw 4X16
22609002875Field 220-240V
252609003083Change-Over Switch
32609003374Armature 220-240V
3/1/92609002159Fan
302609004764Change-Over Switch
342609005549Bearing Bracket
391600A00DR5Chuck
42607200655Switch
412609003095Compression Spring
422609004840Shut-off Valve
52604460259Power supply cord EU 230V 2,7M 2 X 0,75MM H05 Vv-F
62609003080Grommet Ø6,4-Ø7,2X76 MM
6542602025125Auxiliary Handle Black
6552609005615Depth-Gauge
808160111A2H3Nameplate
8102609003994Carbon-Brush Set 220-240V
8143130900020Groove ball bearing 8X22X7 608-2Z/C3
8362609005551Drilling Spindle
8902607001305Fastening parts kit
9160111C0A5Manufacturer's nameplate PSB 5700 Re
9161111C044Manufacturer's nameplate PSB 6000
9161111C046Manufacturer's nameplate Psb Easy+
92609006715Manufacturer's nameplate PSB 570 Re
