Bosch PSB 550 RE

Bosch PSB 550 RE cordless percussion drill: exploded parts diagram, 1 sheet, 34 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 550 RE: 34 positions on 1 sheet

Bosch PSB 550 RE parts list (1 sheet)

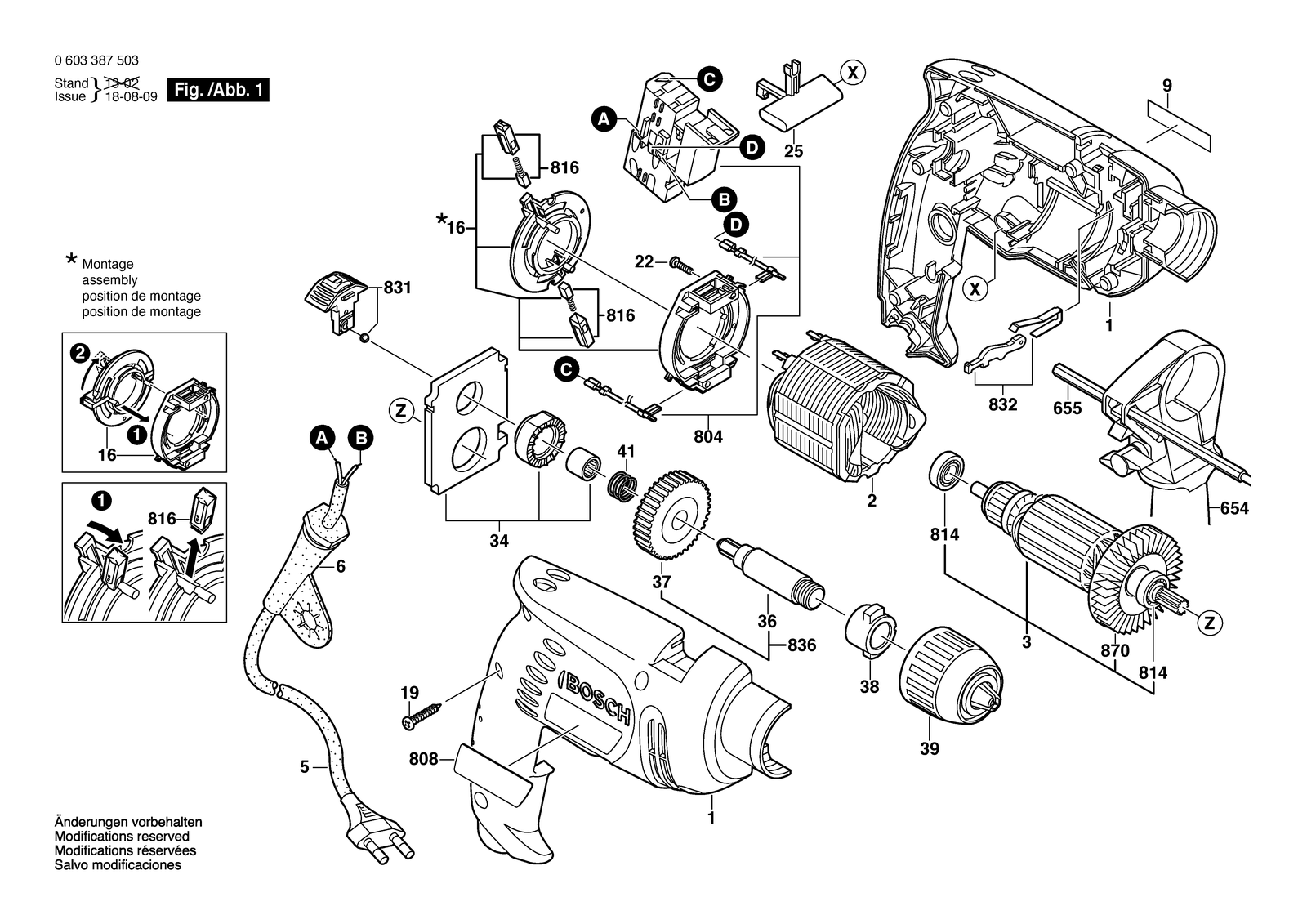

Bosch PSB 550 RE parts diagram, sheet 1
No.Part numberPart name
12605104775Housing Section
162604337101Brush Plate
192603490022Screw 4X16
22604220601Field 220-240V
222910611002Tapping Screw DIN 7981-ST2,2X9,5-C-H
252602098008Change-Over Switch Red
32604011321Armature 220-240V
342605807107Bearing Bracket
362606135081Drilling Spindle 1/2"
372606320081Cylindrical Gear
382600301054Sintered-Metal Bushing
392608572173Keyless Chuck
412604616006Compression Spring
51604460432Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F
51607000388Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F
52604460147Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
52604460292Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F
62600707066Grommet Ø6,2-Ø6,9X90 MM
6542602025125Auxiliary Handle Black
6542602025137Auxiliary Handle Power Light
6552609005615Depth-Gauge
8042609002056On-Off Switch
8082601116352Marking Plate
8082601116354Nameplate
8082601116355Nameplate
8082601116782Nameplate
8143130900020Groove ball bearing 8X22X7 608-2Z/C3
8162607014013Carbon-Brush Set
8312607235012Circuit Unit
8322602123901Rocker
8362606135935Drilling Spindle
8702606610097Fan
92601116321Manufacturer's nameplate PSB 550 Re
92601116356Manufacturer's nameplate PSB 550 Re
