Bosch PSB 500 RE
Bosch PSB 500 RE percussion drill: exploded parts diagram, 2 sheets, 70 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

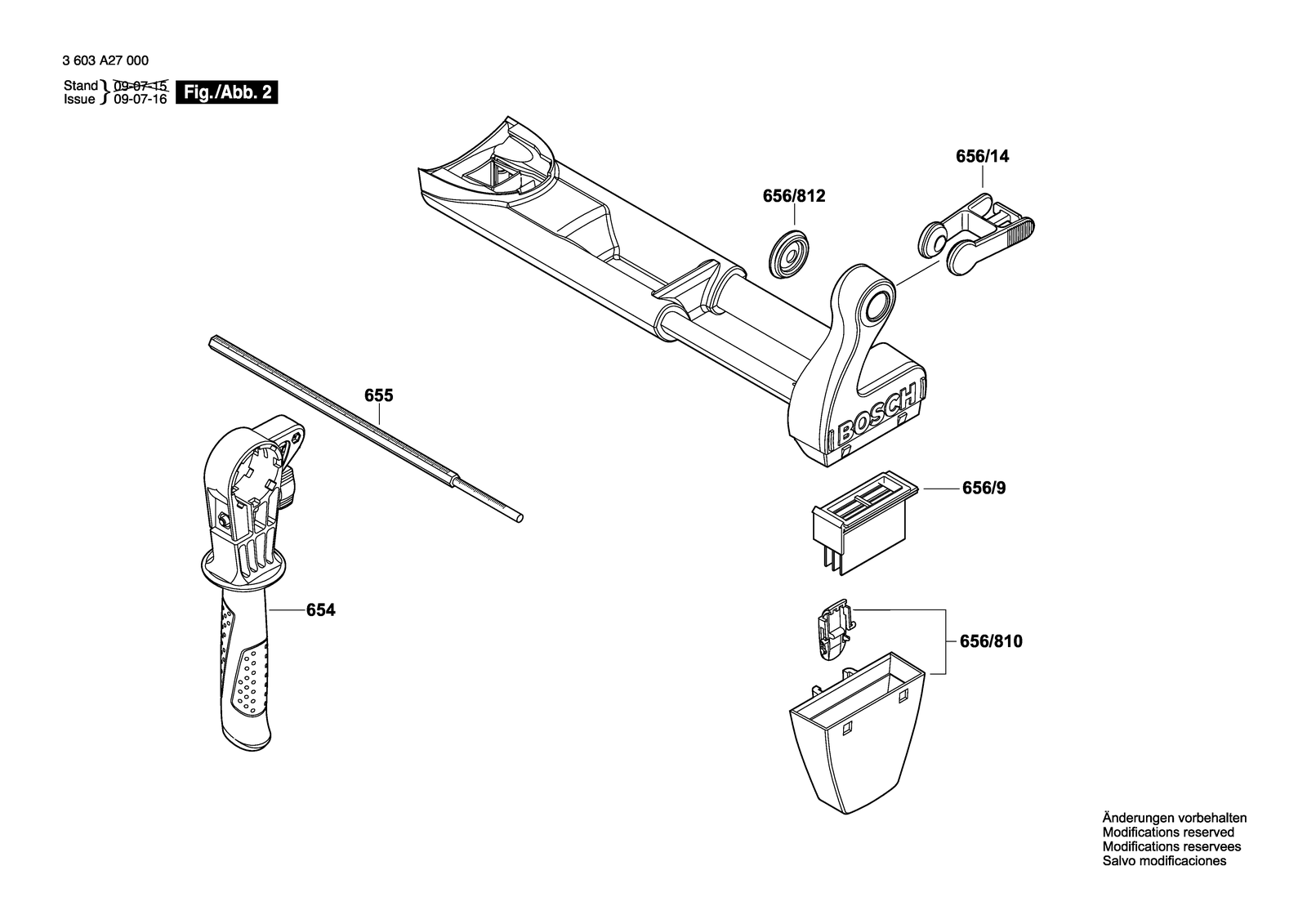

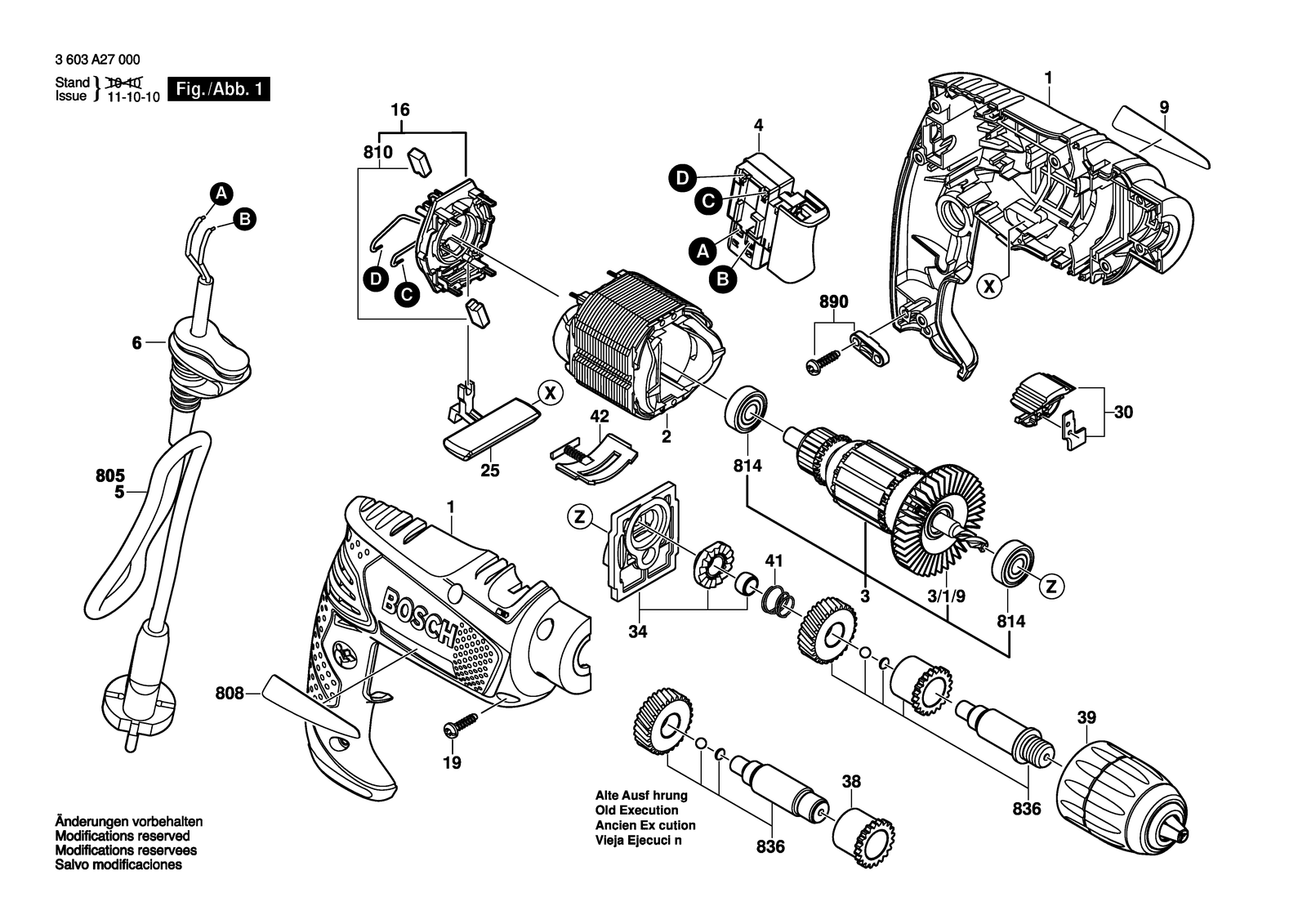

All parts of Bosch PSB 500 RE: 70 positions on 2 sheets
Bosch PSB 500 RE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609003079 | Housing Section Green |
| 1 | 2609003079 | Housing Section Green |
| 16 | 2609003082 | Brush Holder |
| 16 | 2609003082 | Brush Holder |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2609002875 | Field 220-240V |
| 2 | 2609002875 | Field 220-240V |
| 25 | 2609003083 | Change-Over Switch |
| 25 | 2609003083 | Change-Over Switch |
| 3 | 2609003374 | Armature 220-240V |
| 3 | 2609003374 | Armature 220-240V |
| 3/1/9 | 2609002159 | Fan |
| 3/1/9 | 2609002159 | Fan |
| 30 | 2609004764 | Change-Over Switch |
| 30 | 2609004764 | Change-Over Switch |
| 34 | 2609003086 | Bearing Bracket |
| 34 | 2609005549 | Bearing Bracket |
| 34 | 2609005549 | Bearing Bracket |
| 38 | 2609003094 | Porous Bearing |
| 38 | 2609003094 | Porous Bearing |
| 39 | 1600A00DR5 | Chuck |
| 39 | 1600A00DR5 | Chuck |
| 4 | 2607200655 | Switch |
| 4 | 2607200655 | Switch |
| 41 | 2609003095 | Compression Spring |
| 41 | 2609003095 | Compression Spring |
| 42 | 2609004840 | Shut-off Valve |
| 42 | 2609004840 | Shut-off Valve |
| 5 | 2604460243 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460259 | Power supply cord EU 230V 2,7M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460297 | Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460259 | Power supply cord EU 230V 2,7M 2 X 0,75MM H05 Vv-F |
| 6 | 2609003080 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2609003080 | Grommet Ø6,4-Ø7,2X76 MM |
| 654 | 2602025125 | Auxiliary Handle Black |
| 654 | 2602025125 | Auxiliary Handle Black |
| 655 | 2609005615 | Depth-Gauge |
| 655 | 2609005615 | Depth-Gauge |
| 656/14 | 2609003805 | Lock |
| 656/14 | 2609003805 | Lock |
| 656/810 | 2609004108 | Dust container |
| 656/810 | 2609004108 | Dust container |
| 656/812 | 2600206003 | Friction Ring |
| 656/812 | 2600206003 | Friction Ring |
| 656/9 | 2609002929 | Filter |
| 656/9 | 2609002929 | Filter |
| 808 | 160111A2GV | Nameplate |
| 808 | 2609003429 | Nameplate |
| 808 | 2609003430 | Nameplate |
| 808 | 2609004929 | Nameplate |
| 808 | 2609005802 | Nameplate |
| 808 | 160111A2GX | Nameplate |
| 810 | 2609003994 | Carbon-Brush Set 220-240V |
| 810 | 2609003994 | Carbon-Brush Set 220-240V |
| 814 | 3130900020 | Groove ball bearing 8X22X7 608-2Z/C3 |
| 814 | 3130900020 | Groove ball bearing 8X22X7 608-2Z/C3 |
| 836 | 2609003431 | Drilling Spindle |
| 836 | 2609005551 | Drilling Spindle |
| 836 | 2609005551 | Drilling Spindle |
| 890 | 2607001305 | Fastening parts kit |
| 890 | 2607001305 | Fastening parts kit |
| 9 | 160111C0JJ | Manufacturer's nameplate PSB 560 Re |
| 9 | 161111C045 | Manufacturer's nameplate Psb Easy |
| 9 | 2609003217 | Manufacturer's nameplate PSB 500 Re |
| 9 | 2609003428 | Manufacturer's nameplate PSB 500 Ra |
| 9 | 2609005739 | Manufacturer's nameplate PSB 5000 Re |
| 9 | 2609006716 | Manufacturer's nameplate PSB 450 Re |
| 9 | 2609003217 | Manufacturer's nameplate PSB 500 Re |
| 9 | 2609003428 | Manufacturer's nameplate PSB 500 Ra |
