Bosch PSB 500 RE

Bosch PSB 500 RE percussion drill: exploded parts diagram, 2 sheets, 38 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 500 RE: 38 positions on 2 sheets

Bosch PSB 500 RE parts list (2 sheets)

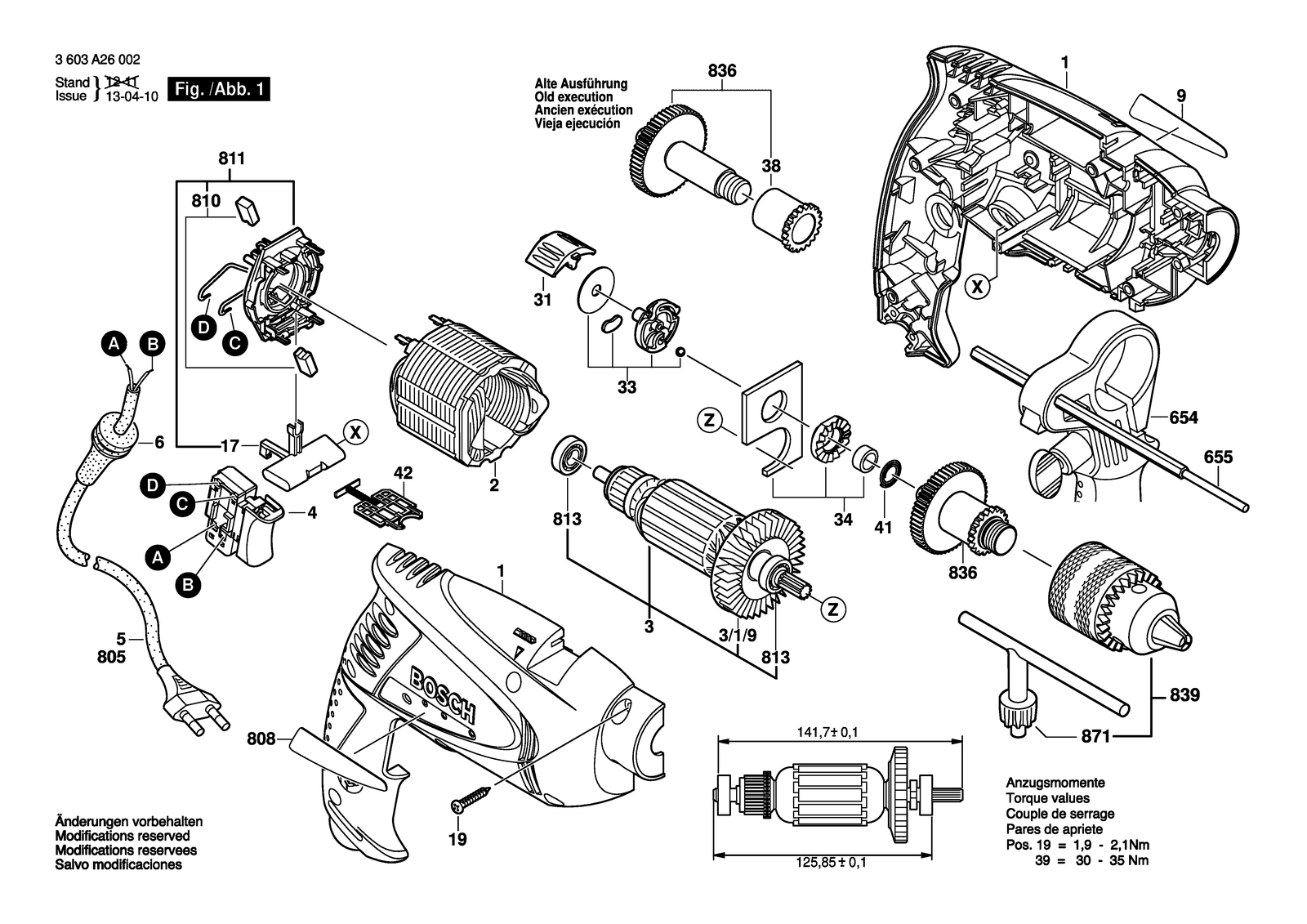

Bosch PSB 500 RE parts diagram, sheet 1Bosch PSB 500 RE parts diagram, sheet 2
No.Part numberPart name
12609003793Housing
172609002160Change-Over Switch
192603490022Screw 4X16
22609003024Field 220-240V
32609002170Armature 220-240V
3/1/92609002159Fan
312609000684Change-Over Switch
332601901012Indexing Disk
342609002255Bearing Bracket
382609002157Porous Bearing
42607200655Switch
412609002581Compression Spring
422609002750Shut-off Valve
51604460433Power supply cord CH 2,65M 2 X 0,75MM H05 Vv-F
52604460243Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
62609002019Grommet
6532607030115Lock Red
6542602025125Auxiliary Handle Black
6552609005615Depth-Gauge
8051607000387Power supply cord CN 2,65M 2 X 0,75MM H05 W-f
8082609002484Nameplate
8082609002485Nameplate
8082609002486Nameplate
8102610391290Carbon-Brush Set
8112609005889Brush Holder
8133130900020Groove ball bearing 8X22X7 608-2Z/C3
8362609002442Spindle
8391608571080Key Chuck Ø1,5-13 MM
8562609000636Exhauster Black
856/102605510217Impulse Starting Device Red
856/162600206003Friction Ring
856/8302605411902Dust Bag Black
856/8802605190920Intake manifold module Black
8712607950007Chuck Wrench SG2
92609002341Manufacturer's nameplate PSB 500 Re
92609002489Manufacturer's nameplate PSB 530 Re
92609004873Manufacturer's nameplate PSB 5000 Re
92609004874Manufacturer's nameplate PSB 450 Re
