Bosch PSB 500 RE

Bosch PSB 500 RE percussion drill: exploded parts diagram, 1 sheet, 42 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 500 RE: 42 positions on 1 sheet

Bosch PSB 500 RE parts list (1 sheet)

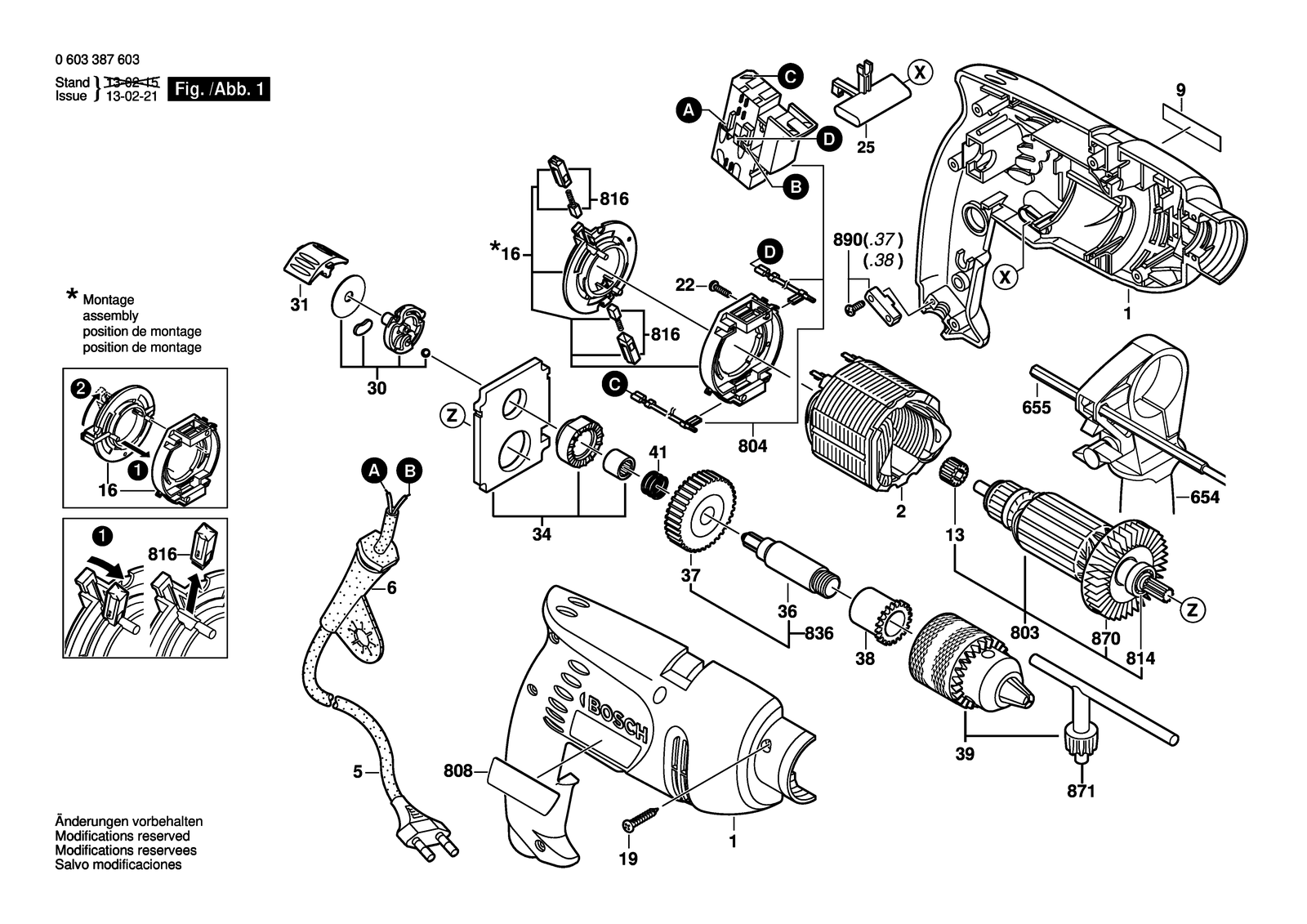

Bosch PSB 500 RE parts diagram, sheet 1
No.Part numberPart name
12605104766Housing Section
132600301068Sintered-Metal Bushing
162604337101Brush Plate
162609995469Brush Plate
192603490022Screw 4X16
22604220601Field 220-240V
22604220654Field 100-110V
222910611002Tapping Screw DIN 7981-ST2,2X9,5-C-H
252602098008Change-Over Switch Red
302601901012Indexing Disk
312601990029Change-Over Switch
342605807107Bearing Bracket
362606135081Drilling Spindle 1/2"
372606320081Cylindrical Gear
382600301066Porous Bearing
391608571080Key Chuck Ø1,5-13 MM
412604616006Compression Spring
52604460135Power supply cord J 2,5M 2 X 0,75MM Pvc
52604460147Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
52604460259Power supply cord EU 230V 2,7M 2 X 0,75MM H05 Vv-F
52604460292Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F
62600707066Grommet Ø6,2-Ø6,9X90 MM
6542602025125Auxiliary Handle Black
6542602025137Auxiliary Handle Power Light
6552609005615Depth-Gauge
8032604011315Armature 230-240V
8032604011328Armature 100V
8042609002056On-Off Switch
8082601116398Nameplate
8082601117919Nameplate
8082601117967Nameplate
8082601117969Nameplate
8082601117970Nameplate
8143130900020Groove ball bearing 8X22X7 608-2Z/C3
8162607014013Carbon-Brush Set
8162609160125Carbon-Brush Set
8362606135935Drilling Spindle
8702606610097Fan
8712607950007Chuck Wrench SG2
8902607001305Fastening parts kit
92601116368Manufacturer's nameplate
92601117918Manufacturer's nameplate PSB 500 Re
