Bosch PSB 500
Bosch PSB 500 percussion drill: exploded parts diagram, 2 sheets, 107 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

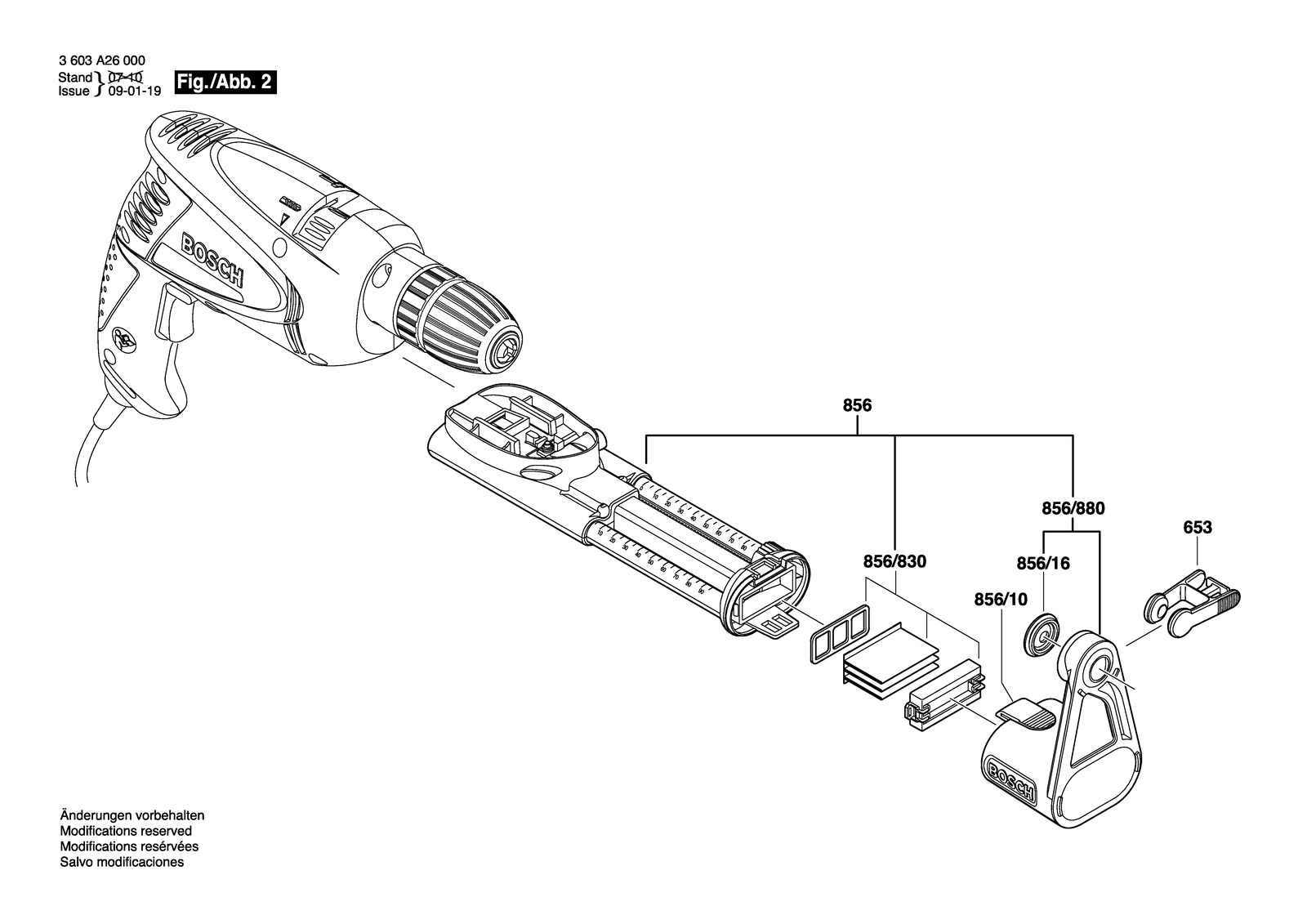

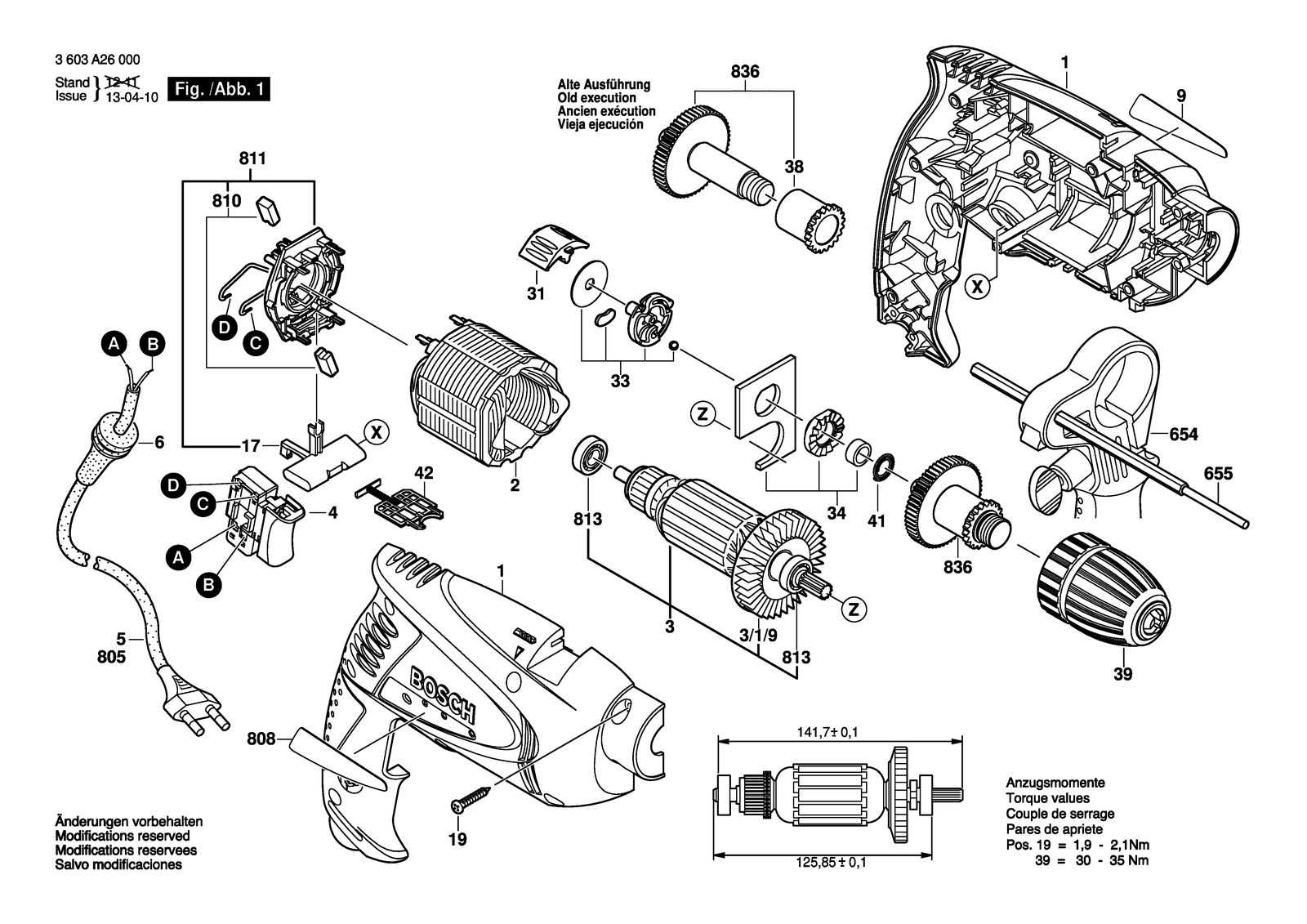

All parts of Bosch PSB 500: 107 positions on 2 sheets
Bosch PSB 500 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609003793 | Housing |
| 1 | 2609003793 | Housing |
| 1 | 2609003793 | Housing |
| 17 | 2609002160 | Change-Over Switch |
| 17 | 2609002160 | Change-Over Switch |
| 17 | 2609002160 | Change-Over Switch |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2609003024 | Field 220-240V |
| 2 | 2609003024 | Field 220-240V |
| 2 | 2609003024 | Field 220-240V |
| 3 | 2609002170 | Armature 220-240V |
| 3 | 2609002170 | Armature 220-240V |
| 3 | 2609002170 | Armature 220-240V |
| 3/1/9 | 2609002159 | Fan |
| 3/1/9 | 2609002159 | Fan |
| 3/1/9 | 2609002159 | Fan |
| 31 | 2609000684 | Change-Over Switch |
| 31 | 2609000684 | Change-Over Switch |
| 31 | 2609000684 | Change-Over Switch |
| 33 | 2601901012 | Indexing Disk |
| 33 | 2601901012 | Indexing Disk |
| 33 | 2601901012 | Indexing Disk |
| 34 | 2609002255 | Bearing Bracket |
| 34 | 2609002255 | Bearing Bracket |
| 34 | 2609002255 | Bearing Bracket |
| 38 | 2609002157 | Porous Bearing |
| 38 | 2609002157 | Porous Bearing |
| 38 | 2609002157 | Porous Bearing |
| 39 | 2609002051 | Keyless Chuck |
| 39 | 2609002051 | Keyless Chuck |
| 39 | 2609002051 | Keyless Chuck |
| 4 | 2607200655 | Switch |
| 4 | 2607200655 | Switch |
| 4 | 2607200655 | Switch |
| 41 | 2609002581 | Compression Spring |
| 41 | 2609002581 | Compression Spring |
| 41 | 2609002581 | Compression Spring |
| 42 | 2609002750 | Shut-off Valve |
| 42 | 2609002750 | Shut-off Valve |
| 42 | 2609002750 | Shut-off Valve |
| 5 | 1604460433 | Power supply cord CH 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460243 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460297 | Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F |
| 5 | 1604460433 | Power supply cord CH 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460243 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1604460433 | Power supply cord CH 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460243 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 6 | 2609002019 | Grommet |
| 6 | 2609002019 | Grommet |
| 6 | 2609002019 | Grommet |
| 653 | 2607030115 | Lock Red |
| 653 | 2607030115 | Lock Red |
| 653 | 2607030115 | Lock Red |
| 654 | 2602025125 | Auxiliary Handle Black |
| 654 | 2602025125 | Auxiliary Handle Black |
| 654 | 2602025125 | Auxiliary Handle Black |
| 655 | 2609005615 | Depth-Gauge |
| 655 | 2609005615 | Depth-Gauge |
| 655 | 2609005615 | Depth-Gauge |
| 805 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 805 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 805 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 808 | 2609002345 | Nameplate |
| 808 | 2609002346 | Nameplate |
| 808 | 2609002347 | Nameplate |
| 808 | 2609002348 | Nameplate |
| 808 | 2609002481 | Nameplate |
| 808 | 2609002482 | Nameplate |
| 808 | 2609002483 | Nameplate |
| 808 | 2609002349 | Nameplate |
| 808 | 2609002350 | Nameplate |
| 808 | 2609002351 | Nameplate |
| 810 | 2610391290 | Carbon-Brush Set |
| 810 | 2610391290 | Carbon-Brush Set |
| 810 | 2610391290 | Carbon-Brush Set |
| 811 | 2609005889 | Brush Holder |
| 811 | 2609005889 | Brush Holder |
| 811 | 2609005889 | Brush Holder |
| 813 | 3130900020 | Groove ball bearing 8X22X7 608-2Z/C3 |
| 813 | 3130900020 | Groove ball bearing 8X22X7 608-2Z/C3 |
| 813 | 3130900020 | Groove ball bearing 8X22X7 608-2Z/C3 |
| 836 | 2609002442 | Spindle |
| 836 | 2609002442 | Spindle |
| 836 | 2609002442 | Spindle |
| 856 | 2609000636 | Exhauster Black |
| 856 | 2609000636 | Exhauster Black |
| 856 | 2609000636 | Exhauster Black |
| 856/10 | 2605510217 | Impulse Starting Device Red |
| 856/10 | 2605510217 | Impulse Starting Device Red |
| 856/10 | 2605510217 | Impulse Starting Device Red |
| 856/16 | 2600206003 | Friction Ring |
| 856/16 | 2600206003 | Friction Ring |
| 856/16 | 2600206003 | Friction Ring |
| 856/830 | 2605411902 | Dust Bag Black |
| 856/830 | 2605411902 | Dust Bag Black |
| 856/830 | 2605411902 | Dust Bag Black |
| 856/880 | 2605190920 | Intake manifold module Black |
| 856/880 | 2605190920 | Intake manifold module Black |
| 856/880 | 2605190920 | Intake manifold module Black |
| 9 | 2609002341 | Manufacturer's nameplate PSB 500 Re |
| 9 | 2609002487 | Manufacturer's nameplate PSB 550 Re |
| 9 | 2609002911 | Manufacturer's nameplate PSB 28 Re |
| 9 | 2609003993 | Manufacturer's nameplate PSB 50 |
| 9 | 2609002487 | Manufacturer's nameplate PSB 550 Re |
| 9 | 2609002342 | Manufacturer's nameplate PSB 530 Ra |
