Bosch PSB 500-2

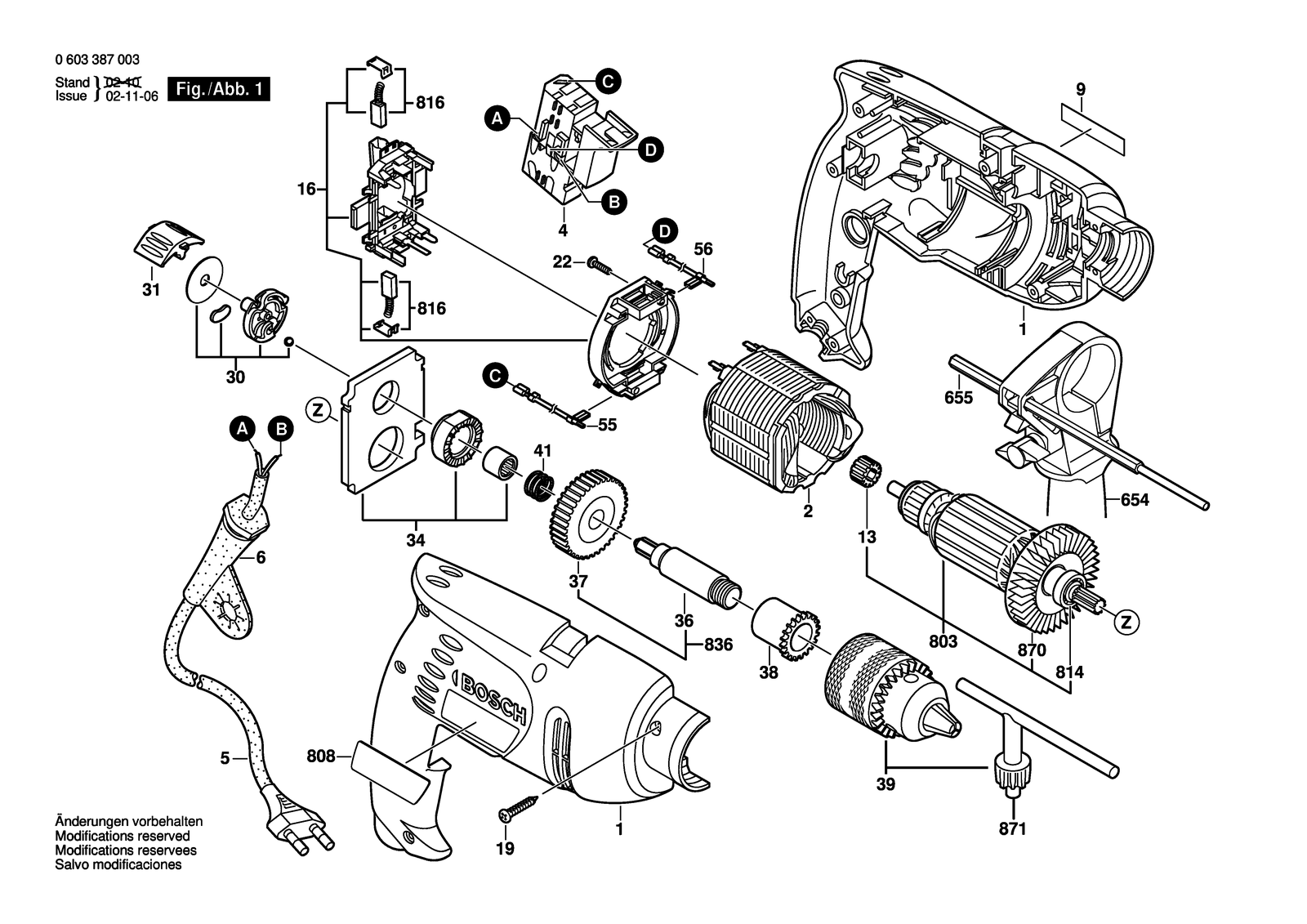

Bosch PSB 500-2 percussion drill: exploded parts diagram, 1 sheet, 62 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 500-2: 62 positions on 1 sheet
Bosch PSB 500-2 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104779 | Housing Section |
| 1 | 2605104779 | Housing Section |
| 13 | 2600301068 | Sintered-Metal Bushing |
| 13 | 2600301068 | Sintered-Metal Bushing |
| 16 | 1600A012AZ | Brush Plate |
| 16 | 1600A012AZ | Brush Plate |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220601 | Field 220-240V |
| 2 | 2604220601 | Field 220-240V |
| 22 | 2910611002 | Tapping Screw DIN 7981-ST2,2X9,5-C-H |
| 22 | 2910611002 | Tapping Screw DIN 7981-ST2,2X9,5-C-H |
| 30 | 2601901012 | Indexing Disk |
| 30 | 2601901012 | Indexing Disk |
| 31 | 2601990029 | Change-Over Switch |
| 31 | 2601990029 | Change-Over Switch |
| 34 | 2605807107 | Bearing Bracket |
| 34 | 2605807107 | Bearing Bracket |
| 36 | 2606135081 | Drilling Spindle 1/2" |
| 36 | 2606135081 | Drilling Spindle 1/2" |
| 37 | 2606320081 | Cylindrical Gear |
| 37 | 2606320081 | Cylindrical Gear |
| 38 | 2600301066 | Porous Bearing |
| 38 | 2600301066 | Porous Bearing |
| 39 | 1608571080 | Key Chuck Ø1,5-13 MM |
| 39 | 1608571080 | Key Chuck Ø1,5-13 MM |
| 4 | 2607200562 | Switch Black |
| 4 | 2607200593 | Switch |
| 41 | 2604616006 | Compression Spring |
| 41 | 2604616006 | Compression Spring |
| 5 | 2604460147 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460259 | Power supply cord EU 230V 2,7M 2 X 0,75MM H05 Vv-F |
| 5 | 2604460147 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460259 | Power supply cord EU 230V 2,7M 2 X 0,75MM H05 Vv-F |
| 55 | 2604448034 | Connecting Cable White L=88 MM |
| 55 | 2604448034 | Connecting Cable White L=88 MM |
| 56 | 2604448109 | Connecting Cable White L=115 MM |
| 56 | 2604448109 | Connecting Cable White L=115 MM |
| 6 | 2600707066 | Grommet Ø6,2-Ø6,9X90 MM |
| 6 | 2600707066 | Grommet Ø6,2-Ø6,9X90 MM |
| 654 | 2602025094 | Auxiliary Handle |
| 654 | 2602025094 | Auxiliary Handle |
| 655 | 2609005615 | Depth-Gauge |
| 655 | 2609005615 | Depth-Gauge |
| 803 | 2604011314 | Armature 230-240V |
| 803 | 2604011314 | Armature 230-240V |
| 808 | 2601117917 | Nameplate |
| 808 | 2601117920 | Nameplate |
| 808 | 2601117943 | Nameplate |
| 808 | 2601117962 | Nameplate |
| 814 | 3130900020 | Groove ball bearing 8X22X7 608-2Z/C3 |
| 814 | 3130900020 | Groove ball bearing 8X22X7 608-2Z/C3 |
| 816 | 2604321925 | Carbon-Brush Set |
| 816 | 2604321925 | Carbon-Brush Set |
| 836 | 2606135935 | Drilling Spindle |
| 836 | 2606135935 | Drilling Spindle |
| 870 | 2606610097 | Fan |
| 870 | 2606610097 | Fan |
| 871 | 2607950007 | Chuck Wrench SG2 |
| 871 | 2607950007 | Chuck Wrench SG2 |
| 9 | 2601117916 | Manufacturer's nameplate |
| 9 | 2601117942 | Manufacturer's nameplate |
