Bosch PSB 5-15 RE

Bosch PSB 5-15 RE percussion drill: exploded parts diagram, 1 sheet, 38 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 5-15 RE: 38 positions on 1 sheet

Bosch PSB 5-15 RE parts list (1 sheet)

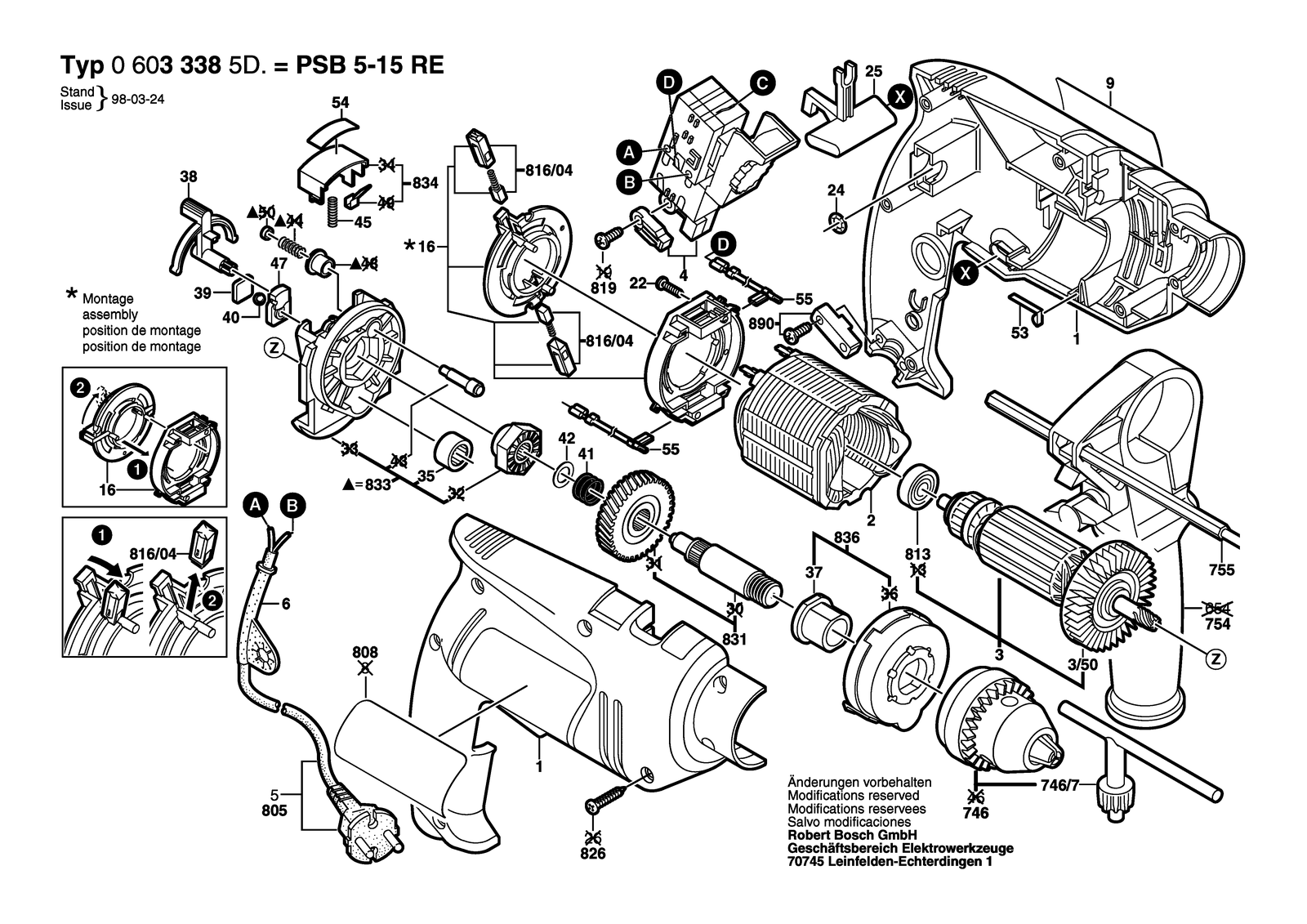

Bosch PSB 5-15 RE parts diagram, sheet 1
No.Part numberPart name
12605104560Housing Section Green
162604337059Brush Plate
22604220594Field 220-240V
222910611002Tapping Screw DIN 7981-ST2,2X9,5-C-H
241900210000O-Ring 5,0X1,5 MM
252602098008Change-Over Switch Red
32604011154Armature 220-240V
3/502606610029Fan
352600914019Needle bearing
372600301052Porous Bearing
382601990010Indexing Disk Black
392601074004Pressure Plate
42607200556Switch
401903230009Ball DIN 5401-5 G28
412604616006Compression Spring
422600101047Shim 0,3 MM
452604610047Compression Spring
472608040120Frame
532601329043Contact Strap
542601119602Reference Plate Red
551614431025Pvc-Insulated Cable L=95 MM
62600707066Grommet Ø6,2-Ø6,9X90 MM
7462608571056Key Chuck 1/2"
746/72607950007Chuck Wrench SG2
7542602025102Auxiliary Handle 1/2"
7552603001019Depth-Gauge
8051607000388Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F
8082601119620Marking Plate
8132600905032Ball Bearing 7X19X6
816/042607014017Carbon-Brush Set
8192910611006Tapping Screw DIN 7981-ST2,9X13-C-H
8262910611020Tapping Screw DIN 7981-ST3,9X19-C-H
8312606135929Drilling Spindle 1/2"
8332605807932Bearing Bracket
8342603231040Push-Button Black
8362605808922Gear Cover Green
8902607001305Fastening parts kit
92601119898Manufacturer's nameplate
