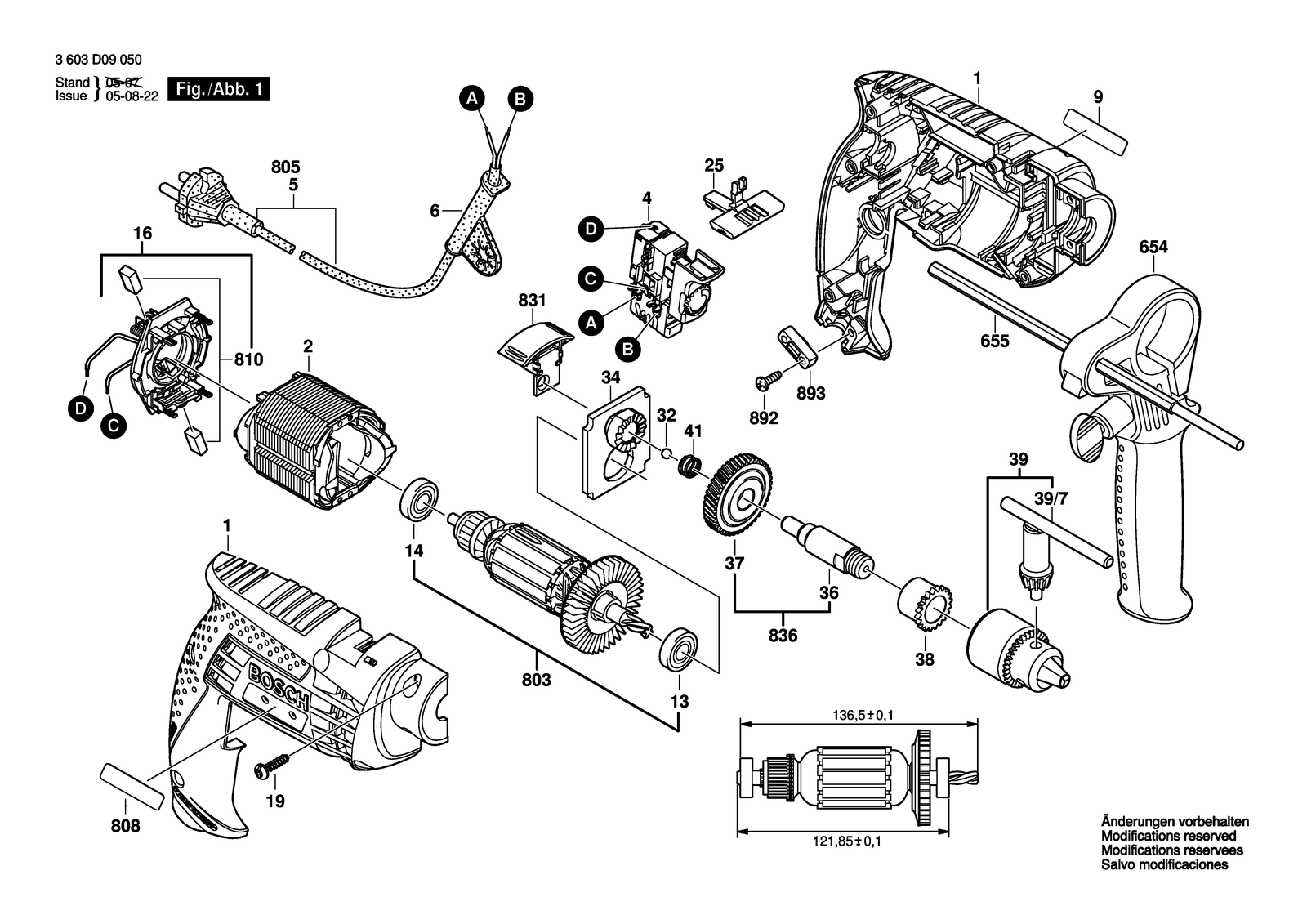

Bosch PSB 450 RE percussion drill: exploded parts diagram, 1 sheet, 54 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 450 RE: 54 positions on 1 sheet
Bosch PSB 450 RE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609100450 | Housing |
| 1 | 2609100578 | Housing Green |
| 13 | 2609110153 | Ball Bearing 8X22X7 |
| 13 | 2609110153 | Ball Bearing 8X22X7 |
| 14 | 2609110491 | Ball Bearing |
| 14 | 2609110491 | Ball Bearing |
| 16 | 2609120318 | Brush Plate |
| 16 | 2609120318 | Brush Plate |
| 19 | 2603490022 | Screw 4X16 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220654 | Field 100-110V |
| 2 | 2604220654 | Field 100-110V |
| 25 | 2609100580 | Lever |
| 25 | 2609100580 | Lever |
| 32 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 32 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 34 | 2609199073 | Bearing Bracket |
| 34 | 2609199073 | Bearing Bracket |
| 36 | 2609110440 | Spindle |
| 36 | 2609110441 | Drilling Spindle |
| 37 | 2606320092 | Conversion Gear |
| 37 | 2606320092 | Conversion Gear |
| 38 | 2609110442 | Sintered-Metal Bushing |
| 38 | 2609110442 | Sintered-Metal Bushing |
| 39 | 1608571079 | Chuck Ø1,0-10 Mm, 3/8" |
| 39/7 | 2607950007 | Chuck Wrench SG2 |
| 4 | 2607200625 | Switch |
| 4 | 2607200624 | Switch |
| 41 | 2604616006 | Compression Spring |
| 41 | 2604616006 | Compression Spring |
| 5 | 2604460135 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2609120374 | Power supply cord |
| 6 | 2600707061 | Grommet Ø8,8 MM |
| 6 | 2600707061 | Grommet Ø8,8 MM |
| 654 | 2602025094 | Auxiliary Handle |
| 654 | 2602025094 | Auxiliary Handle |
| 655 | 2609005615 | Depth-Gauge |
| 655 | 2609005615 | Depth-Gauge |
| 803 | 2609120230 | Armature 100V |
| 803 | 2609120230 | Armature 100V |
| 808 | 2609130937 | Nameplate |
| 808 | 2609132675 | Nameplate |
| 810 | 2609160125 | Carbon-Brush Set |
| 810 | 2609160125 | Carbon-Brush Set |
| 831 | 2609160127 | Change-Over Switch |
| 831 | 2609160127 | Change-Over Switch |
| 836 | 2609160122 | Drilling Spindle |
| 836 | 2609160123 | Drilling Spindle |
| 892 | 2603490022 | Screw 4X16 |
| 892 | 2603490022 | Screw 4X16 |
| 893 | 1611035005 | Cable Clip |
| 893 | 1611035005 | Cable Clip |
| 9 | 2609130938 | Manufacturer's nameplate PSB 450 Re |
| 9 | 1601118D23 | Nameplate PSB 620 Re |
