Bosch PSB 420-2 percussion drill: exploded parts diagram, 1 sheet, 28 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 420-2: 28 positions on 1 sheet

Bosch PSB 420-2 parts list (1 sheet)

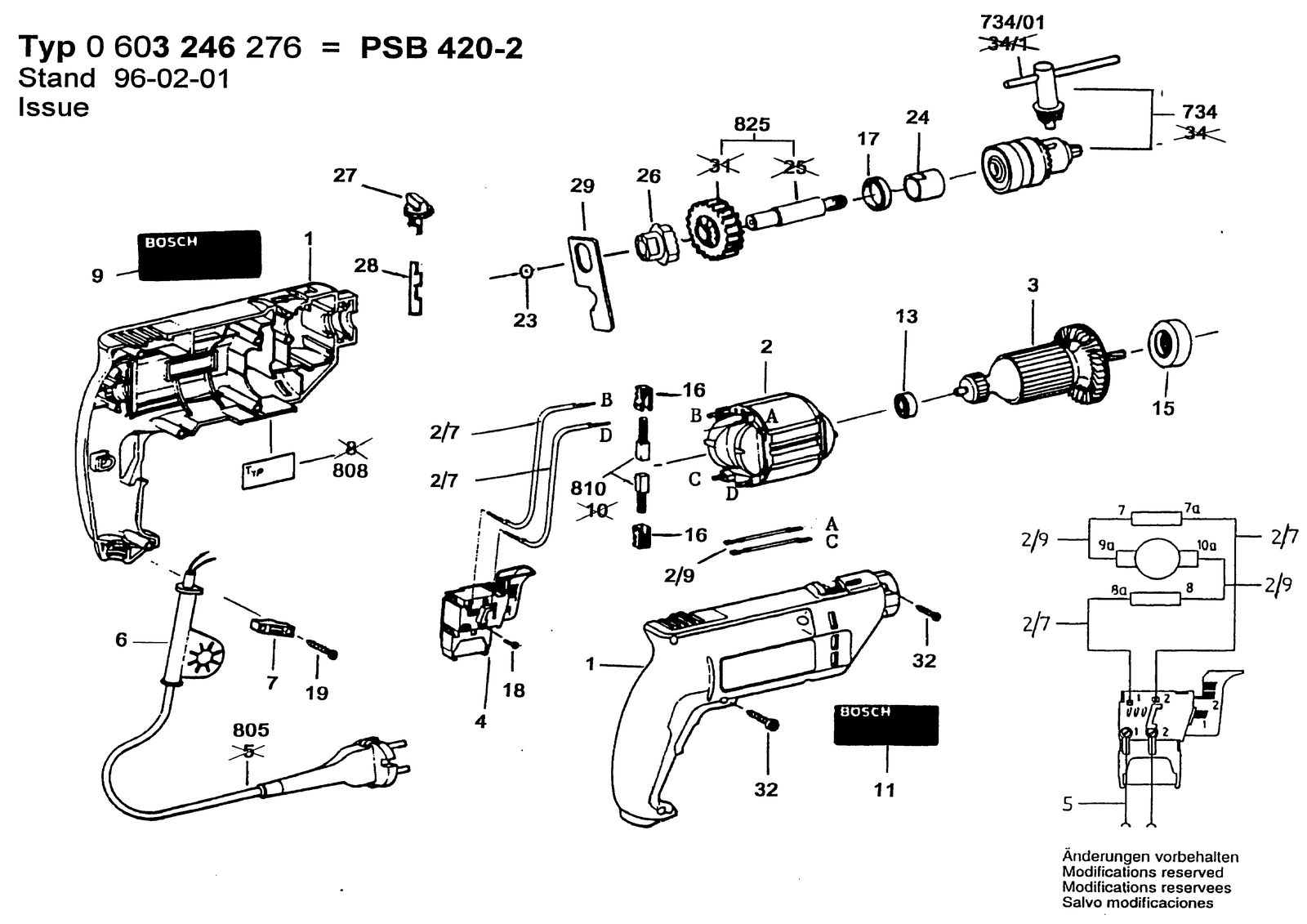

Bosch PSB 420-2 parts diagram, sheet 1
No.Part numberPart name
19618089205Housing Section Green
119618089306Manufacturer's nameplate
159618089281Groove ball bearing
169618086695Brush Holder
171600205032Felt Washer
182603410001Socket head cap screw M3X6,5-4.8
192910211011Tapping Screw DIN 7971-BZ3,5X13
29618086999Field 220V
2/72604448018Connecting Cable White L=124 MM
2/92604448018Connecting Cable White L=124 MM
239618083800Ball
249618086698Sintered-Metal Bushing
269618087166Locating Washer
279618089017Switch Button
28F000600146Shifter Rod
299618087096Switch Slide
39618086807Armature With Fan 220V
322910211011Tapping Screw DIN 7971-BZ3,5X13
42607200376On-Off Switch
62600707059Grommet Ø6,9 MM
72601035001Cable Clip
7341607000F3WKey Chuck
89618089309Marking Plate
8051607000386Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F
808160111A3H3Nameplate
8109618089289Carbon-Brush Set
8259618089303Drilling Spindle 3/8"
99618089305Manufacturer's nameplate
