Bosch PSB 42 RE

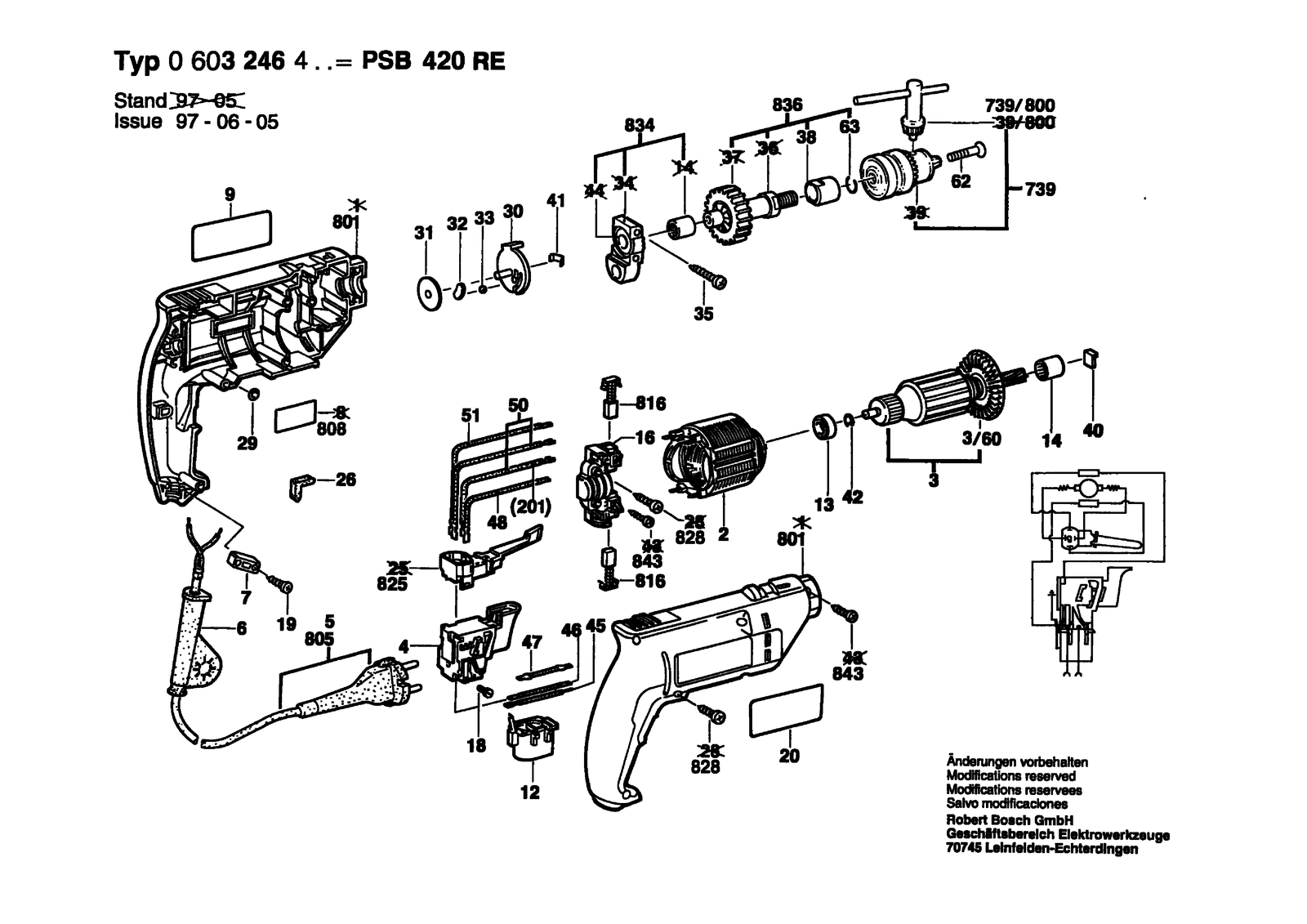

Bosch PSB 42 RE dummy: exploded parts diagram, 1 sheet, 67 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 42 RE: 67 positions on 1 sheet
Bosch PSB 42 RE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 12 | 2607329114 | Suppression Filter |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 2600917003 | Needle-Roller Bearing Ø8X8 MM |
| 16 | 2609992606 | Brush Plate |
| 16 | 2609992607 | Brush Plate |
| 16 | 2609992617 | Brush Plate |
| 16 | 2609992618 | Brush Plate |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 19 | 2603490022 | Screw 4X16 |
| 2 | 2604220390 | Field 110-115V |
| 2 | 2604220392 | Field 230V |
| 2 | 2604220423 | Field 220-240V |
| 2 | 2604220446 | Field 100V |
| 20 | 2601110560 | Sticker Shadow Side |
| 20 | 2601118113 | Reference Plate Shadow Side |
| 201 | 2604448115 | Connecting Cable White L=73 MM |
| 26 | 2601022000 | Damping Plate |
| 29 | 1900210000 | O-Ring 5,0X1,5 MM |
| 3 | 2604010705 | Armature 100V |
| 3 | 2604010706 | Armature 110-115V |
| 3 | 2604010707 | Armature 220-240V |
| 3/60 | 1619P11262 | Fan |
| 30 | 2601990000 | Indexing Disk |
| 31 | 2600100034 | Supporting Disc |
| 32 | 2600025005 | Pressure Plate |
| 33 | 1903230011 | Ball DIN 5401-6 G28 |
| 35 | 2910951132 | Oval-Head Screw DIN 7985-M4X25-8.8 |
| 38 | 2600301013 | Sintered-Metal Bushing |
| 4 | 2607200187 | Switch |
| 4 | 2607200202 | Switch |
| 40 | 2601330005 | Pressure Plate |
| 41 | 2601290014 | Disc Spring |
| 42 | 2916640004 | Spring retaining ring DIN 471-7X0,8-FST |
| 45 | 2604448103 | Earth Conductor |
| 46 | 2604448060 | Cable White L=173 MM |
| 47 | 2604448045 | Cable Black L=98 MM |
| 48 | 2604448034 | Connecting Cable White L=88 MM |
| 5 | 1604460432 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604420153 | Power supply cord |
| 5 | 2604460147 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460157 | Power supply cord AUS 2,6M 2 X 0,75MM Pvc |
| 5 | 2604460249 | Power supply cord SAM 2,7M 2 X 0,82MM SJ 18/2 |
| 5 | 2604460283 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 50 | 2604448115 | Connecting Cable White L=73 MM |
| 50 | 2604448147 | Connecting Cable White L=85 MM |
| 51 | 2604448132 | Connecting Cable Blue L=103 MM |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 6 | 2600707061 | Grommet Ø8,8 MM |
| 62 | 2603421209 | Countersunk-Head Screw Lefthand Threads M6X31 MM |
| 63 | 2604601004 | Retaining ring |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 739 | 1608571061 | Key Chuck 1/2"-20 Unf |
| 739/800 | 2607950007 | Chuck Wrench SG2 |
| 801 | 2605104837 | Housing Section Green |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 816 | 2604321905 | Carbon-Brush Set |
| 816 | 2604321916 | Carbon-Brush Set |
| 825 | 2607200231 | Change-Over Switch |
| 828 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 834 | 2605807917 | Bushing |
| 836 | 2606135910 | Drilling Spindle Z= 45 |
| 843 | 2910611006 | Tapping Screw DIN 7981-ST2,9X13-C-H |
| 9 | 2601118031 | Sticker Sunny Side |
| 9 | 2601118112 | Manufacturer's nameplate |
