Bosch PSB 400-2

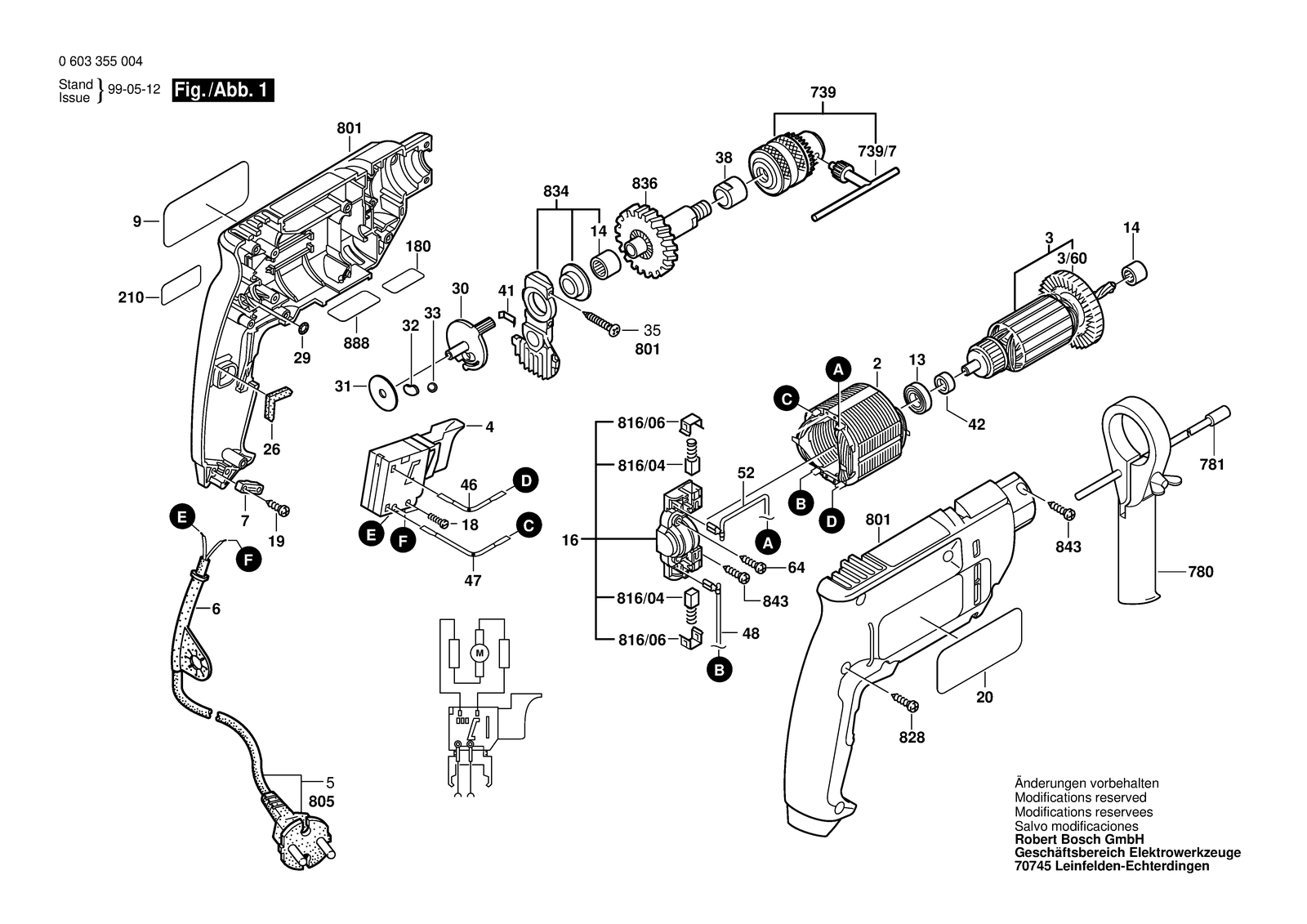

Bosch PSB 400-2 percussion drill: exploded parts diagram, 1 sheet, 102 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 400-2: 102 positions on 1 sheet
Bosch PSB 400-2 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | 2600905046 | Groove ball bearing 8X19X6 |
| 13 | 2600905046 | Groove ball bearing 8X19X6 |
| 14 | 2609110136 | Needle bearing |
| 14 | 2609110136 | Needle bearing |
| 16 | 2609992607 | Brush Plate |
| 16 | 2609992617 | Brush Plate |
| 16 | 2609992618 | Brush Plate |
| 16 | 2609992617 | Brush Plate |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 18 | 2603410001 | Socket head cap screw M3X6,5-4.8 |
| 180 | 3601119137 | Warning Plate Caution |
| 19 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 19 | 2910611019 | Tapping Screw DIN 7981-ST3,9X16-C-H |
| 2 | 2604220423 | Field 220-240V |
| 2 | 2604220432 | Field 115V |
| 2 | 2604220432 | Field 115V |
| 20 | 2601119143 | Sticker Shadow Side |
| 20 | 2601119149 | Sticker Shadow Side |
| 20 | 2609130057 | Manufacturer's nameplate Shadow Side |
| 20 | 2609130057 | Manufacturer's nameplate Shadow Side |
| 210 | 2609130018 | Reference Plate |
| 210 | 2609130018 | Reference Plate |
| 26 | 2601022000 | Damping Plate |
| 26 | 2601022000 | Damping Plate |
| 29 | 1900210000 | O-Ring 5,0X1,5 MM |
| 29 | 1900210000 | O-Ring 5,0X1,5 MM |
| 3 | 2604011243 | Armature With Fan 220-240V |
| 3 | 2604011244 | Armature With Fan 115V |
| 3 | 2604011245 | Armature With Fan 100V |
| 3 | 2604011244 | Armature With Fan 115V |
| 3/60 | 1619P11262 | Fan |
| 3/60 | 1619P11262 | Fan |
| 30 | 2601990000 | Indexing Disk |
| 30 | 2601990000 | Indexing Disk |
| 31 | 2600100034 | Supporting Disc |
| 31 | 2600100034 | Supporting Disc |
| 32 | 2600025005 | Pressure Plate |
| 32 | 2600025005 | Pressure Plate |
| 33 | 1903230011 | Ball DIN 5401-6 G28 |
| 33 | 1903230011 | Ball DIN 5401-6 G28 |
| 35 | 2910951132 | Oval-Head Screw DIN 7985-M4X25-8.8 |
| 35 | 2910951132 | Oval-Head Screw DIN 7985-M4X25-8.8 |
| 38 | 2600301013 | Sintered-Metal Bushing |
| 38 | 2600301013 | Sintered-Metal Bushing |
| 4 | 2607200373 | Switch |
| 4 | 2607200374 | On-Off Switch |
| 4 | 2607200375 | Switch |
| 4 | 2607200374 | On-Off Switch |
| 41 | 2601290014 | Disc Spring |
| 41 | 2601290014 | Disc Spring |
| 42 | 2600209004 | Spacer Ring |
| 42 | 2600209004 | Spacer Ring |
| 46 | 2604448060 | Cable White L=173 MM |
| 46 | 2604448060 | Cable White L=173 MM |
| 47 | 2604448045 | Cable Black L=98 MM |
| 47 | 2604448045 | Cable Black L=98 MM |
| 48 | 2604448130 | Connecting Cable White L=88 MM |
| 48 | 2604448130 | Connecting Cable White L=88 MM |
| 5 | 2604460135 | Power supply cord J 2,5M 2 X 0,75MM Pvc |
| 5 | 2604460140 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460249 | Power supply cord SAM 2,7M 2 X 0,82MM SJ 18/2 |
| 5 | 2604460282 | Power supply cord I / BR 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460292 | Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F |
| 52 | 2604448123 | Connecting Cable White L=73 MM |
| 52 | 2604448123 | Connecting Cable White L=73 MM |
| 6 | 2600707059 | Grommet Ø6,9 MM |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 6 | 2600707061 | Grommet Ø8,8 MM |
| 6 | 2600707060 | Grommet Ø11,6-Ø12,5X84 MM |
| 64 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 7 | 1611035005 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 739 | 1608571047 | Key Chuck Ø 1-10 Mm, 3/8" |
| 739 | 1608571047 | Key Chuck Ø 1-10 Mm, 3/8" |
| 739/7 | 2607950007 | Chuck Wrench SG2 |
| 739/7 | 2607950007 | Chuck Wrench SG2 |
| 780 | 2602025032 | Auxiliary Handle Black Ø43 MM |
| 780 | 2602025032 | Auxiliary Handle Black Ø43 MM |
| 781 | 1613001005 | Depth-Gauge SW 6X210 MM |
| 801 | 2605104837 | Housing Section Green |
| 801 | 2605104837 | Housing Section Green |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 816/04 | 2604321905 | Carbon-Brush Set |
| 816/04 | 2604321914 | Carbon-Brush Set |
| 816/04 | 2604321914 | Carbon-Brush Set |
| 816/06 | 2601322013 | Ratchet Cap |
| 816/06 | 2601322017 | Ratchet Cap |
| 816/06 | 2601322017 | Ratchet Cap |
| 828 | 2910611020 | Tapping Screw DIN 7981-ST3,9X19-C-H |
| 828 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 834 | 2609110137 | Bearing Bracket |
| 834 | 2609110137 | Bearing Bracket |
| 836 | 2606135909 | Drilling Spindle Z=45 |
| 836 | 2606135909 | Drilling Spindle Z=45 |
| 843 | 2910611006 | Tapping Screw DIN 7981-ST2,9X13-C-H |
| 843 | 2910611006 | Tapping Screw DIN 7981-ST2,9X13-C-H |
| 888 | 160111A3H3 | Nameplate |
| 9 | 2601119142 | Sticker Sunny Side |
| 9 | 2601119148 | Sticker Sunny Side |
| 9 | 2609130056 | Manufacturer's nameplate Sunny Side |
| 9 | 2609130056 | Manufacturer's nameplate Sunny Side |
