Bosch PSB 350

Bosch PSB 350 percussion drill: exploded parts diagram, 1 sheet, 37 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 350: 37 positions on 1 sheet

Bosch PSB 350 parts list (1 sheet)

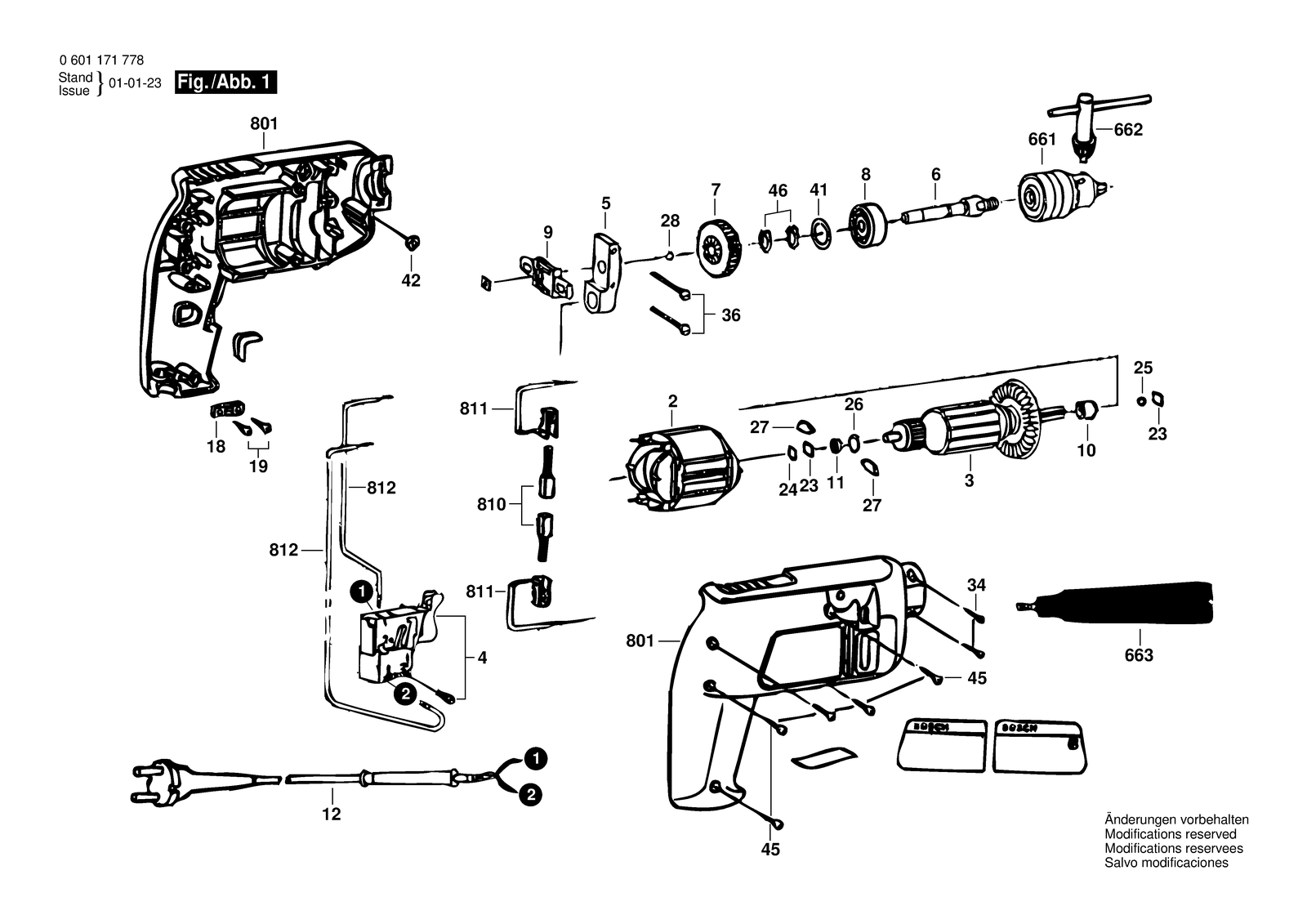

Bosch PSB 350 parts diagram, sheet 1
No.Part numberPart name
10F000600231Needle bearing
111900301004Sintered-Metal Bushing
129618089003Power supply cord
12F000609071Power supply cord BR 2,00M 2 X 0,75MM H05 Vvf
18F000635217Cable Clip
199618087099Screw 4X16 MM
29618085745Field 220V
29618085746Field 127V
231601000013Pressure Plate 1,5 MM
242601000018Intermediate Plate 0,3 MM
251903230009Ball DIN 5401-5 G28
261610210014O-Ring 8,0X2,5 MM
272601020005Lubricating Felt
289618083800Ball
39618083206Armature With Fan 220V
39618083207Armature With Fan 127V
342910211007Tapping Screw DIN 7971-BZ2,9X16
369618084983Screw
42607200187Switch
42607200357Switch
419618083183Washer Thick 0,2 MM
419618083184Washer Thick 0,3 MM
419618083185Washer Thick 0,5 MM
422915011007Hex Nut DIN 934-M6-8-A
459618087099Screw 4X16 MM
462916650001Spring retaining ring DIN 471-10X1MM-FST
59618083219Support
69618083212Spindle
6611608571079Chuck Ø1,0-10 Mm, 3/8"
662F000632059Chuck Wrench
79618089890Toothed Gear
81900905232Groove ball bearing 6200-2Z DIN 625
8019618083767Motor Housing
8101607014117Carbon Brush
8119618086121Brush Holder
812F000635121Connecting Cable White L=124 MM
92601020006Adjusting Slide
