Bosch PSB 24 VE-2 cordl perc screwdr: exploded parts diagram, 1 sheet, 21 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 24 VE-2: 21 positions on 1 sheet

Bosch PSB 24 VE-2 parts list (1 sheet)

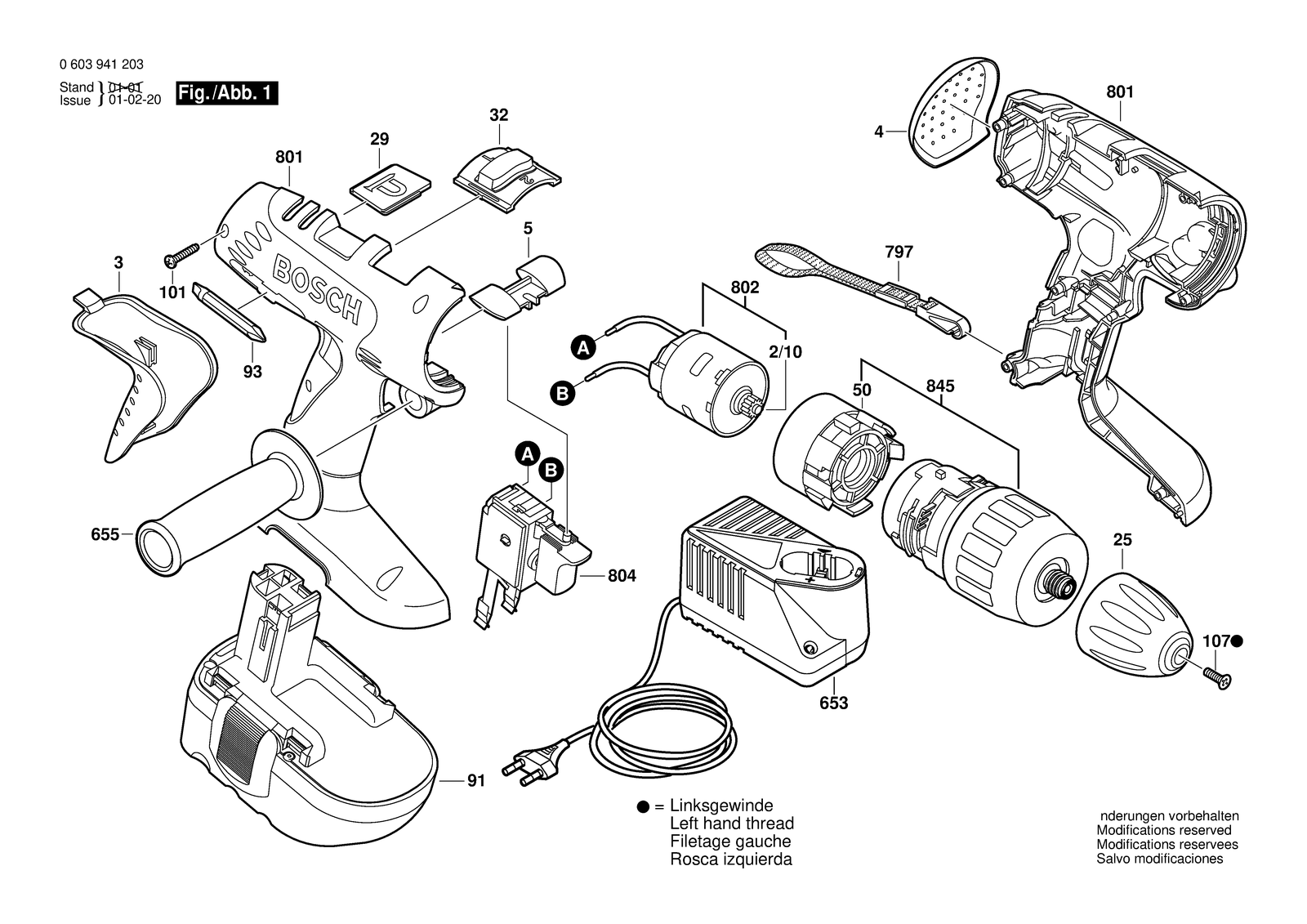

Bosch PSB 24 VE-2 parts diagram, sheet 1
No.Part numberPart name
1012603490018Torx Oval-Head Screw 3X18
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
2/102606316180Pinion Z=19
252608572224Keyless Chuck
292600290043Magnet Disk
32608040154Handle Cover
322601099098Adjusting Slide
42608040157Handle Cover
52601099096Adjusting Slide Red
502605719901Intermediate Flange
6532607224425Fast Charger EU 230/7,2-24V, 1H
6532607224427Fast Charger GB 230/7,2-24V, 1H
6532607224429Fast Charger AUS 240/7,2-24V, 1H
655160202509TAuxiliary Handle
7972601398009Carrying Loop
8012605104809Housing Section
8022607022992DC motor 24V
8042607200423On-Off Switch
8452606200922Planetary Gear Train
912607335561Battery Pack 24V,2,6AH,NIMH
931609200147Screwdriver Blade 6 MM
