Bosch PSB 1800 LI-2 cordless impact drill: exploded parts diagram, 2 sheets, 170 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 1800 LI-2: 170 positions on 2 sheets

Bosch PSB 1800 LI-2 parts list (2 sheets)

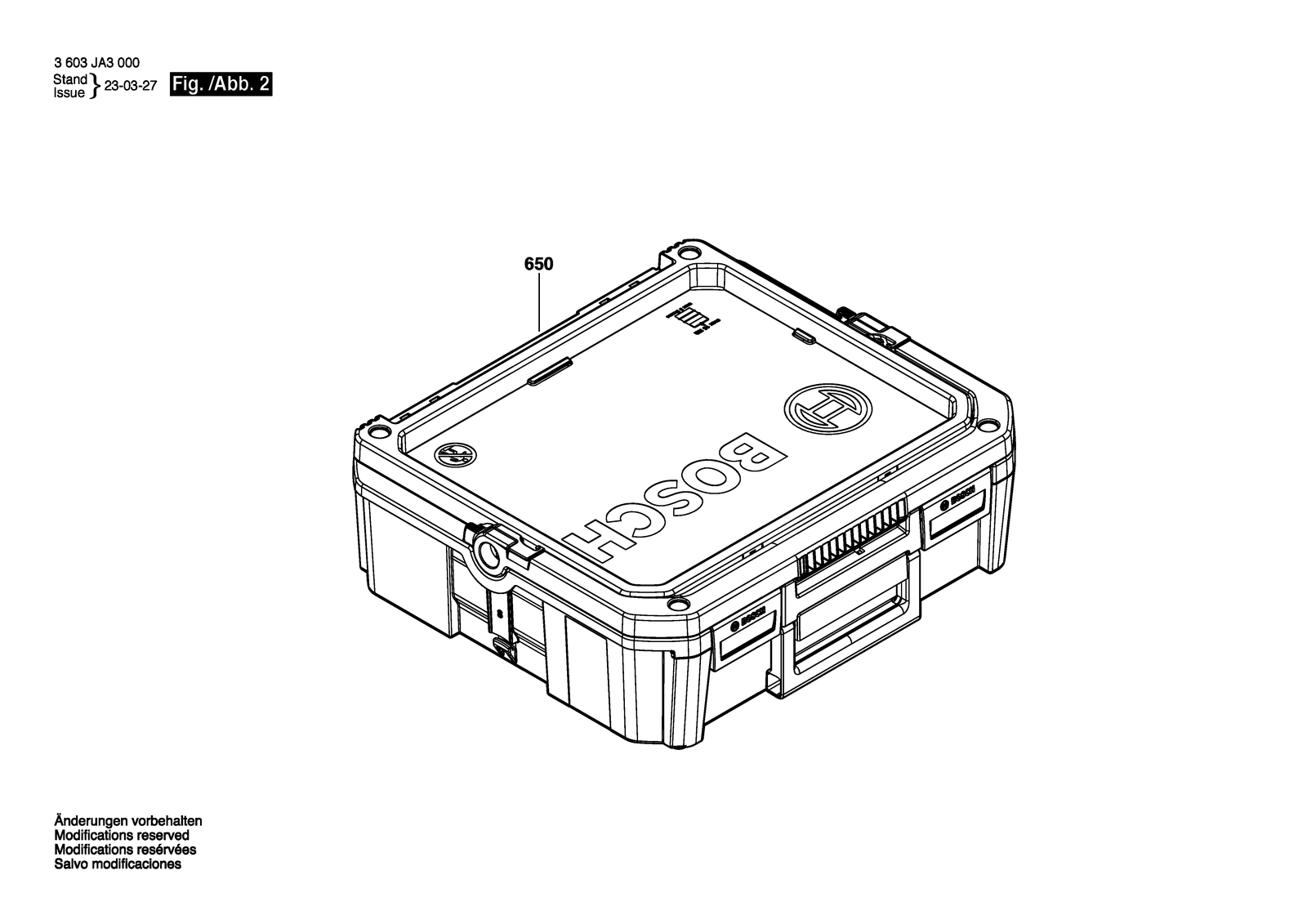

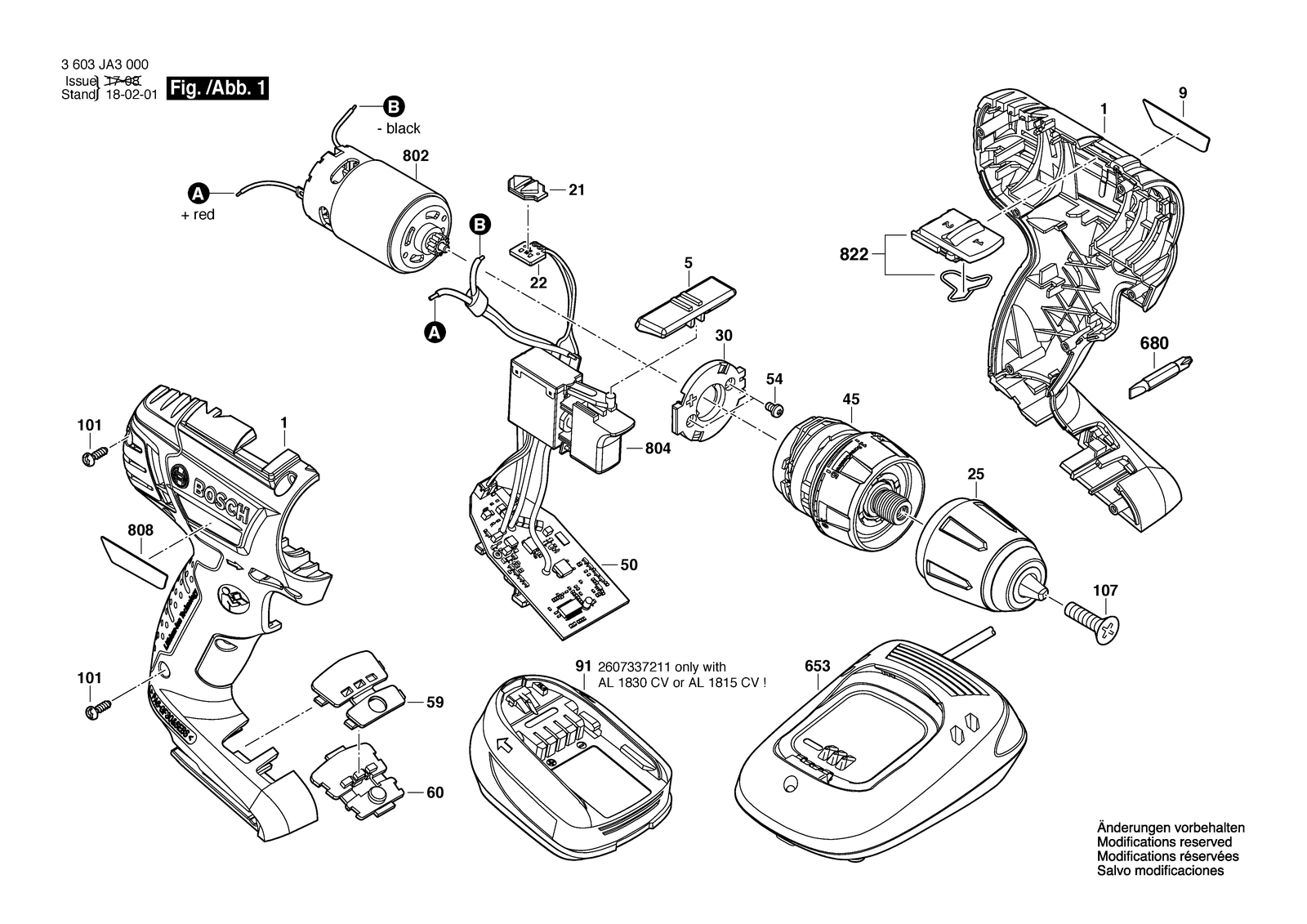

Bosch PSB 1800 LI-2 parts diagram, sheet 1Bosch PSB 1800 LI-2 parts diagram, sheet 2
No.Part numberPart name
12609007176Housing
12609007147Housing
12609007146Housing
12609007147Housing
12609007147Housing
1012603490017Torx Oval-Head Screw 3X10
1012603490017Torx Oval-Head Screw 3X10
1012603490017Torx Oval-Head Screw 3X10
1012603490017Torx Oval-Head Screw 3X10
1012603490017Torx Oval-Head Screw 3X10
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
212609002598Lens
212609002598Lens
212609002598Lens
212609002598Lens
212609002598Lens
222609005142Electronic Assembly
222609005142Electronic Assembly
222609005142Electronic Assembly
222609005142Electronic Assembly
222609005142Electronic Assembly
252609004498Keyless Chuck
252609004498Keyless Chuck
252609006213Keyless Chuck
252609006213Keyless Chuck
252609006213Keyless Chuck
302609005196Flange
302609005196Flange
302609005196Flange
302609005196Flange
302609005196Flange
451600A00Y68Gear Box
451600A00Y68Gear Box
452609006214Gear Box
452609006214Gear Box
452609006214Gear Box
52609004983Lever
52609004983Lever
52609004983Lever
52609004983Lever
52609004983Lever
501600A009B5Electronic Assembly
501600A004BSElectronic Assembly
501600A01PK9Electronic Assembly
501600A009B5Electronic Assembly
501600A004BSElectronic Assembly
501600A01PK9Electronic Assembly
501600A01PK9Electronic Assembly
542603414048Torx SH cap screw M3X5-8.8-Z
542603414048Torx SH cap screw M3X5-8.8-Z
542603414048Torx SH cap screw M3X5-8.8-Z
542603414048Torx SH cap screw M3X5-8.8-Z
542603414048Torx SH cap screw M3X5-8.8-Z
592609004985Cover
592609004985Cover
592609004985Cover
592609004985Cover
592609004985Cover
602609004984Lens
602609004984Lens
602609004984Lens
602609004984Lens
602609004984Lens
6501600A013NMCarrying Case
6501600A013NMCarrying Case
6501600A013NMCarrying Case
6501600A013NMCarrying Case
6501600A013NMCarrying Case
6532607225273Fast Charger EU AL 2204 CV 230/14,4-18V 3H
6532607225275Fast Charger Gb AL 2204 CV 230/14,4-18V 3H
6532607225471Fast Charger EU AL 2215 CV 230/14,4-18V, 1H
6532607225475Charger Aus AL 2215 CV 240/14,4-18V, 1H
6532607225965Fast Charger EU AL 1830 CV 230/14,4-18V 1H
6532607225967Charger Gb AL 1830 CV 230/14,4-18V 1H
6532607226517Charger EU AL 18V-20 230V 2A
6532607225273Fast Charger EU AL 2204 CV 230/14,4-18V 3H
6532607225275Fast Charger Gb AL 2204 CV 230/14,4-18V 3H
6532607225471Fast Charger EU AL 2215 CV 230/14,4-18V, 1H
6532607225475Charger Aus AL 2215 CV 240/14,4-18V, 1H
6532607225965Fast Charger EU AL 1830 CV 230/14,4-18V 1H
6532607225967Charger Gb AL 1830 CV 230/14,4-18V 1H
6532607225969Charger Aus AL 1830 CV 230/14,4-18V 1H
6532607226081Charger Aus AL 1815 CV 240/14,4-18V 3H
6532607226517Charger EU AL 18V-20 230V 2A
6532607225471Fast Charger EU AL 2215 CV 230/14,4-18V, 1H
6532607225965Fast Charger EU AL 1830 CV 230/14,4-18V 1H
6532607225967Charger Gb AL 1830 CV 230/14,4-18V 1H
6532607226517Charger EU AL 18V-20 230V 2A
6532607225273Fast Charger EU AL 2204 CV 230/14,4-18V 3H
6532607225275Fast Charger Gb AL 2204 CV 230/14,4-18V 3H
6532607225471Fast Charger EU AL 2215 CV 230/14,4-18V, 1H
6532607225475Charger Aus AL 2215 CV 240/14,4-18V, 1H
6532607225965Fast Charger EU AL 1830 CV 230/14,4-18V 1H
6532607225967Charger Gb AL 1830 CV 230/14,4-18V 1H
6532607225977Fast Charger Rok AL 1830 CV 230/14,4-18V 1H
6532607226081Charger Aus AL 1815 CV 240/14,4-18V 3H
6532607225273Fast Charger EU AL 2204 CV 230/14,4-18V 3H
6532607225275Fast Charger Gb AL 2204 CV 230/14,4-18V 3H
6532607225965Fast Charger EU AL 1830 CV 230/14,4-18V 1H
6532607225967Charger Gb AL 1830 CV 230/14,4-18V 1H
6532607225977Fast Charger Rok AL 1830 CV 230/14,4-18V 1H
6532607226081Charger Aus AL 1815 CV 240/14,4-18V 3H
6532607226517Charger EU AL 18V-20 230V 2A
6802609160063Screwdriver Bit
6802609160063Screwdriver Bit
6802609160063Screwdriver Bit
6802609160063Screwdriver Bit
6802609160063Screwdriver Bit
8022609005257DC motor 14,4V - 18V
8021607000DM0DC motor 14,4V - 18V
8022609005257DC motor 14,4V - 18V
8022609005257DC motor 14,4V - 18V
8021607000DM0DC motor 14,4V - 18V
8022609005257DC motor 14,4V - 18V
8021607000DM0DC motor 14,4V - 18V
8042609005666Switch
8042609005666Switch
8042609005666Switch
8042609005666Switch
8042609005666Switch
808160111A2CYNameplate
808160111A2D0Nameplate
808160111A75LNameplate
8082609007183Nameplate
808160111A2DLNameplate
808160111A2DNNameplate
808160111A4RCNameplate
808160111A7JRNameplate
808160111A75NNameplate
8221600A00R9ESwitchover Unit
8221600A00R9ESwitchover Unit
8221600A00R9ESwitchover Unit
8221600A00R9ESwitchover Unit
8221600A00R9ESwitchover Unit
9161111C04RManufacturer's nameplate X144-2 Sr
92609007178Manufacturer's nameplate PSR 1440 LI-2
9160111C0AFManufacturer's nameplate PSR 1810 LI-2
9160111C0NDManufacturer's nameplate PSR 180 LI-8
9161111C03BManufacturer's nameplate PSR 1820 LI-2
9161111C04TManufacturer's nameplate Psr Expert LI-2
92609007179Manufacturer's nameplate PSR 1800 LI-2
9161111C04MManufacturer's nameplate X144-2 Sb
92609007180Manufacturer's nameplate PSB 1440 LI-2
9160111C2RSManufacturer's nameplate Advancedimpact 1800
9160111C2V1Manufacturer's nameplate BKF 18
9161111C04NManufacturer's nameplate Psb Expert LI-2
92609007181Manufacturer's nameplate PSB 1800 LI-2
9160111C2RSManufacturer's nameplate Advancedimpact 1800
9161111C04NManufacturer's nameplate Psb Expert LI-2
92609007181Manufacturer's nameplate PSB 1800 LI-2
912607337181Battery Pack PBA 14,4V 1,5AH W-a Scm
911607A350JMBattery Pack PBA 18V/1,5 Ah W-a
911607A350RPBattery Pack PBA 18V 2,0AH W-b
911607A350RUBattery Pack PBA 18V 2,5AH W-b 45WH
912607337211Battery Pack PBA 18V 2,0 Ah W-b
912607337181Battery Pack PBA 14,4V 1,5AH W-a Scm
911607A350JMBattery Pack PBA 18V/1,5 Ah W-a
911607A350RPBattery Pack PBA 18V 2,0AH W-b
911607A350RSBattery Pack
911607A350RUBattery Pack PBA 18V 2,5AH W-b 45WH
912607337211Battery Pack PBA 18V 2,0 Ah W-b
911607A350JMBattery Pack PBA 18V/1,5 Ah W-a
911607A350RPBattery Pack PBA 18V 2,0AH W-b
911607A350RSBattery Pack
911607A350RUBattery Pack PBA 18V 2,5AH W-b 45WH
912607337211Battery Pack PBA 18V 2,0 Ah W-b
