Bosch PSB 18 VE-2

Bosch PSB 18 VE-2 cordl perc screwdr: exploded parts diagram, 1 sheet, 40 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 18 VE-2: 40 positions on 1 sheet

Bosch PSB 18 VE-2 parts list (1 sheet)

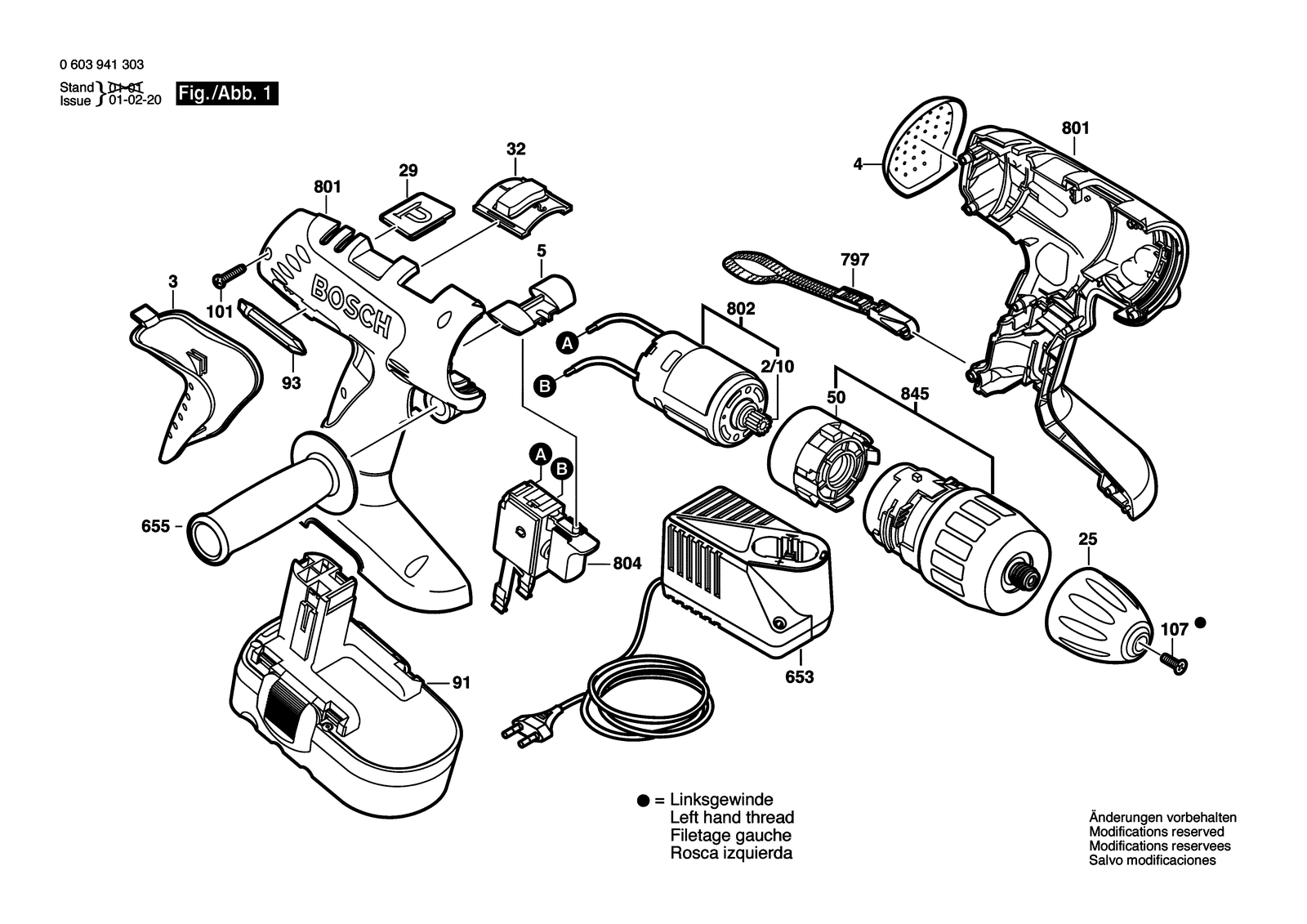

Bosch PSB 18 VE-2 parts diagram, sheet 1
No.Part numberPart name
1012603490018Torx Oval-Head Screw 3X18
1012603490018Torx Oval-Head Screw 3X18
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
2/102606316188Pinion
2/102606316188Pinion
252608572225Keyless Chuck
252608572225Keyless Chuck
292600290043Magnet Disk
32608040154Handle Cover
32608040154Handle Cover
322601099098Adjusting Slide
322601099144Adjusting Slide
42608040157Handle Cover
52601099096Adjusting Slide Red
52601099096Adjusting Slide Red
502605719027Intermediate Flange
502605719027Intermediate Flange
6532607224425Fast Charger EU 230/7,2-24V, 1H
6532607224427Fast Charger GB 230/7,2-24V, 1H
6532607224429Fast Charger AUS 240/7,2-24V, 1H
6532607224425Fast Charger EU 230/7,2-24V, 1H
6532607224427Fast Charger GB 230/7,2-24V, 1H
6532607224429Fast Charger AUS 240/7,2-24V, 1H
655160202509TAuxiliary Handle
655160202509TAuxiliary Handle
7972601398009Carrying Loop
7972601398009Carrying Loop
8012605104810Housing Section
8012605105936Housing Section
8022607022991DC motor 18V
8022607022991DC motor 18V
8042607200483On-Off Switch
8042607200423On-Off Switch
8452606200923Planetary Gear Train
8452606200934Planetary Gear Train
912607335277Slide-In Accu Package 18V, 1,25AH, Nicd
912607335535Slide-In Accu Package 18V, 1,5AH, Nicd
931609200147Screwdriver Blade 6 MM
931609200147Screwdriver Blade 6 MM
