Bosch PSB 18 LI-2 Ergonomic

Bosch PSB 18 LI-2 Ergonomic cordless impact drill: exploded parts diagram, 1 sheet, 21 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 18 LI-2 Ergonomic: 21 positions on 1 sheet

Bosch PSB 18 LI-2 Ergonomic parts list (1 sheet)

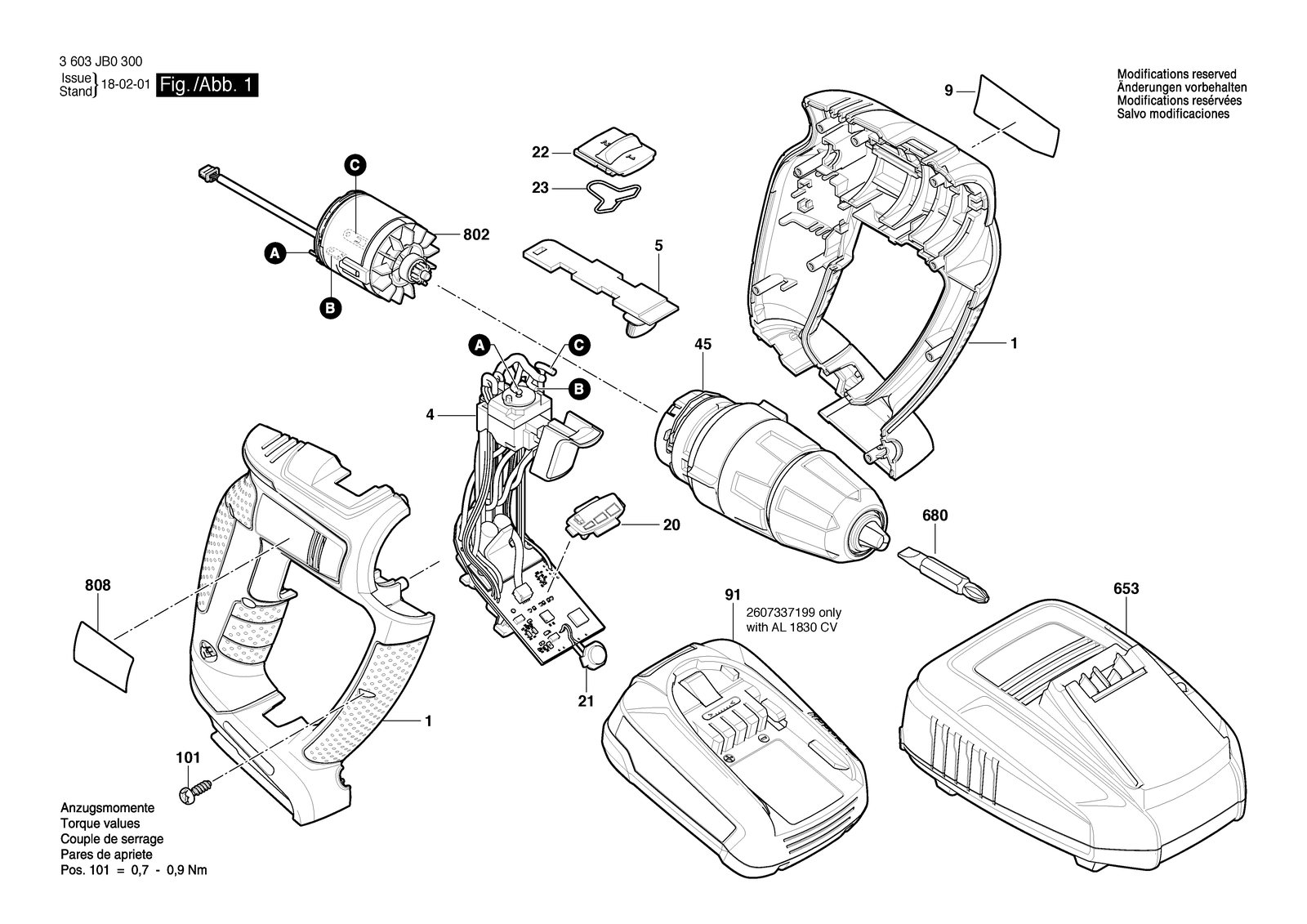

Bosch PSB 18 LI-2 Ergonomic parts diagram, sheet 1
No.Part numberPart name
1160580658XHousing
1012603490017Torx Oval-Head Screw 3X10
201600A004WVLight Conductor
211600A004WWLens
221600A004WRSwitch Slide
232609004496Spring
4160723359YElectronic Module
451600A004DRGear Box
51600A004WTLever
6532607225471Fast Charger EU AL 2215 CV 230/14,4-18V, 1H
6532607225965Fast Charger EU AL 1830 CV 230/14,4-18V 1H
6532607225967Charger Gb AL 1830 CV 230/14,4-18V 1H
6532607225969Charger Aus AL 1830 CV 230/14,4-18V 1H
6532607225975Fast Charger J AL 1830 CV 100/14,4-18V 1H
6802609160063Screwdriver Bit
8021600A008LGBrushless DC motor
808160111A2DTNameplate
808160111A4F1Nameplate
9160111C0DVManufacturer's nameplate PSB 18 LI-2 Ergonomic
9160111C0WFManufacturer's nameplate Psb Expert+ LI-2 Ergonomic
911607A350RUBattery Pack PBA 18V 2,5AH W-b 45WH
