Bosch PSB 18 LI-2

Bosch PSB 18 LI-2 cordl perc screwdr: exploded parts diagram, 1 sheet, 30 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 18 LI-2: 30 positions on 1 sheet

Bosch PSB 18 LI-2 parts list (1 sheet)

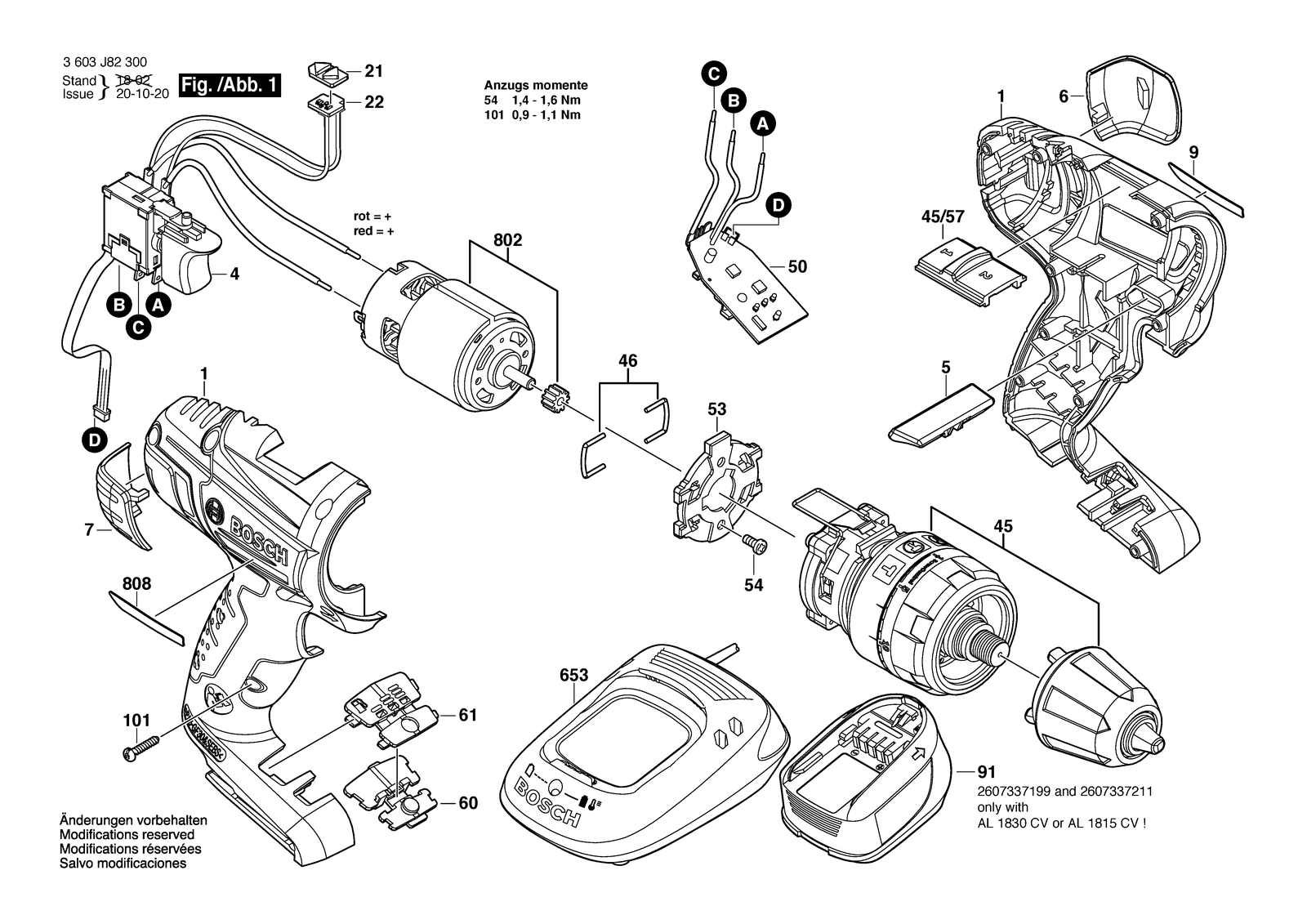

Bosch PSB 18 LI-2 parts diagram, sheet 1
No.Part numberPart name
12609006103Housing
1012609110201Torx Flat-Head Screw 3X16
212609001694Lens
222609006357Electronic Assembly
42607202195Switch
452609005702Gear Box
45/572609005771Switch Slide
462609005764Pin
52609005785Lever
502609006095Electronic Assembly
532609005763Flange
542603414049Torx SH cap screw M4X8-4,8-Z
62609006105Decorative Cover
602609004271Lens
612609004272Cover
6532607225273Fast Charger EU AL 2204 CV 230/14,4-18V 3H
6532607225965Fast Charger EU AL 1830 CV 230/14,4-18V 1H
6532607225967Charger Gb AL 1830 CV 230/14,4-18V 1H
6532607225969Charger Aus AL 1830 CV 230/14,4-18V 1H
6532607226517Charger EU AL 18V-20 230V 2A
72609006106Decorative Cover
8022609006399DC motor 18V
808160111A2DGNameplate
9160111C0WBManufacturer's nameplate PSB 180 LI-15
92609006391Manufacturer's nameplate PSB 18 LI-2
92609006534Manufacturer's nameplate PSR 18 LI-2I
911607A350JMBattery Pack PBA 18V/1,5 Ah W-a
911607A350RPBattery Pack PBA 18V 2,0AH W-b
911607A350RUBattery Pack PBA 18V 2,5AH W-b 45WH
912607337211Battery Pack PBA 18V 2,0 Ah W-b
