Bosch PSB 14,4 V

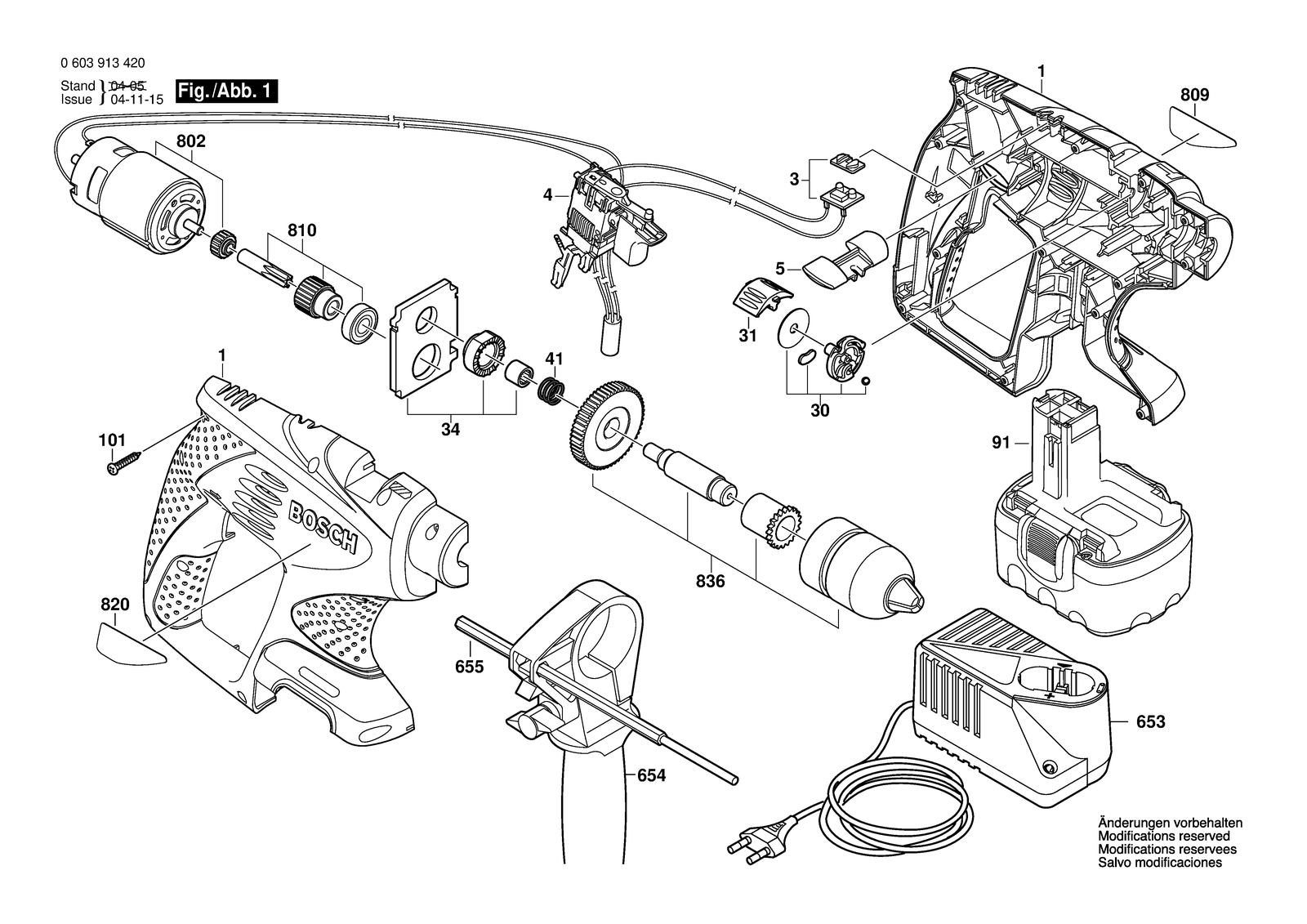

Bosch PSB 14,4 V cordless impact drill: exploded parts diagram, 1 sheet, 56 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 14,4 V: 56 positions on 1 sheet
Bosch PSB 14,4 V parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105058 | Housing Section Green |
| 1 | 2605105058 | Housing Section Green |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 101 | 2603490018 | Torx Oval-Head Screw 3X18 |
| 3 | 2609100257 | Lens Plexiglass 8N |
| 3 | 2609100257 | Lens Plexiglass 8N |
| 30 | 2601901012 | Indexing Disk |
| 30 | 2601901012 | Indexing Disk |
| 31 | 2601099140 | Change-Over Switch |
| 31 | 2601099140 | Change-Over Switch |
| 34 | 2605807113 | Bearing Bracket |
| 34 | 2605807113 | Bearing Bracket |
| 4 | 2607200485 | On-Off Switch |
| 4 | 2607200485 | On-Off Switch |
| 41 | 2604616006 | Compression Spring |
| 41 | 2604616006 | Compression Spring |
| 5 | 2601099096 | Adjusting Slide Red |
| 5 | 2601099096 | Adjusting Slide Red |
| 653 | 2607224393 | Fast Charger GB 230/7,2-14,4V, 1H |
| 653 | 2607224425 | Fast Charger EU 230/7,2-24V, 1H |
| 653 | 2607224427 | Fast Charger GB 230/7,2-24V, 1H |
| 653 | 2607224443 | Fast Charger AUS 240/7,2-14,4V, 1H |
| 653 | 2607224701 | Fast Charger EU 230/7,2-14,4V, 30 Min. |
| 653 | 2607224703 | Fast Charger GB 230/7,2-14,4V, 30 Min. |
| 653 | 2607224711 | Fast Charger J 100/7,2-14,4V, 30 Min. |
| 653 | 2607224391 | Fast Charger EU 230/7,2-14,4V, 1H |
| 653 | 2607224393 | Fast Charger GB 230/7,2-14,4V, 1H |
| 653 | 2607224395 | Fast Charger AUS 240/7,2-14,4V, 1H |
| 653 | 2607224425 | Fast Charger EU 230/7,2-24V, 1H |
| 653 | 2607224427 | Fast Charger GB 230/7,2-24V, 1H |
| 653 | 2607224701 | Fast Charger EU 230/7,2-14,4V, 30 Min. |
| 653 | 2607224703 | Fast Charger GB 230/7,2-14,4V, 30 Min. |
| 653 | 2607224711 | Fast Charger J 100/7,2-14,4V, 30 Min. |
| 654 | 2602025125 | Auxiliary Handle Black |
| 654 | 2602025125 | Auxiliary Handle Black |
| 655 | 2609005615 | Depth-Gauge |
| 655 | 2609005615 | Depth-Gauge |
| 802 | 2607022843 | DC motor 14,4V |
| 802 | 2607022843 | DC motor 14,4V |
| 809 | 2601116723 | Manufacturer's nameplate |
| 809 | 2601116953 | Manufacturer's nameplate |
| 809 | 2601116723 | Manufacturer's nameplate |
| 810 | 2606445902 | Coupling Half |
| 810 | 2606445902 | Coupling Half |
| 820 | 2601116724 | Reference Plate |
| 820 | 2601116954 | Reference Plate |
| 820 | 2609001904 | Nameplate |
| 820 | 2609001905 | Nameplate |
| 836 | 2606135936 | Drilling Spindle |
| 836 | 2606135936 | Drilling Spindle |
| 91 | 1617S0004W | Accumulator package 14,4V, 1,5AH, Nicd |
| 91 | 2607335275 | Slide-In Accu Package 14,4V, 1,25AH, Nicd |
| 91 | 2607335685 | Slide-In Accu Package 14,4V, 2,6AH, Nimh |
| 91 | 1617S0004W | Accumulator package 14,4V, 1,5AH, Nicd |
| 91 | 2607335275 | Slide-In Accu Package 14,4V, 1,25AH, Nicd |
| 91 | 2607335685 | Slide-In Accu Package 14,4V, 2,6AH, Nimh |
