All parts on this sheet0
All parts of Bosch PSB 14.4 LI-2: 23 positions on 1 sheet

Bosch PSB 14.4 LI-2 parts list (1 sheet)

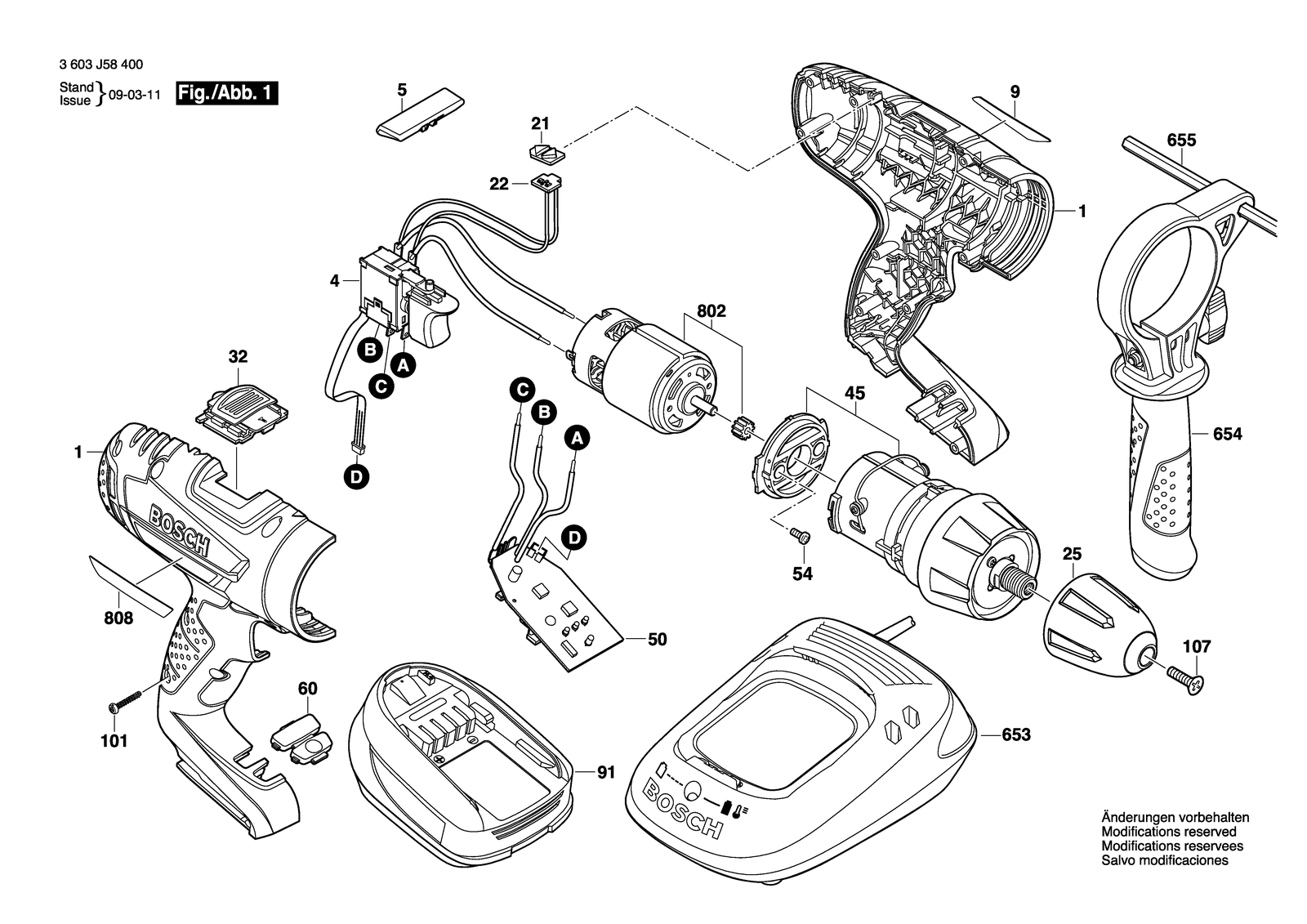

Bosch PSB 14.4 LI-2 parts diagram, sheet 1
No.Part numberPart name
12609003280Housing Green
1012603490018Torx Oval-Head Screw 3X18
1072609110721Countersunk-Head Screw M5X20
212609001694Lens
221609271711Printed Circuit Board
252609003200Keyless Chuck
322609003283Change-Over Switch
42607202067On-Off Switch
452609003041Gear Box
52609003282Lever
502609003139Electronic Assembly
542603414049Torx SH cap screw M4X8-4,8-Z
602609003287Cover
6532607225471Fast Charger EU AL 2215 CV 230/14,4-18V, 1H
6532607225475Charger Aus AL 2215 CV 240/14,4-18V, 1H
6532607225967Charger Gb AL 1830 CV 230/14,4-18V 1H
6542609003247Auxiliary Handle
6552609005615Depth-Gauge
8022609003661DC motor 14,4V
8082609003288Nameplate
92609003278Manufacturer's nameplate PSB 14,4 LI-2
92609006607Manufacturer's nameplate PSB 1440 LI-2
912607337181Battery Pack PBA 14,4V 1,5AH W-a Scm
