Bosch PSB 1000 RE percussion drill: exploded parts diagram, 1 sheet, 51 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 1000 RE: 51 positions on 1 sheet

Bosch PSB 1000 RE parts list (1 sheet)

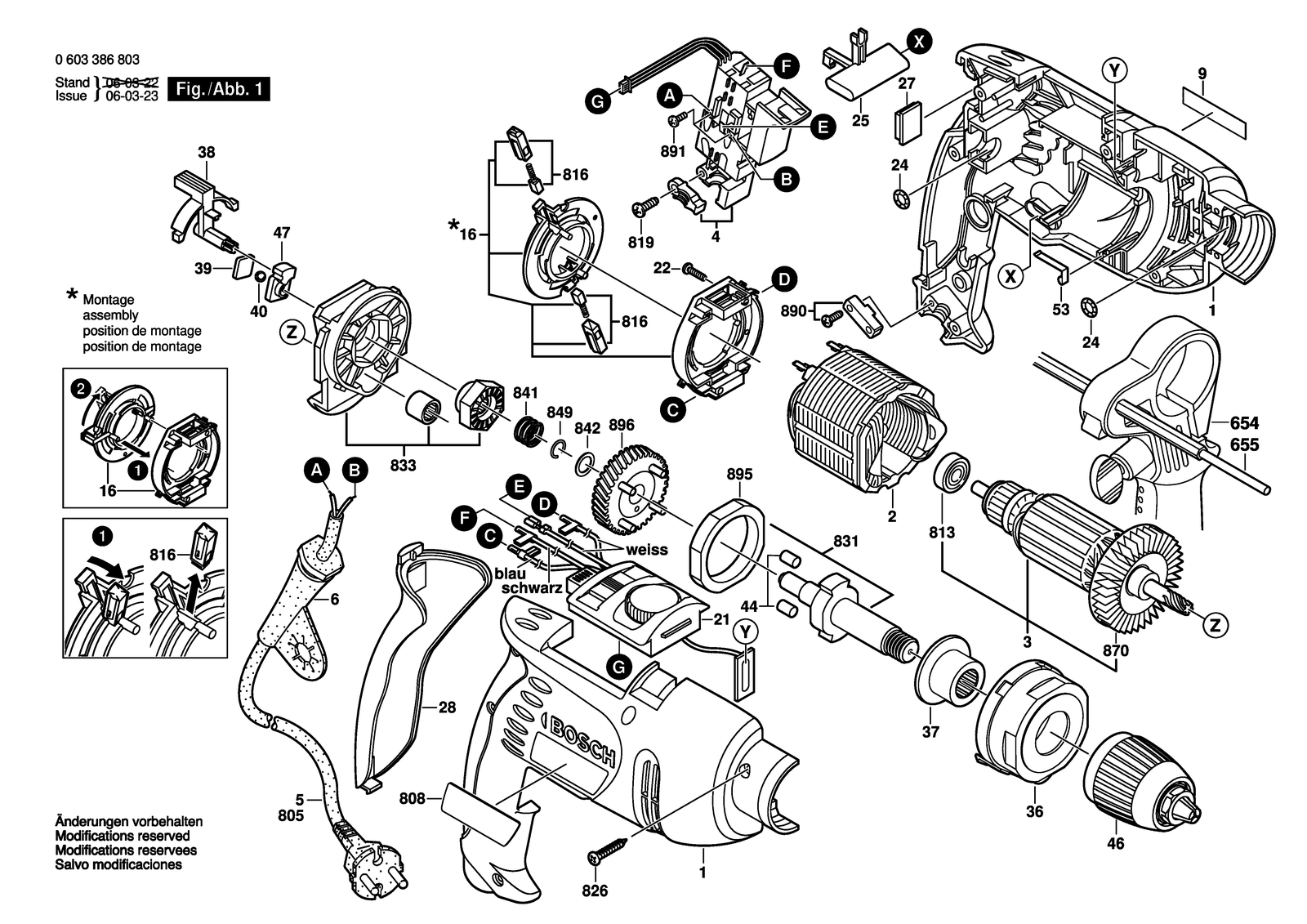

Bosch PSB 1000 RE parts diagram, sheet 1
No.Part numberPart name
12605104745Housing Section
162604337104Brush Plate
22604220692Field 220-240V
212607230073Speed governor
222910611002Tapping Screw DIN 7981-ST2,2X9,5-C-H
241900210000O-Ring 5,0X1,5 MM
252602098008Change-Over Switch Red
272603239024Damping Element
282608040177Handle Cover Black
32604011296Armature 230-240V
362605808084Gear Cover
372605805009Flanged Bearing
382601990027Indexing Disk
392601074004Pressure Plate
42607200501Switch
401903230009Ball DIN 5401-5 G28
442602329038Roller Body
462608572173Keyless Chuck
472608040120Frame
51604460432Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F
52604460147Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
52604460283Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F
52604460297Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F
532601329043Contact Strap
62600707066Grommet Ø6,2-Ø6,9X90 MM
6542602025125Auxiliary Handle Black
6552609005615Depth-Gauge
8051607000388Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F
8082601117897Marking Plate
8082601117898Nameplate
8082601117937Marking Plate
8082601117939Marking Plate
8082601117940Marking Plate
8132600905032Ball Bearing 7X19X6
8162609160125Carbon-Brush Set
8192910611006Tapping Screw DIN 7981-ST2,9X13-C-H
8262910611020Tapping Screw DIN 7981-ST3,9X19-C-H
8312606135931Drilling Spindle 1/2"
8332605807937Bearing Bracket
8412604616006Compression Spring
8422600101047Shim 0,3 MM
8492916540005Retaining ring DIN 7993-A8
8702606610029Fan
8902607001305Fastening parts kit
8912603410046Cross Recessed-Head Screw M3X5
8952600290044Retaining snap ring
8962606320083Carrier 1,0 M
92601115230Manufacturer's nameplate PSB 100 Rpe
92601115576Manufacturer's nameplate PSB 1000 X-Cel
92601116231Manufacturer's nameplate PSB 10000 Rpe
92601117835Manufacturer's nameplate PSB 1000 Rpe
