Bosch PSB 1000 RCA

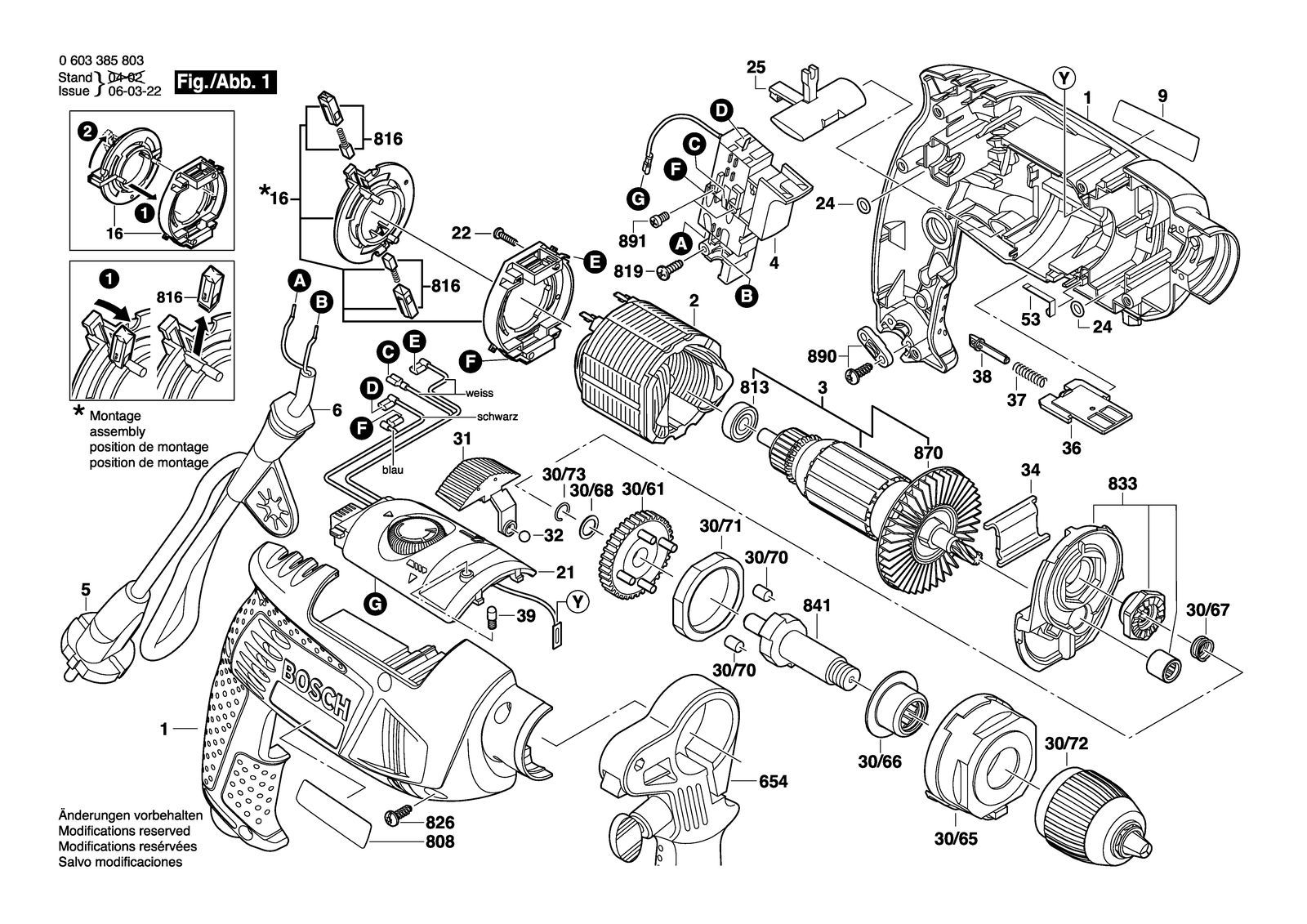

Bosch PSB 1000 RCA percussion drill: exploded parts diagram, 2 sheets, 52 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 1000 RCA: 52 positions on 2 sheets
Bosch PSB 1000 RCA parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605105053 | Housing Section |
| 16 | 2604337061 | Brush Plate |
| 2 | 2604220710 | Field 230V |
| 21 | 2607230094 | Speed governor 230V |
| 22 | 2910611002 | Tapping Screw DIN 7981-ST2,2X9,5-C-H |
| 24 | 1900210000 | O-Ring 5,0X1,5 MM |
| 25 | 2602098020 | Change-Over Switch |
| 3 | 2604011338 | Armature 230-240V |
| 30/61 | 2606320083 | Carrier 1,0 M |
| 30/65 | 2605808084 | Gear Cover |
| 30/66 | 2605805013 | Flanged Bearing |
| 30/67 | 2604616006 | Compression Spring |
| 30/68 | 2600101047 | Shim 0,3 MM |
| 30/70 | 2602329038 | Roller Body |
| 30/71 | 2600290044 | Retaining snap ring |
| 30/72 | 2608572173 | Keyless Chuck |
| 30/73 | 2916540005 | Retaining ring DIN 7993-A8 |
| 31 | 2602098019 | Change-Over Switch |
| 32 | 1903230023 | Ball |
| 34 | 2601334013 | Guiding Plate |
| 36 | 2605510215 | Locking Piece |
| 37 | 2604610100 | Compression Spring |
| 38 | 2603105109 | Bolt |
| 39 | 2600590006 | Ratchet Cap |
| 4 | 2607200501 | Switch |
| 5 | 1604460432 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460147 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460297 | Power supply cord AUS 240V 2,6M 2 X 0,75MM H05 Vv-F |
| 53 | 2601329043 | Contact Strap |
| 6 | 2600707066 | Grommet Ø6,2-Ø6,9X90 MM |
| 654 | 2602025125 | Auxiliary Handle Black |
| 655 | 2607030109 | Filter Element |
| 655/10 | 2605510217 | Impulse Starting Device Red |
| 655/830 | 2605411902 | Dust Bag Black |
| 655/880 | 2605190920 | Intake manifold module Black |
| 655/880/16 | 2600206003 | Friction Ring |
| 808 | 2601116720 | Marking Plate |
| 808 | 2601116721 | Marking Plate |
| 808 | 2601116722 | Marking Plate |
| 808 | 2601116955 | Marking Plate |
| 813 | 2600905032 | Ball Bearing 7X19X6 |
| 816 | 2609160125 | Carbon-Brush Set |
| 819 | 2910611006 | Tapping Screw DIN 7981-ST2,9X13-C-H |
| 826 | 2910611020 | Tapping Screw DIN 7981-ST3,9X19-C-H |
| 833 | 2605807939 | Bearing Bracket |
| 841 | 2606135931 | Drilling Spindle 1/2" |
| 870 | 2606610115 | Fan |
| 890 | 2607001305 | Fastening parts kit |
| 891 | 2603410046 | Cross Recessed-Head Screw M3X5 |
| 9 | 2601115395 | Manufacturer's nameplate PSB 1000 Re |
| 9 | 2601116600 | Manufacturer's nameplate PSB 1000 Rca |
