Bosch PSB 1000-2 RE
Bosch PSB 1000-2 RE percussion drill: exploded parts diagram, 1 sheet, 73 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

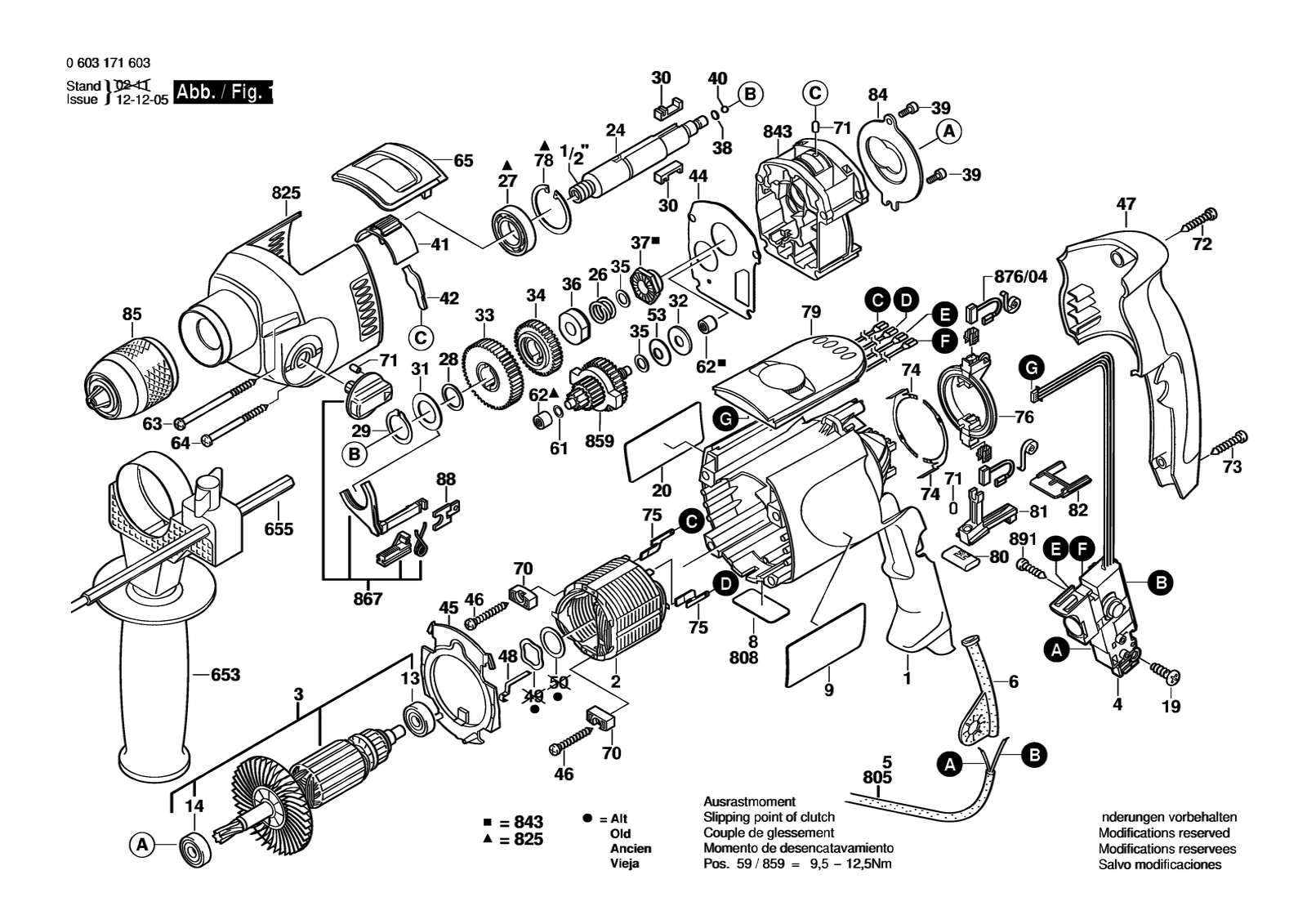

All parts of Bosch PSB 1000-2 RE: 73 positions on 1 sheet
Bosch PSB 1000-2 RE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104715 | Motor Housing Green |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1610905017 | Groove ball bearing 9X24X7 |
| 19 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 2 | 1614220136 | Field 230-240V |
| 20 | 2601117623 | Reference Plate |
| 24 | 2606135099 | Drilling Spindle |
| 26 | 2604616013 | Compression Spring |
| 27 | 1900905163 | Groove ball bearing 17X35X10 |
| 28 | 2600100695 | Shim 0,5 MM |
| 29 | 2916650008 | Spring retaining ring DIN 471 17X1 MM |
| 3 | 2604011242 | Armature With Fan 230-240V |
| 30 | 2602300032 | Flat Key |
| 31 | 2600101671 | Retaining Washer |
| 32 | 2600101056 | Shim |
| 33 | 2606317084 | Cylindrical Gear |
| 34 | 2606317098 | Cylindrical Gear |
| 35 | 2600101085 | Pressure Disk |
| 36 | 2600190090 | Catch Disk |
| 37 | 2600190078 | Catch Disk |
| 38 | 2600000021 | Shim washer 1,0 MM |
| 38 | 2600000030 | Shim washer 1,35 MM |
| 38 | 2600000031 | Shim washer 1,7 MM |
| 39 | 2603410048 | Thread-forming tap. Screw M4X8 |
| 4 | 2607200544 | Switch |
| 40 | 1903230009 | Ball DIN 5401-5 G28 |
| 40 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 40 | 2603230007 | Ball 5,25 MM |
| 41 | 2602098014 | Changeover Lever |
| 42 | 2600114016 | Pressure Plate |
| 44 | 2601073014 | Gasket |
| 45 | 2600148007 | Air Guide Plate |
| 46 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 47 | 2605132052 | Housing Cover |
| 48 | 2601324046 | Contact Spring |
| 5 | 1604460432 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460147 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 53 | 2600550008 | Disc Spring |
| 6 | 2600707066 | Grommet Ø6,2-Ø6,9X90 MM |
| 61 | 2600100607 | Shim 0,3 MM |
| 62 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 63 | 2603435076 | Headless Screw |
| 64 | 2603435077 | Headless Screw |
| 65 | 2601099100 | Bulb Shield |
| 653 | 2602025125 | Auxiliary Handle Black |
| 655 | 2609005615 | Depth-Gauge |
| 70 | 2601328068 | Holding-Down-Appliance |
| 71 | 2600590006 | Ratchet Cap |
| 72 | 2603490025 | Torx Oval-Head Screw 4X30 |
| 73 | 2603490022 | Screw 4X16 |
| 74 | 2601324045 | Contact Bar |
| 75 | 2604477005 | Blade terminal |
| 76 | 2604337096 | Brush Plate |
| 78 | 2916660014 | Spring retaining ring DIN 472 35X1,5 MM |
| 79 | 2607230063 | Speed governor 220-240V |
| 80 | 2602099016 | Change-Over Switch |
| 805 | 1607000388 | Power supply cord EU 2,65M 2 X 1,0MM H05 Rn-F |
| 808 | 2601117591 | Marking Plate |
| 808 | 2601117678 | Nameplate |
| 808 | 2601117997 | Nameplate |
| 808 | 2601117998 | Marking Plate |
| 81 | 2602319024 | Carrier Bracket |
| 82 | 2602319025 | End stop |
| 825 | 2605806893 | Gear Housing |
| 84 | 2601098067 | Retaining Washer |
| 843 | 2605700942 | Intermediate Flange |
| 85 | 2608572137 | Keyless Chuck |
| 859 | 1600A00MM2 | Transmission |
| 867 | 2606308924 | Toothed rack |
| 876/04 | 2604321927 | Carbon-Brush Set |
| 88 | 2601328070 | Holding Plate |
| 891 | 2603410046 | Cross Recessed-Head Screw M3X5 |
| 9 | 2601117438 | Manufacturer's nameplate |
