Bosch PSB 1000-2 RCE
Bosch PSB 1000-2 RCE percussion drill: exploded parts diagram, 2 sheets, 67 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSB 1000-2 RCE: 67 positions on 2 sheets

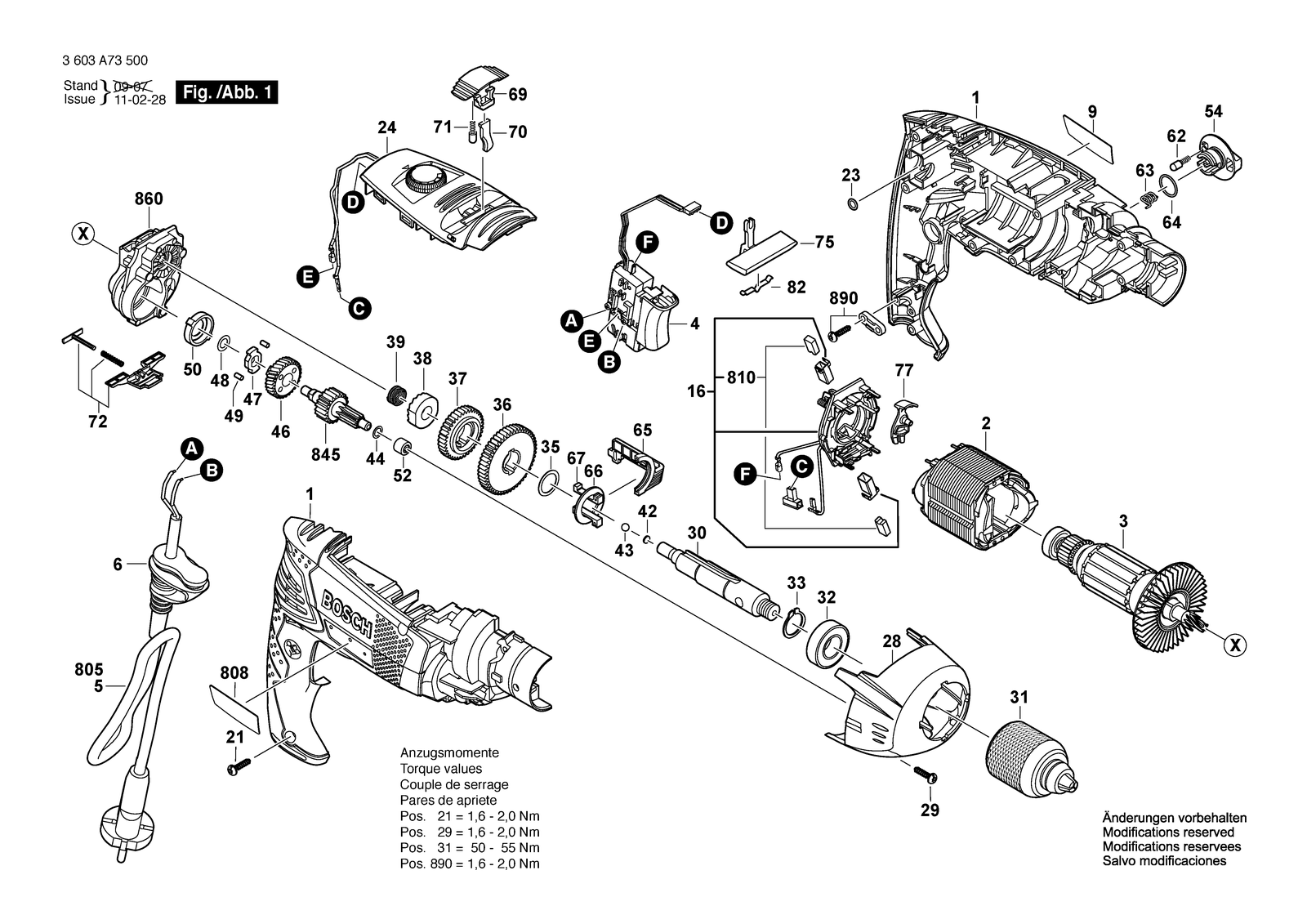

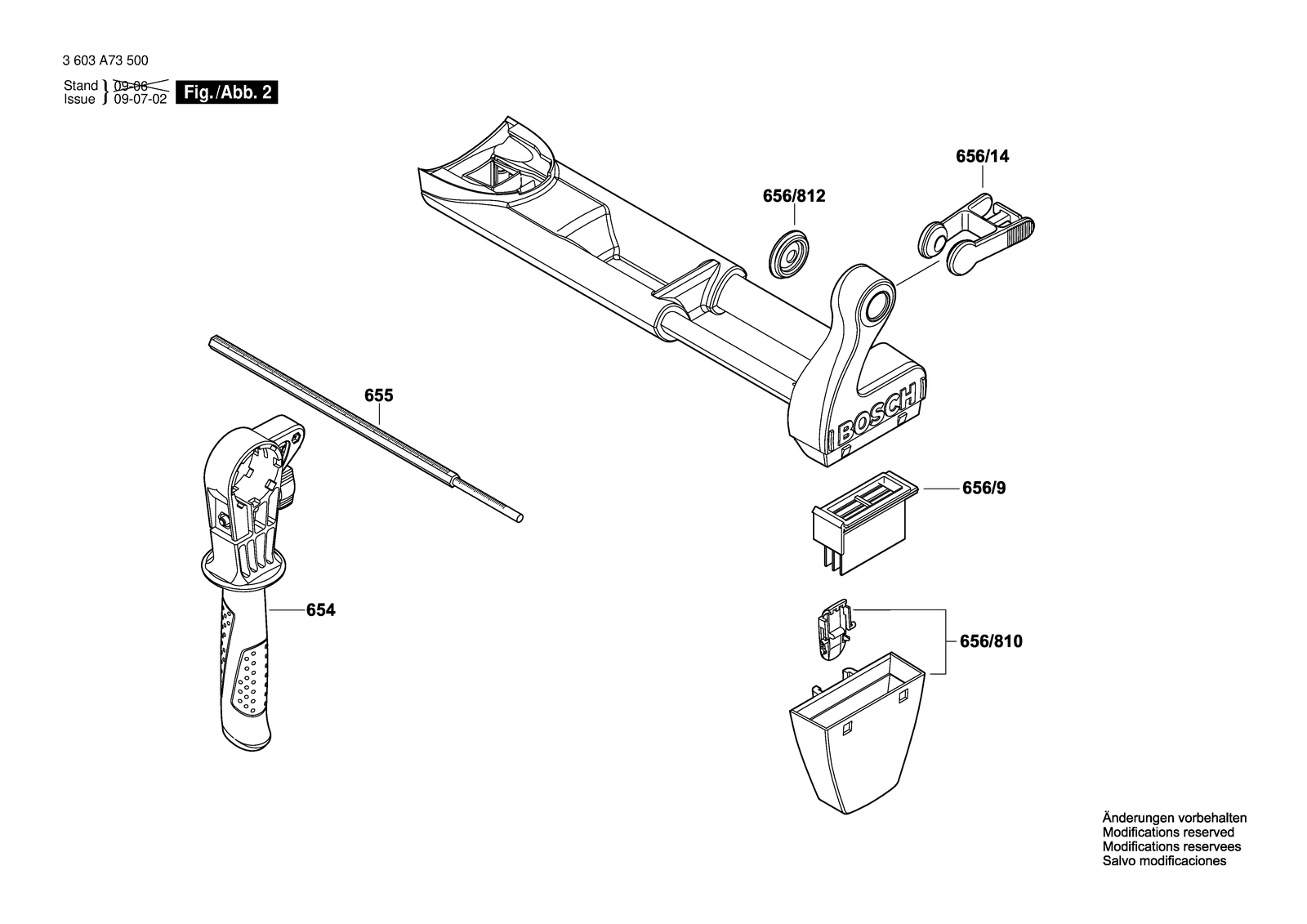

Bosch PSB 1000-2 RCE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609002944 | Housing Section Green |
| 16 | 2609002982 | Brush Holder |
| 2 | 2604220710 | Field 230V |
| 21 | 2603490022 | Screw 4X16 |
| 23 | 1900210000 | O-Ring 5,0X1,5 MM |
| 24 | 1607233361 | Rpm Actuator |
| 28 | 2609002957 | Cover |
| 29 | 2603490022 | Screw 4X16 |
| 3 | 2609002980 | Armature 230V |
| 30 | 2606135130 | Drilling Spindle |
| 31 | 2609003252 | Keyless Chuck |
| 32 | 1900905163 | Groove ball bearing 17X35X10 |
| 33 | 2916650008 | Spring retaining ring DIN 471 17X1 MM |
| 35 | 2600100695 | Shim 0,5 MM |
| 36 | 2606317084 | Cylindrical Gear |
| 37 | 2606317085 | Cylindrical Gear |
| 38 | 2600190105 | Catch Disk |
| 39 | 2604616013 | Compression Spring |
| 4 | 1607200517 | Switch |
| 42 | 2600000021 | Shim washer 1,0 MM |
| 42 | 2600000030 | Shim washer 1,35 MM |
| 42 | 2600000031 | Shim washer 1,7 MM |
| 43 | 1903230009 | Ball DIN 5401-5 G28 |
| 43 | 1903230010 | Ball DIN 5401-5,5MM-III-ST |
| 43 | 2603230007 | Ball 5,25 MM |
| 44 | 2600100607 | Shim 0,3 MM |
| 46 | 160312304U | Carrier |
| 47 | 2602210043 | Eccentric |
| 48 | 1600100632 | Shim Thick 0,2 MM |
| 49 | 2609007376 | Roller Body |
| 5 | 2604460131 | Power supply cord I 4,15M 2 X 1,0MM H05 Vv-F |
| 5 | 2609001354 | Power supply cord CH 4,15M 2 X 1,00MM H05 Vv-F |
| 5 | 2609001355 | Power supply cord GB 4,15M 2 X 1,00MM H05 Vv-F |
| 50 | 2600202008 | Retaining snap ring |
| 52 | 2600914010 | Needle-Roller Bearing Ø6 MM |
| 54 | 2609002959 | Rotary Knob |
| 6 | 2609003080 | Grommet Ø6,4-Ø7,2X76 MM |
| 62 | 2600590006 | Ratchet Cap |
| 63 | 2609004109 | Torsion Spring |
| 64 | 3600210014 | O-Ring 14,0X1,3 MM |
| 65 | 2609002961 | Fork Lever |
| 654 | 2609002967 | Auxiliary Handle |
| 655 | 2609005615 | Depth-Gauge |
| 656/14 | 2609003805 | Lock |
| 656/810 | 2609003983 | Dust container |
| 656/812 | 2600206003 | Friction Ring |
| 656/9 | 2609002929 | Filter |
| 66 | 2600101671 | Retaining Washer |
| 67 | 2602300032 | Flat Key |
| 69 | 2609002962 | Changeover Lever |
| 70 | 2601990044 | Guiding Plate |
| 71 | 2600590006 | Ratchet Cap |
| 72 | 2609002963 | Shut-off Valve |
| 75 | 2609002954 | Change-Over Switch |
| 77 | 2609002955 | Indicator Button |
| 805 | 1607000387 | Power supply cord CN 2,65M 2 X 0,75MM H05 W-f |
| 808 | 2609003480 | Nameplate |
| 808 | 2609003481 | Nameplate |
| 808 | 2609003482 | Nameplate |
| 808 | 2609003483 | Nameplate |
| 810 | 2609004163 | Carbon-Brush Set |
| 82 | 2601290030 | Leaf Spring |
| 845 | 2606309940 | Transmission |
| 860 | 2609002984 | Bearing Bracket |
| 890 | 2607001305 | Fastening parts kit |
| 9 | 2609003472 | Manufacturer's nameplate PSB 1000-2 Rce |
| 9 | 2609003473 | Manufacturer's nameplate PSB 1000-2 Rca |
