Bosch PSA 1150

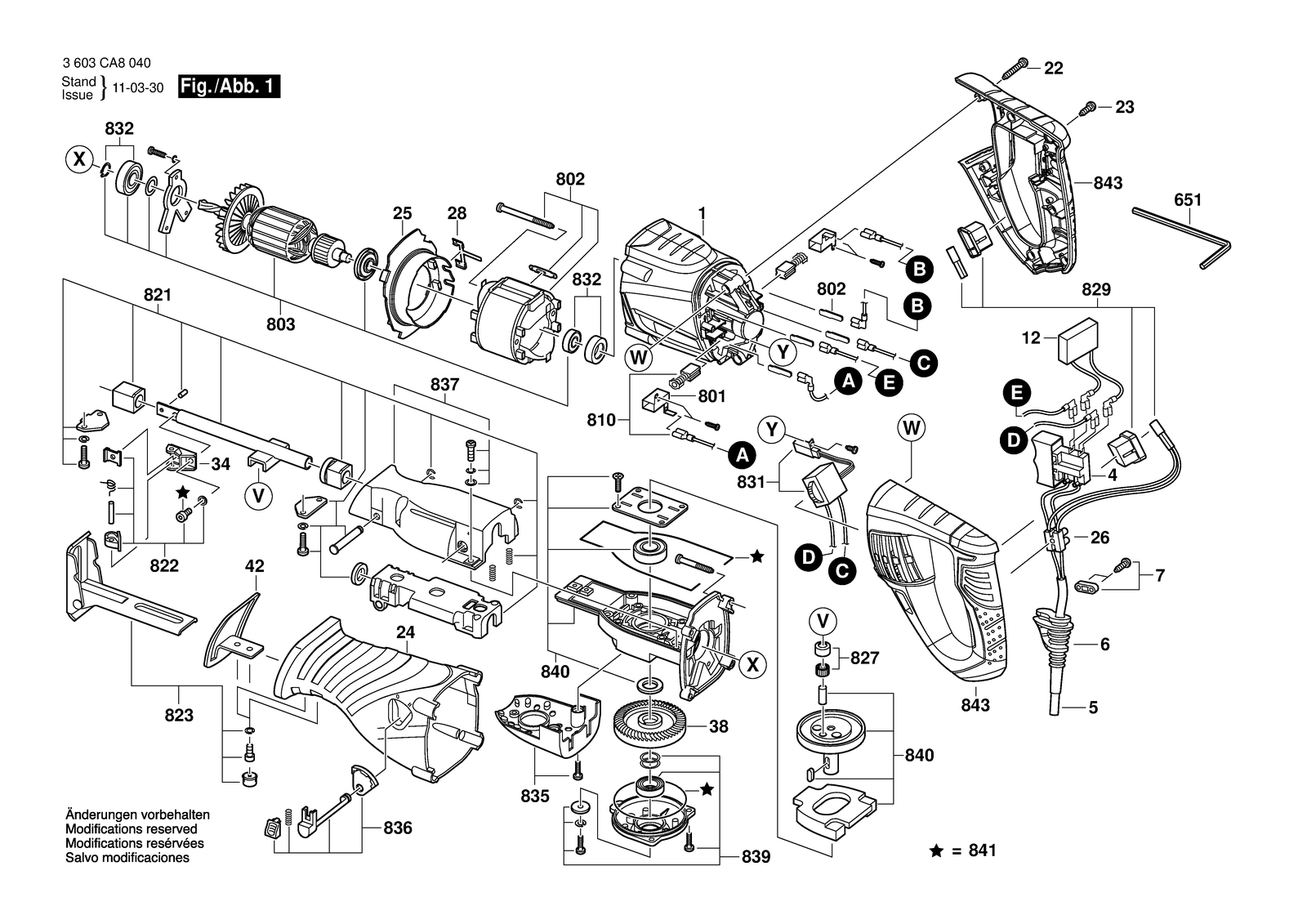

Bosch PSA 1150 reciprocating saw: exploded parts diagram, 1 sheet, 32 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PSA 1150: 32 positions on 1 sheet
Bosch PSA 1150 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PA1874 | Motor Housing |
| 12 | 2610398717 | Paper Capacitor |
| 22 | 1619PA1875 | Tapping Screw |
| 23 | 1619PA1876 | Tapping Screw |
| 24 | 1619P03958 | Rubber |
| 25 | 1619PA1882 | Air-Deflector Ring |
| 26 | 1619PA1886 | Connector |
| 28 | 1619PA1881 | Connector |
| 34 | 2610398522 | Clamp Bracket |
| 38 | 2610398964 | Gear |
| 4 | 1619PA1684 | On-Off Switch |
| 42 | 2610398969 | Support |
| 5 | 1619PA1885 | Power supply cord |
| 6 | 1619PA1884 | Grommet |
| 651 | 1607950005 | Pin-Type Face-Wrench |
| 7 | 2610393890 | Cable Clip |
| 802 | 1619PA1880 | Field 240V |
| 803 | 1619PA1883 | Armature assembly 240V |
| 810 | 1619PA1879 | Carbon-Brush Set |
| 821 | 2610398962 | Plunger Bar |
| 822 | 1619P03959 | Blade Holder |
| 823 | 2610398967 | Base Plate |
| 827 | 2610397061 | Needle-Roller Bearing |
| 829 | 1619PA1878 | Indicator |
| 832 | 2610397071 | Service kit |
| 835 | 2610398959 | Support |
| 836 | 2610398961 | Button |
| 837 | 2610398963 | Gear cover |
| 839 | 2610398965 | Gear |
| 840 | 2610398966 | Gear Housing |
| 841 | 2610398968 | Seal |
| 843 | 1619PA1873 | Handle |
