Bosch PS41

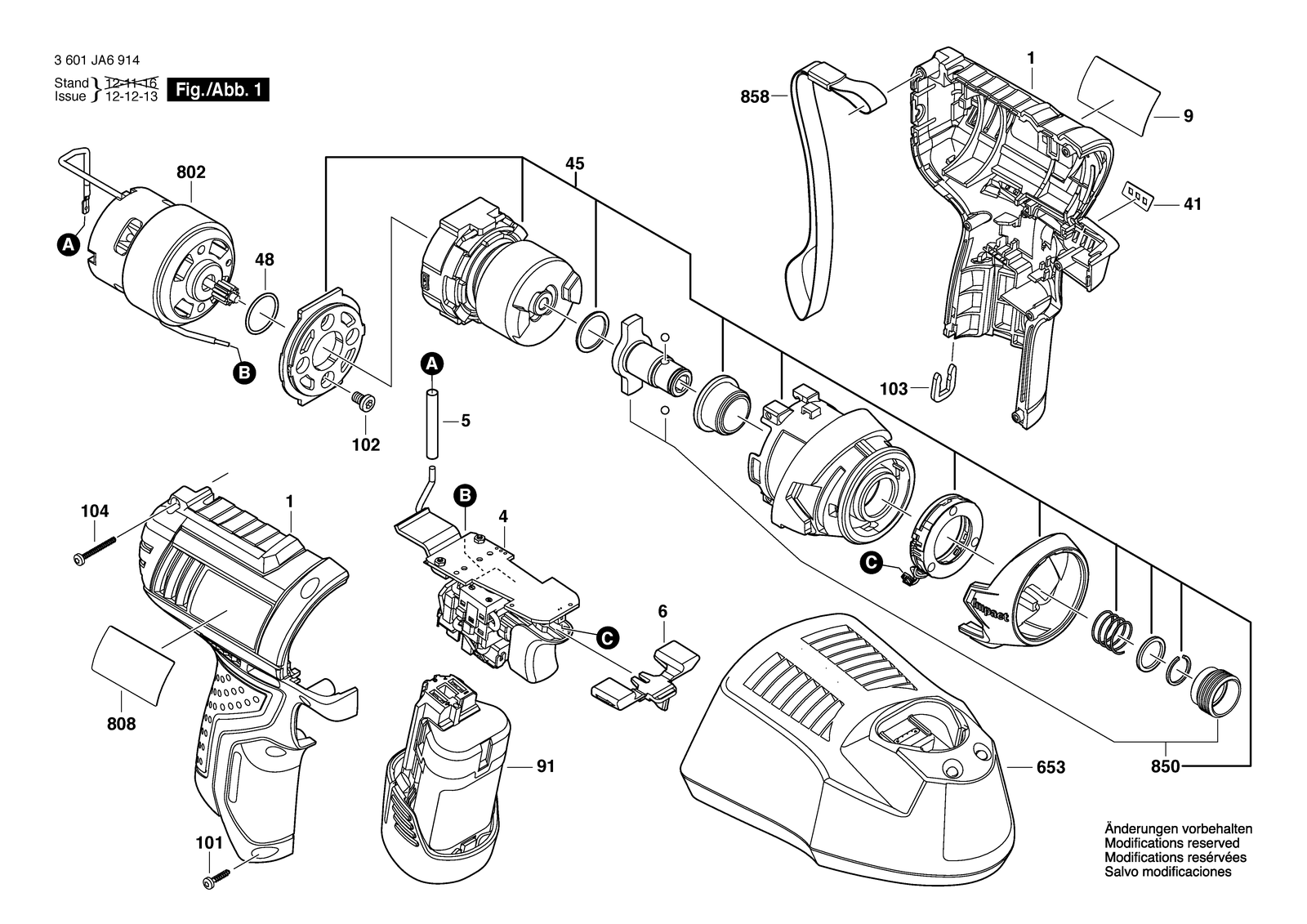

Bosch PS41 cordless screwdriver: exploded parts diagram, 1 sheet, 21 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PS41: 21 positions on 1 sheet
Bosch PS41 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609100816 | Housing Blue |
| 101 | 2609110883 | Screw |
| 102 | 2609110950 | Torx Flat-Head Screw |
| 103 | 2609110537 | Clip |
| 104 | 2609110991 | Pan head screw |
| 4 | 16072335DD | Electronics Module |
| 41 | 2609132846 | Sticker |
| 45 | 2609199241 | Gear Box |
| 48 | 2609170121 | Seal Ring |
| 5 | 2609170134 | Shrinkable Tube |
| 6 | 2609100817 | Adjusting Slide |
| 653 | 2607225139 | Fast Charger Usa/can 120/10,8-12V/30 Min. |
| 653 | 2607225519 | Fast Charger USA 120/3,6-10,8V,1H |
| 802 | 2609199281 | DC motor 10,8V |
| 808 | 160111A6UP | Nameplate |
| 808 | 2610014586 | Nameplate |
| 850 | 2609199320 | Coupling Half |
| 858 | 2609170129 | Carrying Loop |
| 9 | 2610007734 | Manufacturer's nameplate Litihum-Ion 12V |
| 91 | 1607A350C8 | Battery Pack BAT 414 10,8/12V 2,0AH |
| 91 | 2607337237 | Battery Pack BAT 415 10,8V712V 2,5AH |
