Makita PS32C
Makita PS32C: exploded parts diagram, 6 sheets, 180 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Makita PS32C: 180 positions on 6 sheets

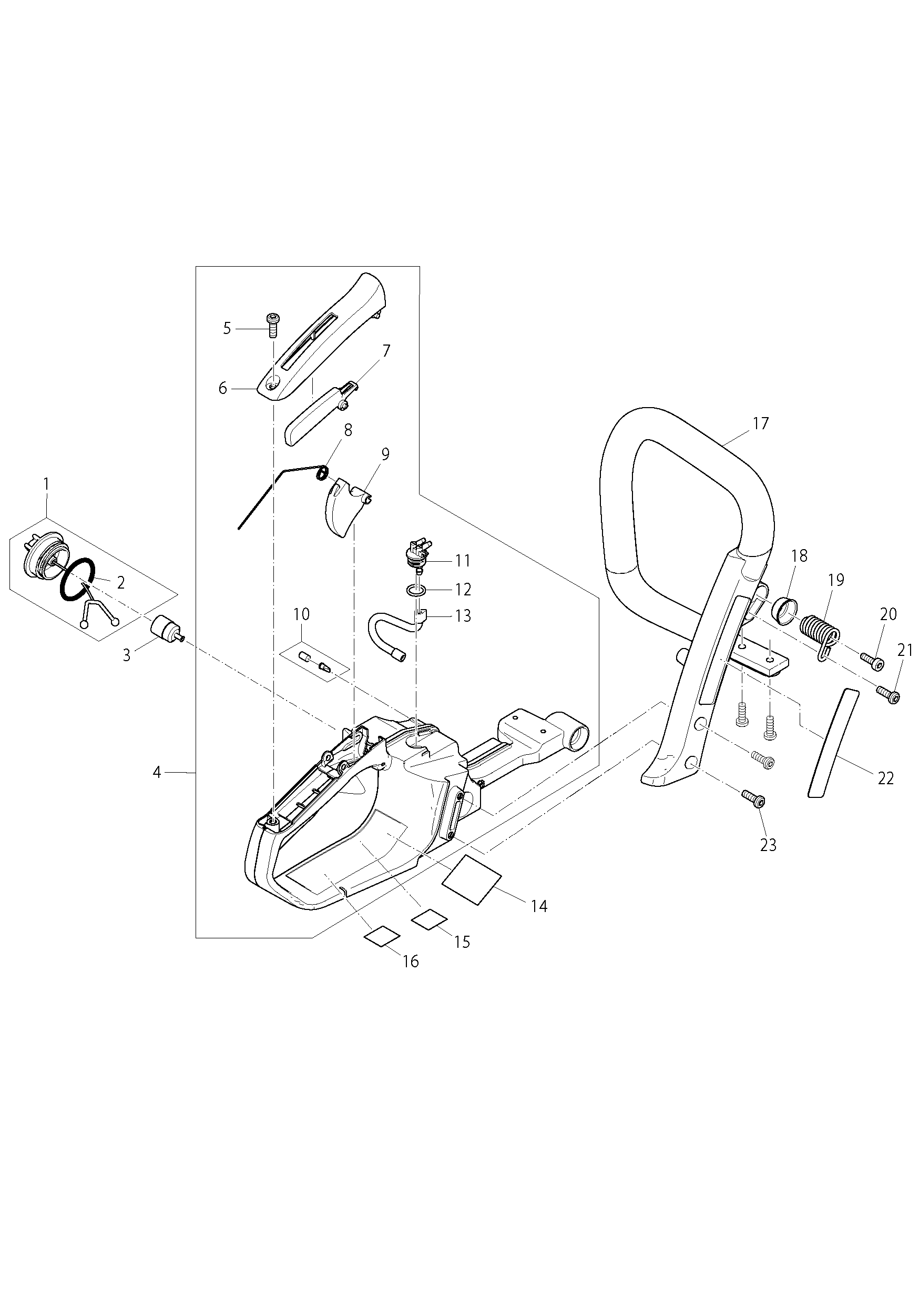

Sheet 1: Makita PS32C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 2 | 213080-9 | Makita 213080-9 O RING 29,5 |
| 3 | 163447-0 | Makita 163447-0 Gasoline Filter |
| 5 | 266651-1 | Makita 266651-1 TAPPING SCREW TORX 5.5X16 |
| 6 | 452021-2 | Makita 452021-2 GRIP SHELL, EA3200S |
| 7 | 452020-4 | Makita 452020-4 CATCH LEVER, EA3200S |
| 8 | 231866-9 | Makita 231866-9 TORSION SPRING 10 PS-32 |
| 9 | 452019-9 | Makita 452019-9 THROTTLE LEVER, EA3200S |
| 10 | 195762-4 | Makita 195762-4 AIR VALVE SET, EA3201S |
| 11 | 452018-1 | Makita 452018-1 FUEL NIPPLE, EA3200S |
| 12 | 213586-7 | Makita 213586-7 O-RING 11.5, EA3200S |
| 13 | 424456-7 | Makita 424456-7 FUEL PIPE, EA3200S |
| 14 | 869078-0 | |
| 15 | ||
| 16 | ||
| 17 | 452036-9 | Makita 452036-9 TUBULAR HANDLE, EA3200S |
| 18 | 346517-2 | Makita 346517-2 CUP WASHER 6, EA3200S |
| 19 | 234189-4 | Makita 234189-4 COMPRESSION SPRING EA3200S |
| 20 | 266605-8 | Makita 266605-8 H.L.SOCKET HEAD BOLT M5X16, EA3200S |
| 21 | 266651-1 | Makita 266651-1 TAPPING SCREW TORX 5.5X16 |
| 22 | 891899-2 | Makita 891899-2 DOLMAR LOGO LABEL, EA3200S |
| 23 | 266651-1 | Makita 266651-1 TAPPING SCREW TORX 5.5X16 |

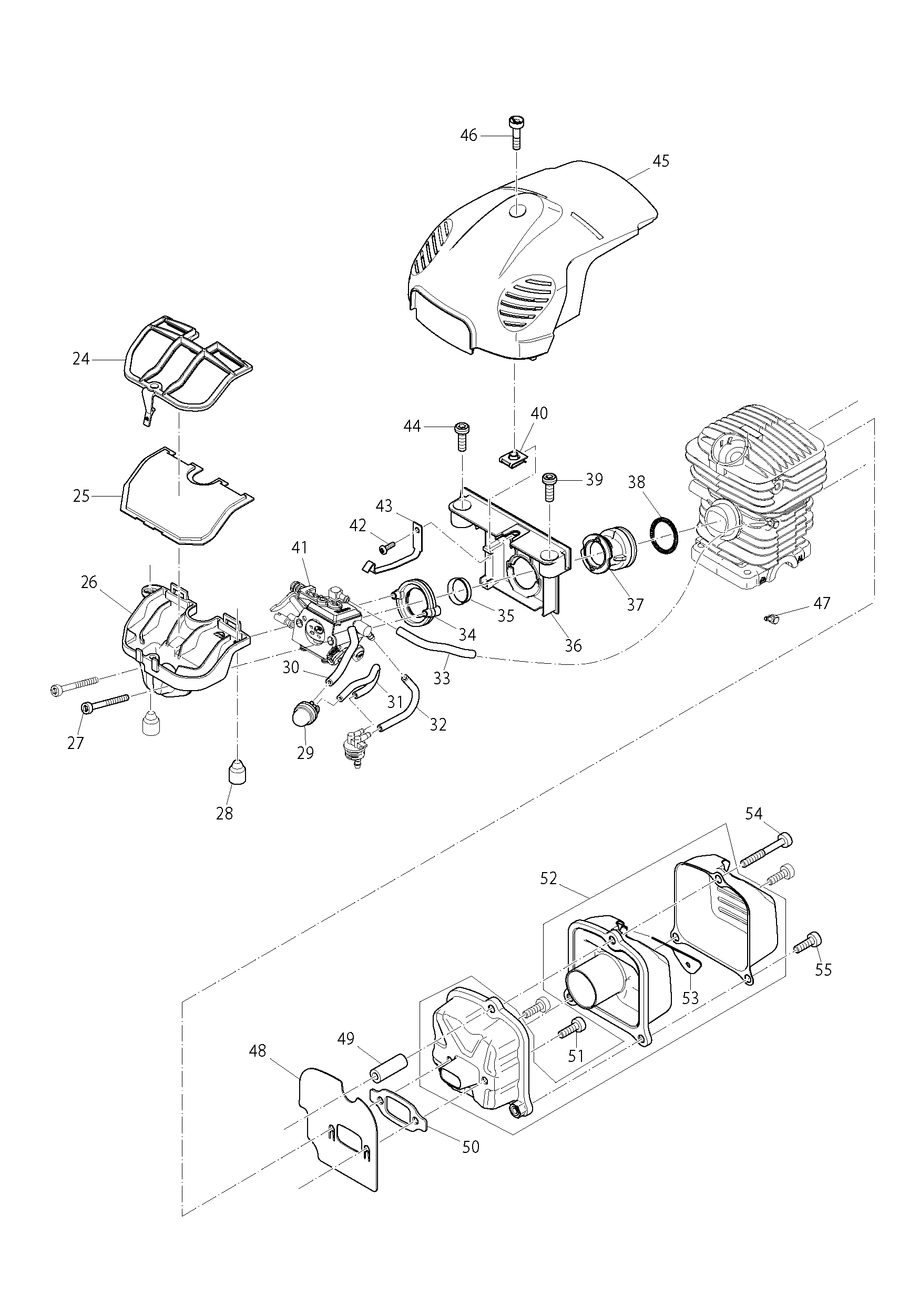

Sheet 2: Makita PS32C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 24 | 452031-9 | Makita 452031-9 Air Filter Cover for EA3200S |
| 25 | 423414-0 | Makita 423414-0 Air Filter for EA3200S |
| 26 | 452030-1 | Makita 452030-1 INTAKE MANIFOLD, EA3200S |
| 27 | 266604-0 | Makita 266604-0 H.L.SOCKET HEAD BOLT M4X40, EA3200S |
| 28 | 424173-9 | Makita 424173-9 DAMPING PLUG, PS-460 |
| 29 | 168398-2 | Makita 168398-2 Primer Pump for DCS230T |
| 30 | 422067-2 | Makita 422067-2 TUBE 2.5-55, PS-32 |
| 31 | 422065-6 | Makita 422065-6 TUBE 2.5-112, PS-32 |
| 32 | 422068-0 | Makita 422068-0 REDTUBE 3-70, PS-32 |
| 33 | 422066-4 | Makita 422066-4 TUBE 2.5-72, PS-32 |
| 34 | 318634-8 | Makita 318634-8 FLANGE RING, PS-32 |
| 35 | 346413-4 | Makita 346413-4 BUSH 17, PS-32 |
| 36 | 452024-6 | Makita 452024-6 INTERMEDIATE FLANGE, EA3200S |
| 37 | 424340-6 | Makita 424340-6 INTAKE HOSE, EA3200S |
| 38 | 233971-8 | Makita 233971-8 RING SPRING, PS-460 |
| 39 | 266651-1 | Makita 266651-1 TAPPING SCREW TORX 5.5X16 |
| 40 | 264044-6 | Makita 264044-6 SNAP NUT, PS-32 |
| 41 | 168602-9 | OLDN Makita 168602-9 CARBURETOR ZAMA CIQ-X5283A, EA3200S |
| 42 | 266421-8 | Makita 266421-8 TAPPING SCREW 3*10, HR2810 |
| 43 | 346290-4 | Makita 346290-4 CONTACT SPRING, EA3200S |
| 44 | 266651-1 | Makita 266651-1 TAPPING SCREW TORX 5.5X16 |
| 45 | 452023-8 | Makita 452023-8 Hood for EA3200S |
| 46 | 266607-4 | Makita 266607-4 H.L.SOCKET HEAD BOLT M5X20, EA3200S |
| 47 | 325938-1 | Makita 325938-1 ANGULAR NIPPLE, EA3200S |
| 48 | 346306-5 | Makita 346306-5 COOLING PLATE, EA3200S |
| 49 | 325939-9 | Makita 325939-9 CONNECTING LINK EA3200S |
| 50 | 346304-9 | Makita 346304-9 GASKET, EA3200S |
| 51 | 266605-8 | Makita 266605-8 H.L.SOCKET HEAD BOLT M5X16, EA3200S |
| 53 | 346294-6 | Makita 346294-6 SPARK ARRESTER SCREEN, EA3200S |
| 54 | 266606-6 | Makita 266606-6 H.L.SOCKET HEAD BOLT M5X40, EA3200S |
| 55 | 266605-8 | Makita 266605-8 H.L.SOCKET HEAD BOLT M5X16, EA3200S |

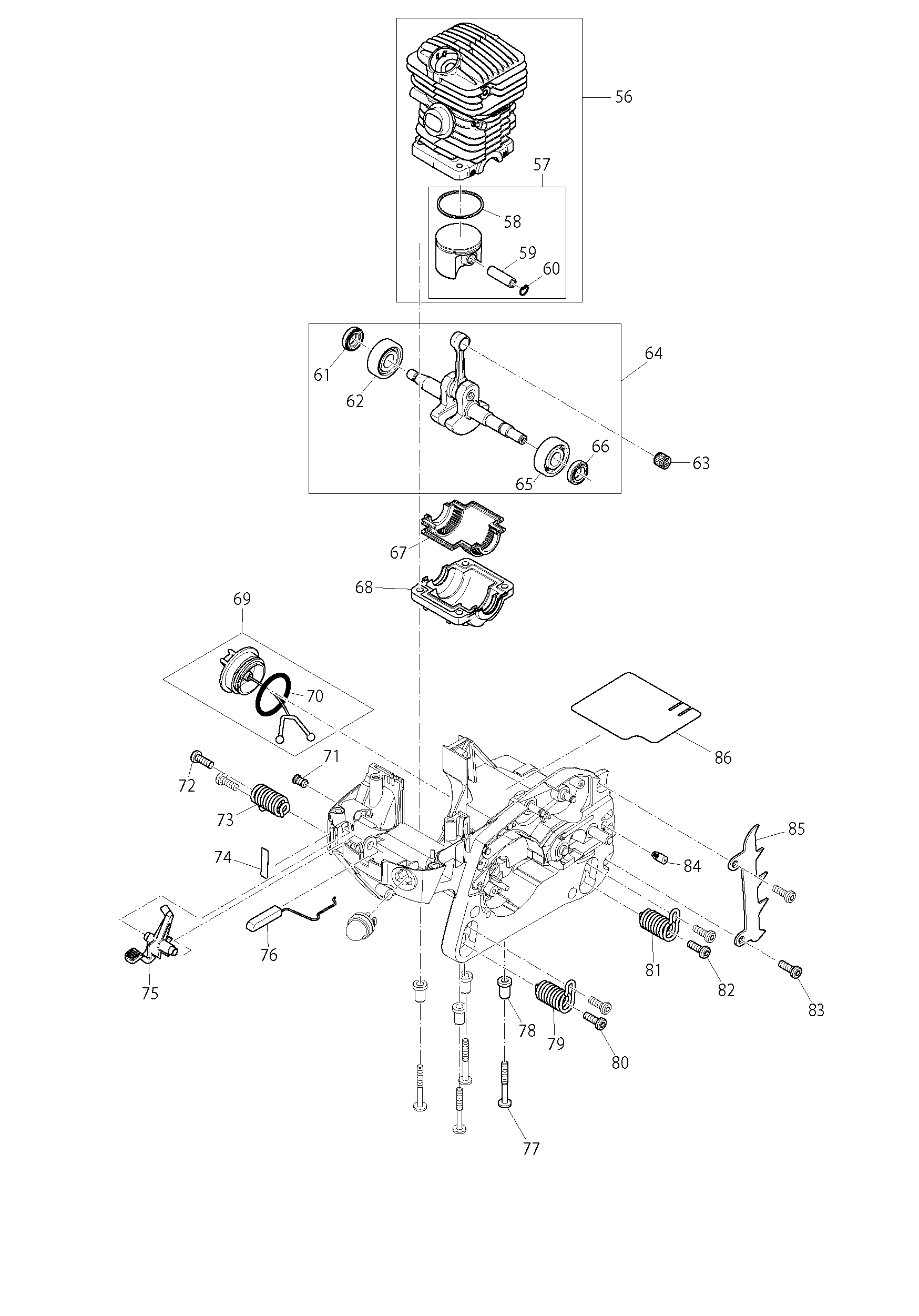

Sheet 3: Makita PS32C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 58 | 325991-7 | Makita 325991-7 PISTON RING 38, EA3201M |
| 59 | 325992-5 | Makita 325992-5 PISTON PIN, PS-32 |
| 60 | 233988-1 | Makita 233988-1 RING SPRING 8, PS-32 |
| 61 | 213582-5 | Makita 213582-5 OIL SEAL 12X20X5 EA3200 |
| 62 | 211341-1 | Makita 211341-1 BALL BEARING 6201, EA3200S |
| 63 | 212086-4 | Makita 212086-4 NEEDLE CAGE 810, PS-32 |
| 64 | 195956-1 | Makita 195956-1 CRANK SHAFT SET, EA3200S |
| 65 | 211341-1 | Makita 211341-1 BALL BEARING 6201, EA3200S |
| 66 | 213582-5 | Makita 213582-5 OIL SEAL 12X20X5 EA3200 |
| 67 | 424339-1 | Makita 424339-1 CRANK CASE SEALING, EA3200S |
| 68 | 318633-0 | Makita 318633-0 CRANKCASE UNDERSIDE PS-32 |
| 70 | 213080-9 | Makita 213080-9 O RING 29,5 |
| 71 | 452629-2 | Makita 452629-2 PLUG, PS-32 |
| 72 | 266651-1 | Makita 266651-1 TAPPING SCREW TORX 5.5X16 |
| 73 | 234189-4 | Makita 234189-4 COMPRESSION SPRING EA3200S |
| 74 | 816917-5 | Makita 816917-5 OPERATIONAL INDICATION LABEL, PS-460 |
| 75 | 452025-4 | Makita 452025-4 CHOKE LEVER, EA3200S |
| 76 | 452022-0 | Makita 452022-0 THROTTLE LINKAGE, EA3200S |
| 77 | 266608-2 | Makita 266608-2 H.L.TAPPING SCREW 5X40, PS-32 |
| 78 | 325946-2 | Makita 325946-2 BUSH 6, PS-32 |
| 79 | 234189-4 | Makita 234189-4 COMPRESSION SPRING EA3200S |
| 80 | 266651-1 | Makita 266651-1 TAPPING SCREW TORX 5.5X16 |
| 81 | 234189-4 | Makita 234189-4 COMPRESSION SPRING EA3200S |
| 82 | 266651-1 | Makita 266651-1 TAPPING SCREW TORX 5.5X16 |
| 83 | 266651-1 | Makita 266651-1 TAPPING SCREW TORX 5.5X16 |
| 84 | 168504-9 | Makita 168504-9 VENT VALVE, PS-32 |
| 85 | 346301-5 | Makita 346301-5 SPIKE BAR, EA3200 |
| 86 | 346385-3 | Makita 346385-3 HEAT PROTECTION FOIL, PS-32 |

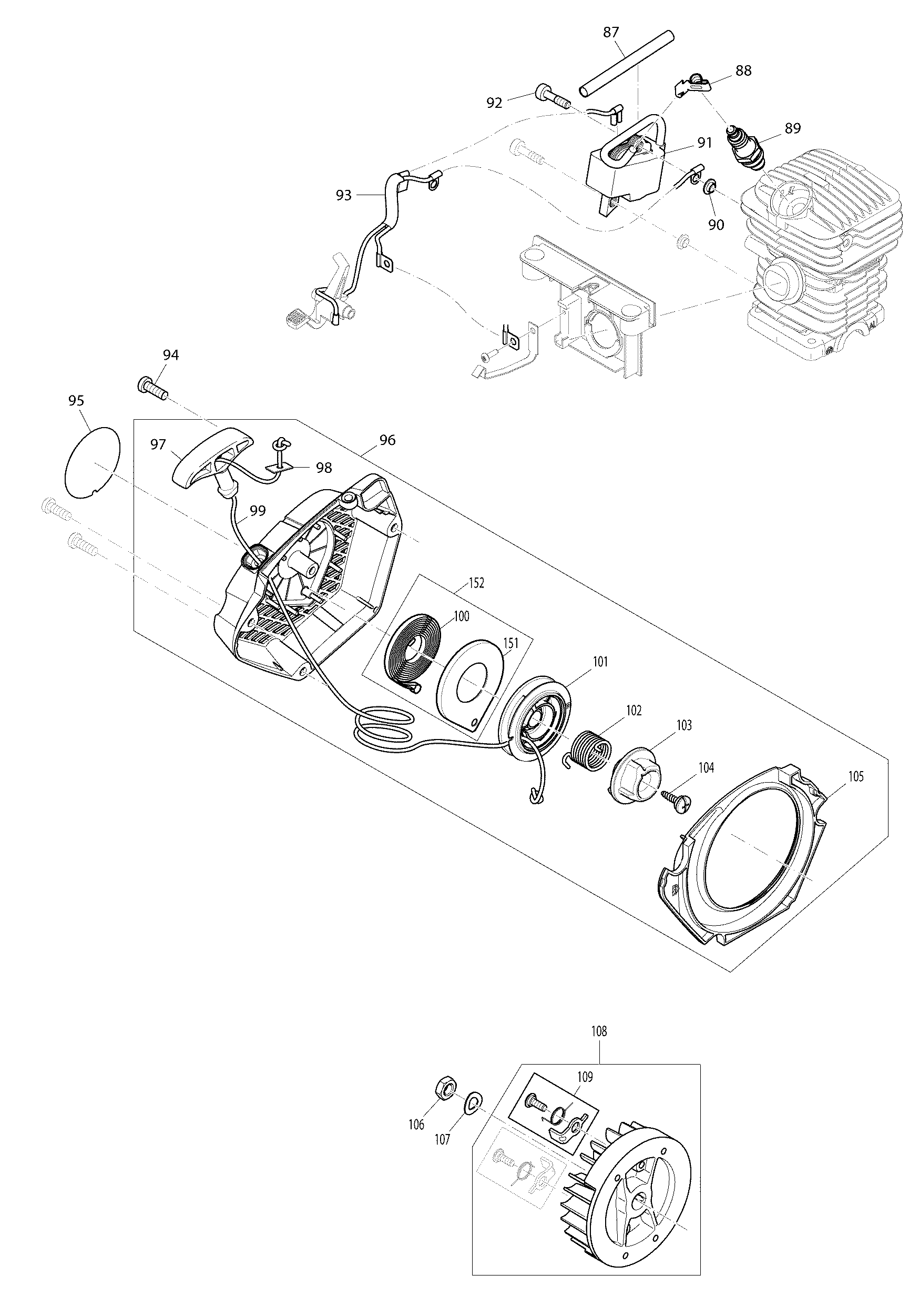

Sheet 4: Makita PS32C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 87 | 444029-0 | Makita 444029-0 ISOLATING TUBE 6-95, PS-32 |
| 88 | 346445-1 | Makita 346445-1 SPARK PLUG CONNECTOR |
| 89 | 168599-2 | Makita 168599-2 SPARK PLUG CMR7A-5 |
| 90 | 452670-5 | Makita 452670-5 ISOLATING WASHER, EA3200S |
| 91 | 125808-2 | OLDN Makita 125808-2 IGNITION COIL ASSEMBLY, EA3200S |
| 92 | 266631-7 | Makita 266631-7 H.L.SOCKET HEAD BOLT M5X20, EA3200S |
| 93 | 168601-1 | |
| 94 | 266651-1 | Makita 266651-1 TAPPING SCREW TORX 5.5X16 |
| 95 | 819544-7 | Makita 819544-7 PS-32 MODEL NO.LABEL |
| 97 | 453783-5 | Makita 453783-5 STARTER GRIP EA3201S |
| 98 | 267847-7 | Makita 267847-7 SQUARE WASHER 4, EA3201S |
| 99 | 444038-9 | Makita 444038-9 STARTER ROPE |
| 100 | 234252-3 | |
| 101 | 453785-1 | Makita 453785-1 REEL, EA3201S |
| 102 | 234253-1 | Makita 234253-1 TORSION SPRING 20, EA3201S |
| 103 | 453786-9 | Makita 453786-9 CAM PLATE, EA3201S |
| 104 | 266777-9 | Makita 266777-9 TAPPING SCREW 5X12 |
| 105 | 452026-2 | Makita 452026-2 AIR GUIDE PLATE, EA3200 |
| 106 | 264053-5 | Makita 264053-5 HEXAGON NUT M8X1, EA3200S |
| 107 | 267822-3 | Makita 267822-3 SPRING WASHER 8, PS-460 |
| 109 | 195761-6 | Makita 195761-6 RATCHET SET, EA3200S |
| 151 | 453784-3 |

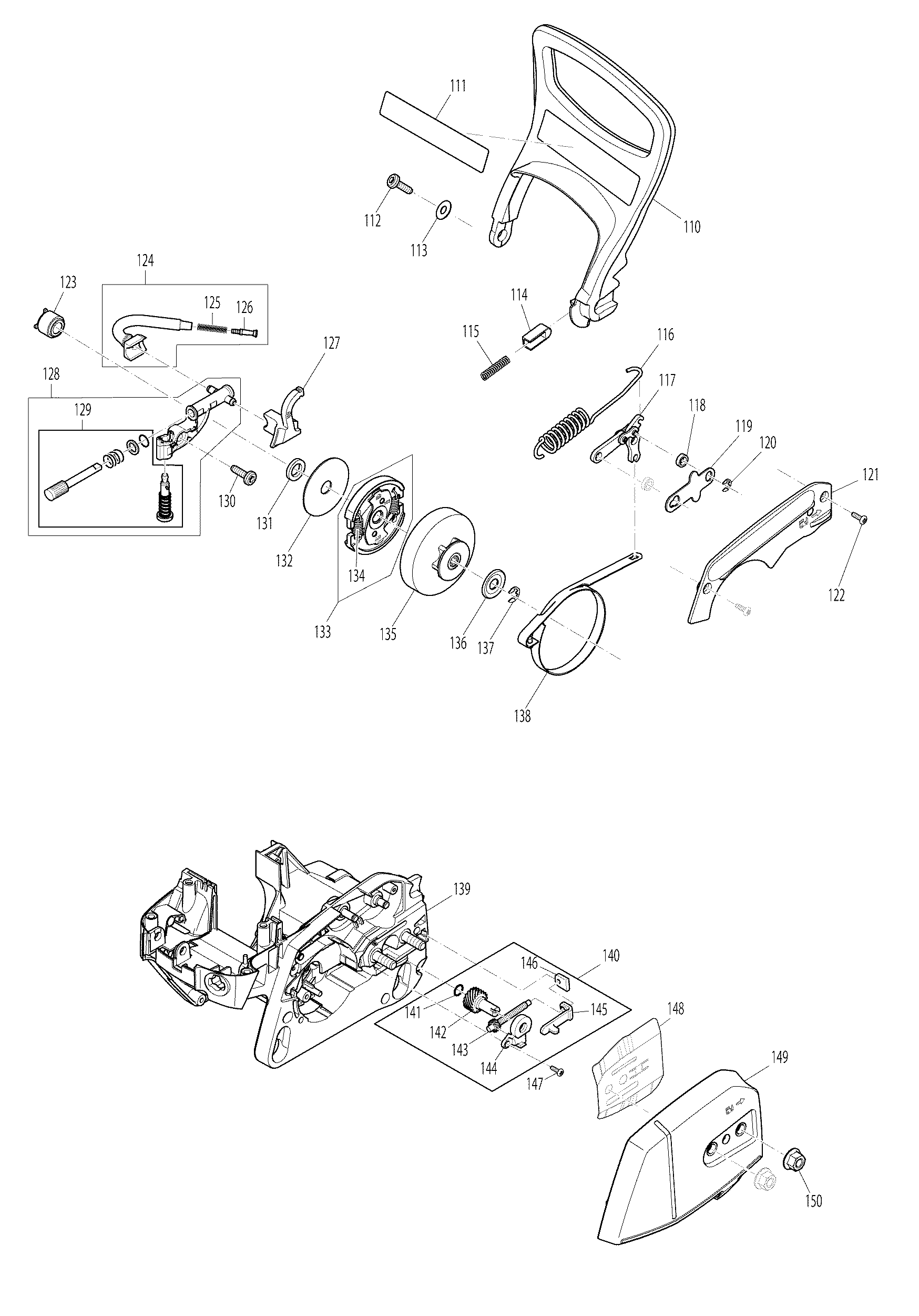

Sheet 5: Makita PS32C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 110 | 452032-7 | Makita 452032-7 Hand Guard EA3200S |
| 111 | 810075-9 | Makita 810075-9 CAUTION LABEL, DCS230T |
| 112 | 266627-8 | Makita 266627-8 H.L.TAPPING SCREW 4.7X16, EA3200S |
| 113 | 267066-5 | Makita 267066-5 FLAT WASHER 5 |
| 114 | 313212-9 | Makita 313212-9 HAND GUARD GUIDE EA3200S |
| 115 | 234210-9 | Makita 234210-9 COMPRESSION SPRING 3, EA3200 |
| 116 | 231868-5 | Makita 231868-5 TENSION SPRING, PS32 |
| 117 | 163500-2 | Makita 163500-2 LINK PLATE COMPLETE, PS-460 |
| 118 | 325947-0 | Makita 325947-0 BUSH 6, PS-32 |
| 119 | 346299-6 | Makita 346299-6 SPACER SHEET METAL, EA3200S |
| 120 | 961011-9 | Makita 961011-9 STOP RING, HR2450 |
| 121 | 452033-5 | Makita 452033-5 BRAKE COVER, EA3200S |
| 122 | 266421-8 | Makita 266421-8 TAPPING SCREW 3*10, HR2810 |
| 123 | 452035-1 | Makita 452035-1 PUMP DRIVE, EA3200S |
| 125 | 234207-8 | Makita 234207-8 COMPRESSION SPRING 6, PS-32 |
| 126 | 452666-6 | Makita 452666-6 NIPPLE, EA3200S |
| 129 | 195872-7 | |
| 130 | 266627-8 | Makita 266627-8 H.L.TAPPING SCREW 4.7X16, EA3200S |
| 131 | 267430-0 | Makita 267430-0 FLAT WASHER 10, EA3200S |
| 132 | 267431-8 | Makita 267431-8 FLAT WASHER 10, EA3200S |
| 134 | 231873-2 | Makita 231873-2 TENSION SPRING 5, EA3200S |
| 135 | 140980-9 | Old code Makita 140980-9 Clutch Drum Assembly |
| 136 | 267451-2 | Makita 267451-2 FLAT WASHER 8 |
| 137 | 259033-4 | Makita 259033-4 Retaining Ring E Type 6, UC3030A |
| 138 | 346298-8 | Makita 346298-8 BRAKE BAND, EA3200S |
| 139 | 140476-0 | Makita 140476-0 ENGINE HOUSING COMPLETE, EA3200S |
| 141 | 213594-8 | Makita 213594-8 O-RING, PS-32 |
| 142 | 227744-9 | Makita 227744-9 HELICAL GEAR 19, EA3200S |
| 143 | 227743-1 | Makita 227743-1 HELICAL GEAR, EA3200S |
| 144 | 452667-4 | Makita 452667-4 GUIDE, EA3200S |
| 145 | 346300-7 | Makita 346300-7 TENSION SLIDE, EA3200S |
| 146 | 452668-2 | Makita 452668-2 GUIDE PLATE, EA3200S |
| 147 | 266421-8 | Makita 266421-8 TAPPING SCREW 3*10, HR2810 |
| 148 | 346518-0 | Makita 346518-0 GUIDE PLATE, EA3200S |
| 149 | 452034-3 | Makita 452034-3 SPROCKET GUARD, EA3200S |
| 150 | 264055-1 | Makita 264055-1 COLLARED HEX.NUT M8 |

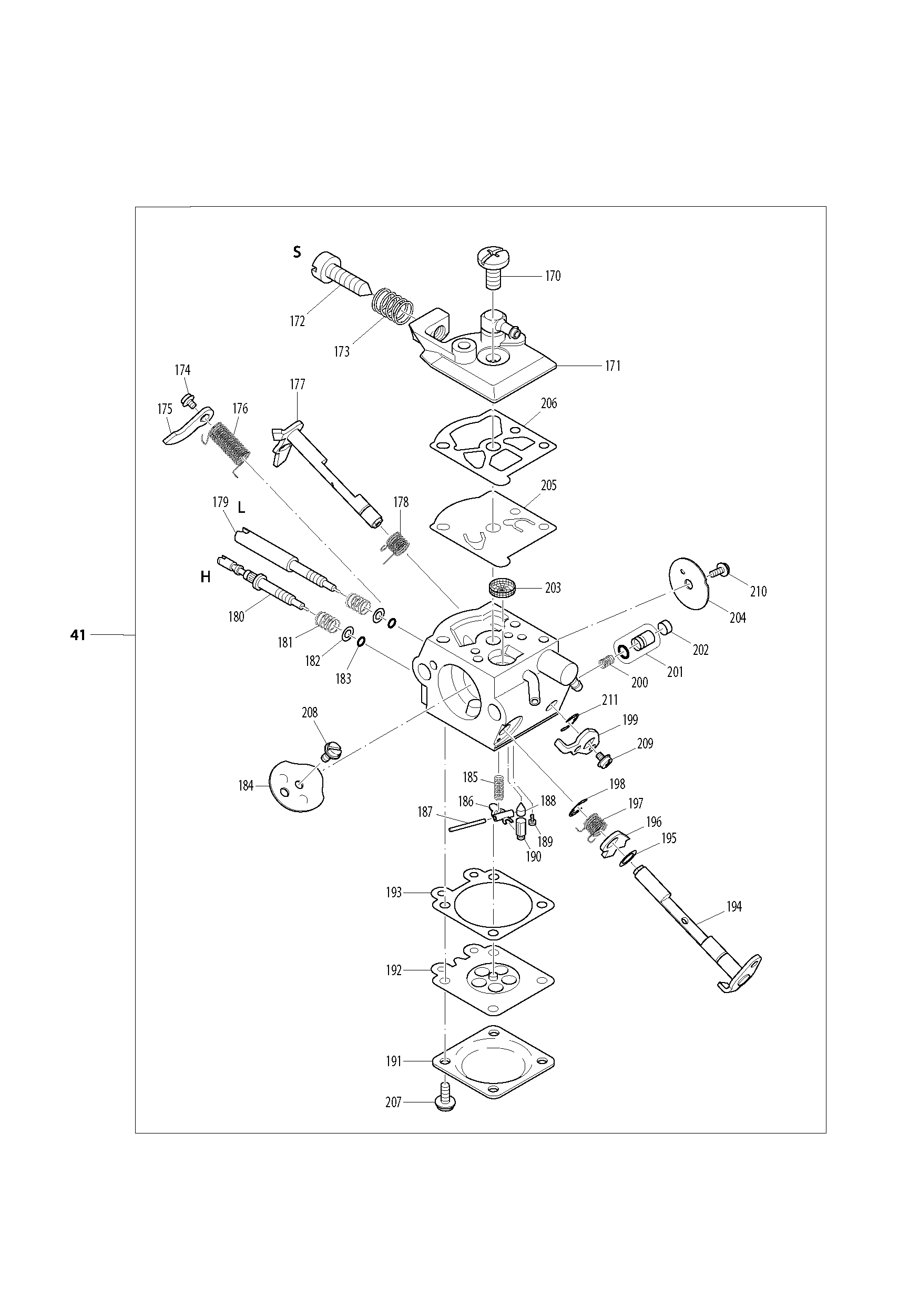

Sheet 6: Makita PS32C parts diagram
| No. | Part number | Part name |
|---|---|---|
| 170 | WJ00096166 | Makita WJ00096166 SCREW FOR EA3200 |
| 171 | WJ00213750 | Makita WJ00213750 COVER ASSEMBLY-PUMP EA3200S |
| 172 | WJ00096369 | Makita WJ00096369 SCREW-IDLE ADJ. EA3200S |
| 173 | WJ00098356 | Makita WJ00098356 SPRING EA3200S |
| 174 | WJ00096475 | Makita WJ00096475 SCREW EA3200S |
| 175 | WJ00183519 | Makita WJ00183519 CHOKELEVER EA3200S |
| 176 | WJ00983585 | Makita WJ00983585 SPRING EA3200S |
| 177 | WJ00223556 | Makita WJ00223556 SHAFT ASSEMBLY-THROTTLE EA3200S |
| 178 | WJ00098494 | Makita WJ00098494 SPRING EA3200S |
| 179 | WJ01023908 | Makita WJ01023908 NEEDLE-IDLE EA3200S |
| 180 | WJ01024001 | Makita WJ01024001 NEEDLE HIGH-SPEED EA3200S |
| 181 | WJ00098404 | Makita WJ00098404 SPRING EA3200S |
| 182 | WJ00136152 | Makita WJ00136152 WASHER EA3200S |
| 183 | WJ00016105 | Makita WJ00016105 O-RING EA3200S |
| 184 | WJ00062150 | Makita WJ00062150 CHOKEVALVE EA3200S |
| 185 | WJ00983270 | Makita WJ00983270 SPRING EA3200S |
| 186 | WJ00166114 | Makita WJ00166114 LEVER-METERING EA3200S |
| 187 | WJ00014477 | Makita WJ00014477 PIN, DCS230T |
| 188 | WJ00008282 | Makita WJ00008282 VALVE, DCS230T |
| 189 | WJ00963226 | Makita WJ00963226 SCREW EA3200S |
| 190 | WJ00088271 | Makita WJ00088271 PLUG-WELCH EA3200S |
| 191 | WJ00021158 | Makita WJ00021158 COVER, DCS230T |
| 192 | WJ00095613 | Makita WJ00095613 DIAPHRAGM METERING, ASSEMBLY EA3200S |
| 193 | WJ00092192 | Makita WJ00092192 GASKET, DCS230T |
| 194 | WJ00223784 | Makita WJ00223784 CHOKESHAFT ASSEMBLY EA3200S |
| 195 | WJ00013690 | Makita WJ00013690 WASHER EA3200S |
| 196 | WJ00016682 | Makita WJ00016682 FAST ILDE LEVER EA3200S |
| 197 | WJ00983584 | Makita WJ00983584 SPRING EA3200S |
| 198 | WJ00001673 | Makita WJ00001673 RETAINING RING EA3200S |
| 199 | WJ00183366 | Makita WJ00183366 THROTTLELEVER EA3200S |
| 200 | WJ00983164 | Makita WJ00983164 SPRING EA3200S |
| 201 | WJ00160511 | Makita WJ00160511 ACCELERATOR ASSEMBLY, PISTON EA3200S |
| 202 | WJ00088229 | Makita WJ00088229 PLUG-CUP EA3200S |
| 203 | WJ00014070 | Makita WJ00014070 INLET SCREEN, DCS230T |
| 204 | WJ00343439 | Makita WJ00343439 THROTTLEVALVE EA3200S |
| 205 | WJ00009589 | Makita WJ00009589 PUMP DIAPHRAGM EA3200S |
| 206 | WJ00092225 | Makita WJ00092225 PUMPGASKET EA3200S |
| 207 | WJ00096589 | Makita WJ00096589 SCREW ASSEMBLY EA3200S |
| 208 | WJ00096475 | Makita WJ00096475 SCREW EA3200S |
| 209 | WJ00096475 | Makita WJ00096475 SCREW EA3200S |
| 210 | WJ00096475 | Makita WJ00096475 SCREW EA3200S |
| 211 | WJ00001673 | Makita WJ00001673 RETAINING RING EA3200S |
