Bosch PS21

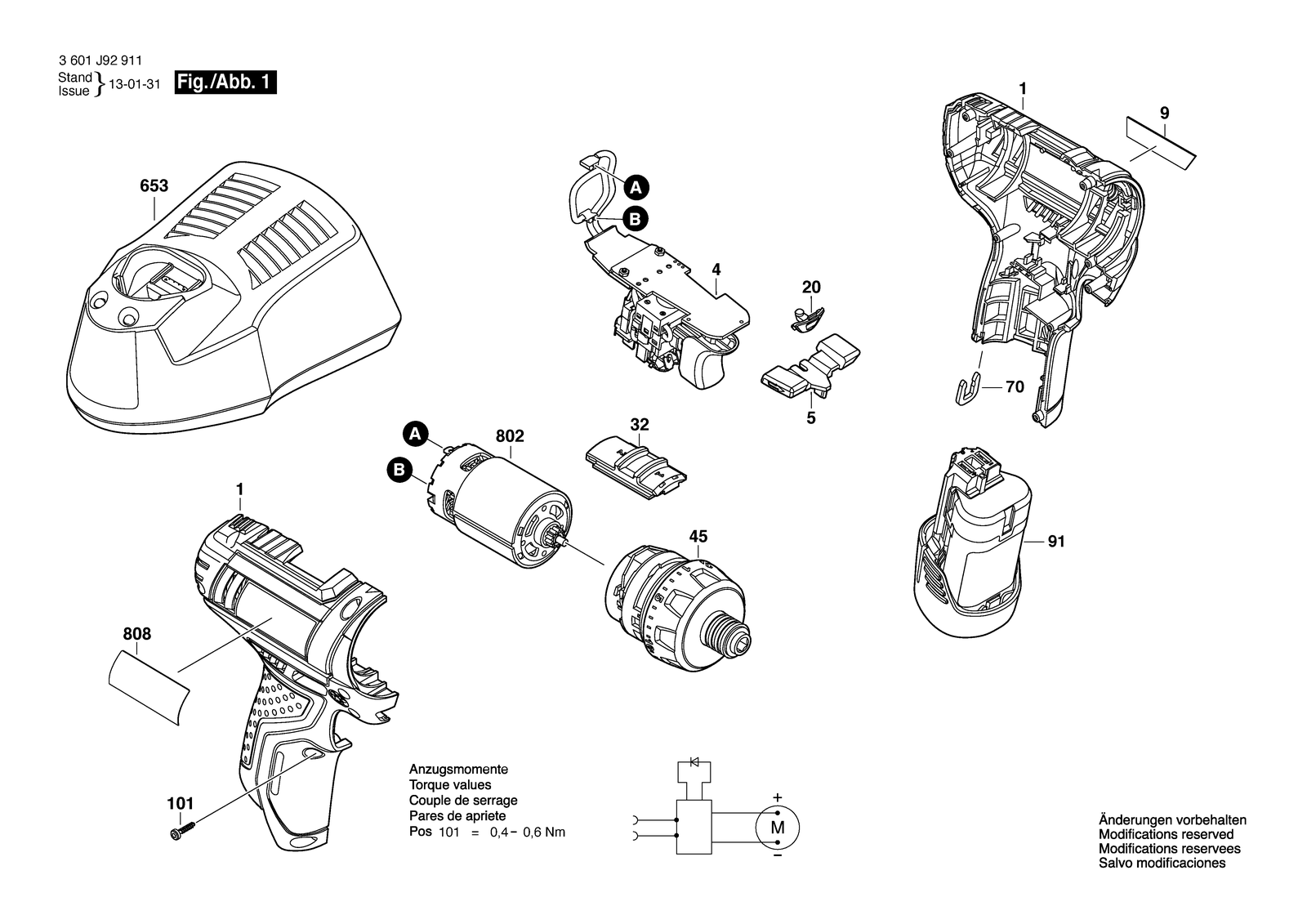

Bosch PS21 cordless screwdriver: exploded parts diagram, 1 sheet, 18 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch PS21: 18 positions on 1 sheet
Bosch PS21 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609100839 | Housing Blue |
| 101 | 2609110883 | Screw |
| 20 | 2609100826 | Lens |
| 32 | 2609199279 | Switchover Unit |
| 4 | 1607233488 | Electronics Module |
| 45 | 2606200259 | Gear Box |
| 5 | 2609100825 | Changeover Lever |
| 653 | 2607225139 | Fast Charger Usa/can 120/10,8-12V/30 Min. |
| 653 | 2607225519 | Fast Charger USA 120/3,6-10,8V,1H |
| 70 | 2609110537 | Clip |
| 802 | 2609199258 | DC motor 10,8V - 12V |
| 802 | 2610014489 | DC motor |
| 808 | 160111A6U9 | Nameplate |
| 808 | 2610014462 | Type Label |
| 9 | 2609132529 | Nameplate Lithium-Lon 12V |
| 9 | 2610007737 | Nameplate |
| 91 | 1607A350C8 | Battery Pack BAT 414 10,8/12V 2,0AH |
| 91 | 2607337237 | Battery Pack BAT 415 10,8V712V 2,5AH |
